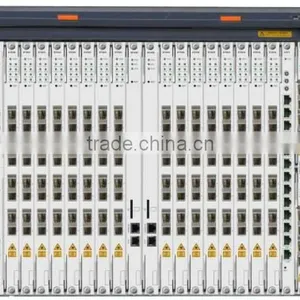

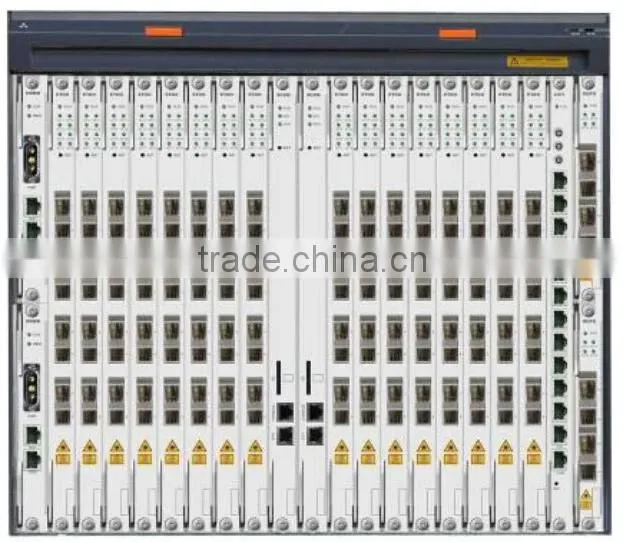

Fiberhome OLT FTTH GPON OLT GDOLT2000L--G High Density Multicast OLT
Overviews
GDOLT2000 is geared to the needs of the next generation optical access, large capacity, high density, convergent full-service optical access platform and supports GPON, EPON access and smooth upgrade to the XG - PON1 and TWDM - PON technology.
XPON system provides abundant xPON terminal, including SFU, SBU, CBU, MDU, MTU, and various types of outdoor terminal.XPON terminals provide 10/100M, 10/100/1000 M, WLAN, RF port, fully meeting the requirements of FTTx network and business access.
Features
l PON ports support downstream and upstream FEC
l Support measurement and diagnosis for optical link parameters
l GPON transmission control layer: single PON port supports 4 K GEMPORT and 1 K T - CONT.Support the NSR DBA and SR DBA;Based on the ITU - T G. 984.3- the ONU auto discovery and manual configuration;Based on ITU-TG. 984.4 and ITU-TG. 988 OMCI protocol stack;Support the the alarm and performance monitoring of ITU-TG.984.3 and ITU-TG.984.4
l VLAN management: create, delete, query VLAN information.VLAN processing and business model are in accordance with the TR - 156, TR - 101 specification requirements. Meet the standarded IEEE 802.1ad VLAN Stacking functions.Support Selective QinQ function .
l Layer two multicast: support IGMP (Internet Group Management Protocol) v1 / v2, v3;Support IGMP Snooping/Proxy, MVR management;Support MLD (Multicast Listener Discovery) v1;Support MLD Snooping/Proxy;The layer two ACL.Based on the purpose/source MAC address, physical ports, Ethernet type, 802.1Q, 802.1P ACL flow classification.
l The user location: support DHCP Option82/18, and PPPoE+.Support flexible configuration and customization development.

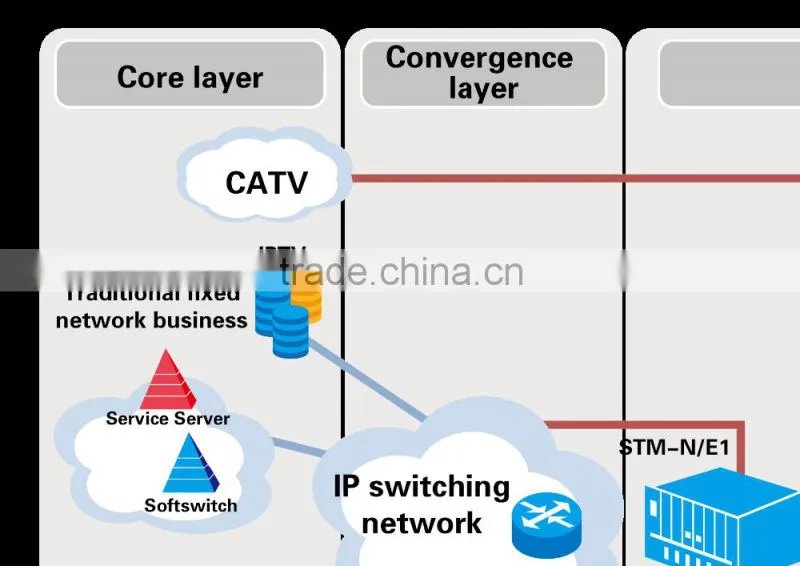

Diagram
xPON system includes:OLT,splitter,ONU and network management system.Networking model is as follow:
Technical parameters
|
Item |
parameter |
GPON |
PON port |
|
Forward rate |
2.488Gbit/s |
|
Power loss |
28dBm(class B+),32dBm(class C+) |
|
Wavelength |
Farward: 1490nm,Return:1310nm, Other CATV:1550nm |
|
Protected mode |
Type B,Type C,redundancy backup |
|
ODN | ||
Single PON port support terminal amount |
128 |
|
Distance(max) |
60KM |
|
Difference distance-loss (Max) |
20KM |
|
GPON Transmission Control Layer | ||
Forward data encryption mode |
AES-128 |
|
MAC address management |
Add, delete, query static address, learning, remove and query the dynamic address;MAC address aging time Settings; Maximum 256 k capacity table of MAC address |
|
Ethernet |
VLAN management |
|
Protocol |
IEEE 802.1Q |
|
VLAN amount |
4000 |
|
VLAN ID range |
1~4094 |
|
STP |
STP/RSTP/MSTP protocol |
|
Link aggregation |
Static link aggregation and LACP protocol |
|
Working voltage |
DC Working voltage |
|
Rated voltage |
-48V(DC) and -60V(DC) |
|
Range |
-48 V±20%,-60V±20% |
|
