| Brief introduction: | Model Number: | MF/HF RADIO | |||||||
| Application Area: | For marine | ||||||||
| Certificate: | ZY, meet with standard of IEC-61097-9 | ||||||||
| Function: |
SSB voice; A single press of button to initiate distress alarm; Six standards of DSC simultaneous on duty; Supporting graphical display of meteorological early warning information; 299 user channels; ITU channel preset; Frequency scanning; Built-in GPS; Desk-top or embedded installation |
||||||||
| Feature: | 1. Convenient operation, stable and reliable performance. | ||||||||
| 2. Improved maritime rescue capability with six standards DSC simultaneously on duty. | |||||||||
| 3. Improved communication reliability with simultaneous standby of six routine standards DSC | |||||||||
| 4. Function and specification upgrading by softwaren> | |||||||||
| 5. Supporting prevailing automatic antenna tuning unit | |||||||||
| Specification | 1. Main Unit : | ||||||||
| Operating frequency range: 1.6MHz~ 30MHz (transmission), 0.5MHz~ 30MHz (receiving) | |||||||||
| Frequency stability: ±10Hz | |||||||||
| Modulation type: SSB, DSC, AMeiving) | |||||||||
| Operating temperature range: -15℃~ 55℃ | |||||||||
| Storage temperature: -50℃~ 70℃ | |||||||||
| Power requirement: 13.8V DC±15% | |||||||||
| Power consumption: RX: <1.5A;TX: <30A (Max) Dimensions: 285mm x 115mm x 335mm | |||||||||

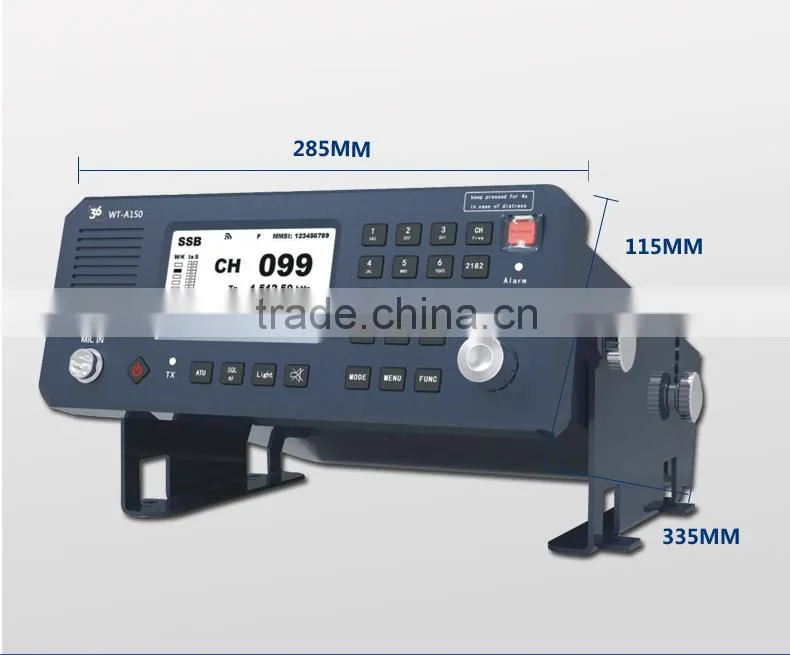

| Dimensions: 285mm x 115mm x 335mm/Weight: <8kg | |||||||||
| External interface: RS-232, USB1.0 ) | |||||||||
| 2.Receiver | |||||||||
| Sensitivity:≤11dBuV(SINAD=20dB) | |||||||||
| Selectivity:3k/-3dB, 3.8k/-60dBl> ) | |||||||||
| Audio Output Power: 2W/8Ω | |||||||||
| Audio Frequency Response: 300Hz~3000Hz, <= 1dB | |||||||||
| 3.TRANSMITTER | |||||||||
| Output power: 150W/100W/50W | |||||||||
| Sideband suppression: ≤-60dBc | |||||||||
| Carrier suppression: ≤-60dBc | |||||||||
| Clutter suppression: ≤-60dBc IP3: ≤-25dBc | |||||||||
|
|
|
|
Ningbo Maritime Electronics Co., LTD is a wholly owned enterprise by China Electronics Technology Group Corporation with a registered capital of RMB 30 million. We are professional for innovation and development of high-tech ship-borne (marine engineering) electronics, including maritime communication and navigation products. Moreover, we possess powerful capabilities of research, development, design, manufacturing, sales and services.
Our products consist of two series. One is radio communication and navigation device, including all the electronics information devices for ships, which key units are GMDSS, AIS, ECDIS and Navigation radar. The other is navigation-control equipments, just like unmanned surface vessel (USV), main engine remote control system, autopilot stand, etc. And now we possess 12 patents and some professional certifications, just like CCS, Cospas.
With professional design, high quality, good service and competitive price, our products are popular at domestic and abroad markets. Looking forward to cooperate with you!
Q: Where is your factory located? How can I visit it?
A: Our Head-office is in Ningbo and our Production line is located in Jiaxing. Ningbo of Zhejiang, 30 Minutes by car from Ningbo Airport,and Jiaxing of Zhejiang,30Minutes by high-speed train from Shanghai.
Q: How can I get the sample?
A:Samples could be sent within 3-5 days if there is in stock.Generally,sample is not free.
Q: What's the lead time?
A:If we have stocks of the item you need,we can send goods to you within 3-5 working days after 100% payment into our bank account.If we don’t have enough stocks,different products will take different days.Generally,it need around 30-35 days.
Q: How does your factory control product quality?
A: ISO9001 Certificated, independent quality control team with inspectors in our factory.
Q: Do you provide ODM/OEM service?
A: OEM/ODM is welcome, there are around 30 persons in our R&D team, and customized colours are optional. From the concept to finished goods, we do all (design, prototype reviewing, tooling and production) in the factory.
Q: What is your Minimum Order Quantity?
A: We sell you at least 10pcs for each item in normal order, but we also accept the sample order.
Q: What’s about shipping?
A: Small order can be shipped by air and large quantities can shipped by sea, no matter your assigned agent or ours, Our best advantage is that we’re located in Ningbo,which is China’s best harbor port!
Q: What’s your agency/distributor policy?
A: We have too many different policies according to target markets,so please send email for detailed discussion or talk face to face.
