In-wall Pneumatic Concealed Cistern for Wall Hung Toilet
1. Three flushes, can be adjusted to 3/4.5°3/6°4/7 litresthe structure and capability of cistern conforms to EN14055 standard.
2. The inlet valve with low noise design, conforms to the EN14124 standard.
3. Pneumatic flush valve and push button, multi-directional installation for push button, convenient for flexible design of cabinets.

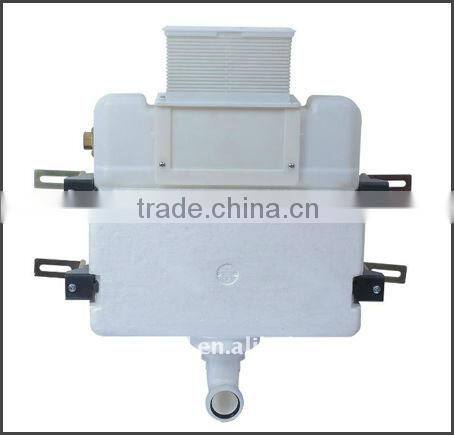

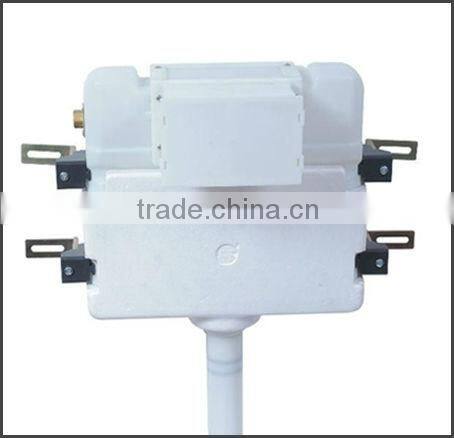

4. Tank is made of HDPE by blow moulding with high strength and anti-aging capability. With high intensity of EPS insulation shell bonded to the exterior of cistern to prevent the formation of water condensation.
5. The angle valve is available for closing down the water head while maintenance.
6. The direction of cistern cover can be switched between top and front, and the maintenance access can be achieved by removing the top or front panel.
7. Gap on top right shoulder of tank is appropriately designed to give enough space for use of button installed at front right position.
8. Flush bend is made of PP by blow moulding with smooth and fast flushing. Rubber sealing connector is available.

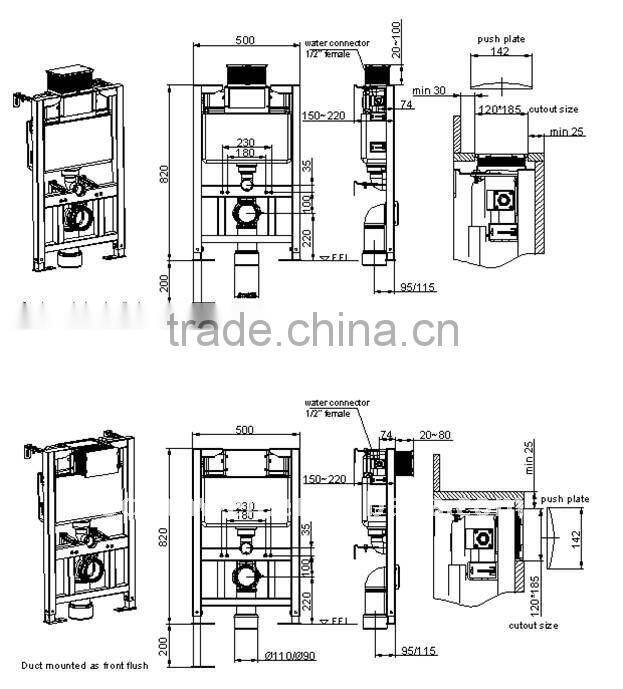

Front installation of control plate:
Top installation of control plate:
With frame:
Control Plate Options
- A professional team of R&D, now we have got more than 100 patents of our products and won the award of high-tech enterprise from the government
- Our own tooling factory, it is responsible for development and maintenance of molds, which ensures a good timing, top quality for new product development as well as a steady production run
- Rich experience in supplying famous brands such as Sanitec, Toto, Vitra, Caroma, American/Ideal Standard, Kohler, WISA and more
- Working as a pure OEM factory for our clients.
- Working together with our clients on developing new projects our products.
- Independently developing new products for our clients to select.
