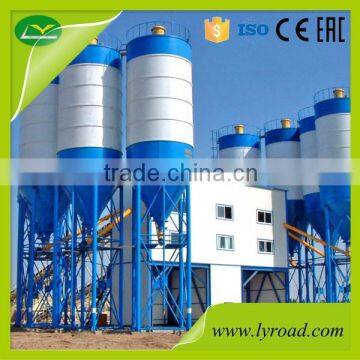

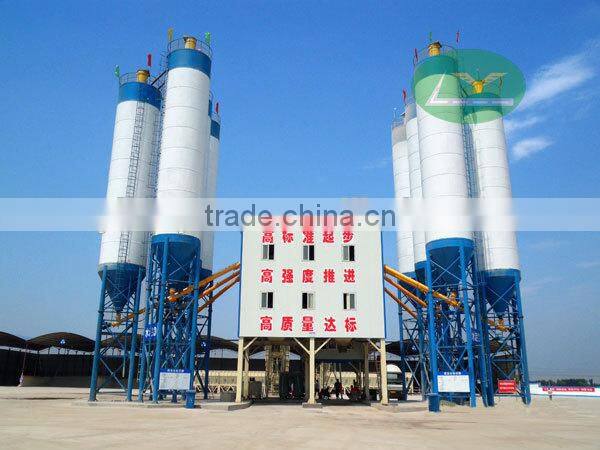

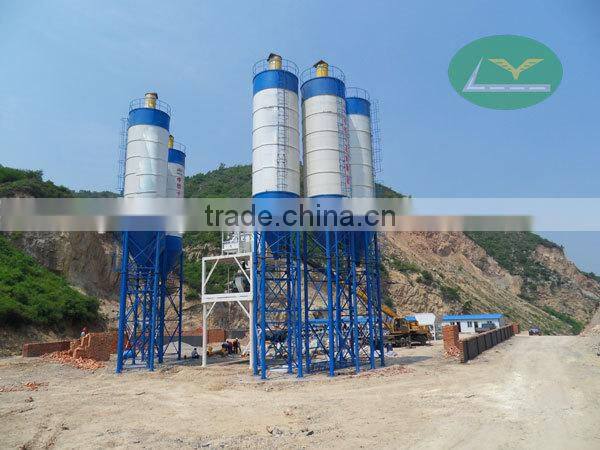

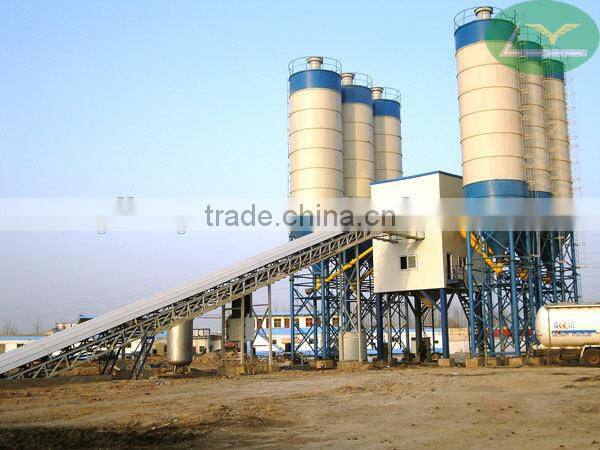

HZS series belt conveyor concrete mixing plant, on the basis of the combination advantages from various foreign mixing building and station and advanced technology, has been developed and produced.
It adopts modular structure design, which maintains convenient installation and removal, safe, comfortable and reliable operation, with good mixing effect and high efficiency.
Besides, the HZS series belt conveyor concrete mixing plant adopts PLC automatic logical program control and host computer all-time tracking management, with safe and reliable operation and more facilitate maintenance.
The HZS series belt conveyor concrete mixing plant is the optimal equipment of large and medium construction sites, water power, highway, harbor, bridge, airport, large precast products plant and commercial concrete plants and so on.
| Entire Plant | Model | HZS60 | HZS90 | HZS120 | HZS150 |
| Capacity (m3/h) | 60 | 90 | 120 | 150 | |
| Standard Discharging Height (mm) | 3800 | 3800 | 4000 | 4000 | |
| Operation Cycle Time (s) | 60 | 60 | 60 | 60 | |
| Max Aggregate Size (mm) | 60/80 | 60/80 | 60/80 | 60/80 | |
| Total Installed Power(kW) | 105 | 145 | 210 | 260 | |
| Total Weight (T) | 50 | 60 | 80 | 100 | |
|
Size (m) (L×W×H) |
28.5×10.6×18.8 | 58.6×12.4×18.8 | 60.2×13.7×18.8 | 43.6×24.0×18.8 | |
| Mixing System | Mixer | JS1000 | JS1500 | JS2000 | JS3000 |
| Mixing Motor (kw) | 2×18.5 | 2×30 | 2×37 | 2×55 | |
| Batching System | Batching Machine | PLD1600 | PLD2400 | PLD3200 | PLD4800 |
| Capacity of Storage Hopper (m3) | 4×5 | 4×10 | 4×18 | 4×25 | |
| Weight System | Aggregate Weighing Precision (%) | ±2 | ±2 | ±2 | ±2 |
| Cement Weighing Precision (%) | ±1 | ±1 | ±1 | ±1 | |
| Water Weighing Precision (%) | ±1 | ±1 | ±1 | ±1 | |
| Additive weighing Precision (%) | ±1 | ±1 | ±1 | ±1 |
Driving system adopts planetary gear, the gimbals transmission shaft insures circumgyrate at the same speed.
Mixing system choose the spiral mixing system , which has high efficiency , scale board and mixing blades adopts high-rigidity and high tenacity wearable case alloy steel, to prolong the working life.
Aggregate lifting appliance adopts frequency control, thus providing smooth and reliable operation.
Lubrication system adopts advanced centralized oil lubricating system, convenient for oil supplying, this system is equipped with overvoltage warning and low oil level warning, safe and reliable.
PC + PLC control system ensures the high reliability.
With its virtue of precise computation, it can meet the requirement of every high performance concrete.
Human-based intelligent control facilitates the operation greatly.
Structural members are durable, and most electric elements adopt world famous brands.
