NUP1052cylindrical Roller Bearing Size

NUP1052cylindrical Roller Bearing Size thumbnail-1
NUP1052cylindrical Roller Bearing Size photo-1
US$ 0.1 - 100 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
OEMor hry
Bore Size:
260,
Outside Diameter:
400,
Contact Supplier Request Quote Chat Now
Wuxi Hangruiyu Bearing Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name OEMor hry
Bore Size 260,
Outside Diameter 400,
Model Number NUP1052
Precision Rating P0 P6 P5 P4 P2
Seals Type Open
Number of Row Double Row
Place of Origin Jiangsu, China
Product Description

HRY  cylindrical roller bearing                        NU1026M/C2126

1. Cylindrical roller bearings feature high radial load because the rollers and raceway are in linear contact

2. The NU and N types exhibit their best performance when used as free side bearings since they adjust to the shaft axial movement, to a certain extent, relative to the housing position

3. The NJ and NF types carry a certain degree of axial displacement in both directions so they are also used as free side bearings

4. Models available: NU, NG, NUP, N, NF, NH, NNU, NIV

5. Moreover, we can manufacture these bearings according to customer's drawings and samples.

cylindrical roller bearings with cage are units comprising solid inner and outer rings together with cylindrical roller and cage assemblies. The outer rings have rigid ribs on both sides or no ribs, the inner rings have one or two rigid ribs or are designed without ribs. The cage prevents the cylindrical rollers from coming into contact with each other during rolling.

The cage type bearings are very rigid, can support high radial loads and, due to the cage, are suitable for higher speeds than the full complement designs. Bearings with the suffix E have a higher capacity roller set and are thus designed for very high load carrying capacity.

 Single row cylindrical roller bearings as for the ring ribs divided into N-type,NU type,NJ and NUP type and so on.Cylindrical roller bearings withstand heavily capacity of the radial load.But according to the structure of ring ribs can also be under some one-way or two-way axial load.

 NN and NNU type double row cylindrical roller bearings are compact structure,which with strong rigidity and bears load capacity.Even if it has bear heavily load ,its deformation is small.It mostly used for machine tool spindle bearing.

 FC,FCD,FDCP-type four-row cylindrical roller bearings can bear greater radial load,mostly using for rolling mill and other heavy machinery.





Bearing No. Dimensions(mm)
SUMA STANDARD d D B
NN3005K 3182105 25 47 12
NN3006K 3182106 30 55 19
NN3007K 3182107 35 62 26
NN3008K 3182108 40 68 21
NN3009K 3182109 45 75 23
NN3010K 3182110 50 80 23
NN3011K 3182111 55 90 26
NN3012K 3182112 60 95 26
NN3013K 3182113 65 100 26
NN3014K 3182114 70 110 30
NN3015K 3182115 75 115 30
NN3016K 3182116 80 125 34
NN3017K 3182117 85 130 34
NN3018K 3182118 90 140 37
NN3019K 3182119 95 145 37
NN3020K 3182120 100 150 37
NN3021K 3182121 105 160 41
NN3022K 3182122 110 170 45
NN3024K 3182124 120 180 46
NN3026K 3182126 130 220 52
NN3028K 3182128 140 210 53
NU1004M 32104H 20 42 12
NU1005M 32105H 25 47 12
NU1006M 32106H 30 55 13
NU1010M 32110H 80 50 16
NU1011M 32111H 55 90 18
N1012M 2112H 60 95 18
NJ1012M 42112H 60 95 18
N1018M 2118H 90 140 24
NU1018M 32118H 90 140 24
NJ1018M 42118H 90 140 24
N1019M 2119H 95 145 24
NU1019M 32119H 95 145 24
NJ1019M 42119H 95 145 24
N1020M 2120H 100 150 24
NU1020M 32120H 100 150 24
NJ1020M 42120H 100 150 24
N1022M 2122H 110 170 28
NU1022M 32122H 110 170 28
MJ1022M 42122H 110 170 28
N1024M 2124H 120 180 28
NJ1024M 42124H 120 180 28
NU1024M 32124H 120 180 28
N1026M D2126 130 200 33
NU1026M C2126 130 200 33
NU1030M 32130H 150 225 35
NJ1030M 42130H 150 225 35
NU1030Q1/YHA6   150 225 35
RNU1030M 292130 69.5 225 35
NU1032M 32132H 160 240 38
NU1034M 32134H 170 260 42
NJ1034M 42134H 170 260 42
NU1036M 32136H 180 280 46
RNU1036M 292136H/7002136 180 280 46
NU1038M 32138H 190 290 46
NU1040M 32140H 200 310 51
NNF5004-2LSNVY SL045004PPX 20 42 30
NNF5005-2LSNVY SL045005PPX 25 47 30
NNF5006-2LSNVY SL045006PPX 30 55 34
NNF5007-2LSNVY SL045007PPX 35 62 36
NNF5008-2LSNVY SL045008PPX 40 68 38
NNF5009-2LSNVY SL045009PPX 45 75 40
NNF5010-2LSNVY SL045010PPX 50 80 40
NNF5011-2LSNVY SL045011PPX 55 90 46
NNF5012-2LSNVY SL045012PPX 60 95 46
NNF5013-2LSNVY SL045013PPX 65 100 46
NNF5014-2LSNVY SL045014PPX 70 110 54
NNF5015-2LSNVY SL045015PPX 75 115 54
NNF5016-2LSNVY SL045016PPX 80 125 60
NNF5017-2LSNVY SL045017PPX 85 130 60
NNF5018-2LSNVY SL045018PPX 90 140 67
NNF5019-2LSNVY SL045019PPX 95 145 67
NNF5020-2LSNVY SL045020PPX 100 150 67
NNF5022-2LSNVY SL045022PPX 110 170 80
NNF5024-2LSNVY SL045024PPX 120 180 80
NNF5026-2LSNVY SL045026PPX 130 200 95
NNF5028-2LSNVY SL045028PPX 140 210 95
NNF5030-2LSNVY SL045030PPX 150 225 100
NNF5032-2LSNVY SL045032PPX 160 240 109
NNF5034-2LSNVY SL045034PPX 170 260 122
NNF5036-2LSNVY SL045036PPX 180 280 136
NNF5038-2LSNVY SL045038PPX 190 290 136
NNF5040-2LSNVY SL045040PPX 200 310 150
NNF5044-2LSNVY SL045044PPX 220 340 160
NNF5048-2LSNVY SL045048PPX 240 360 160

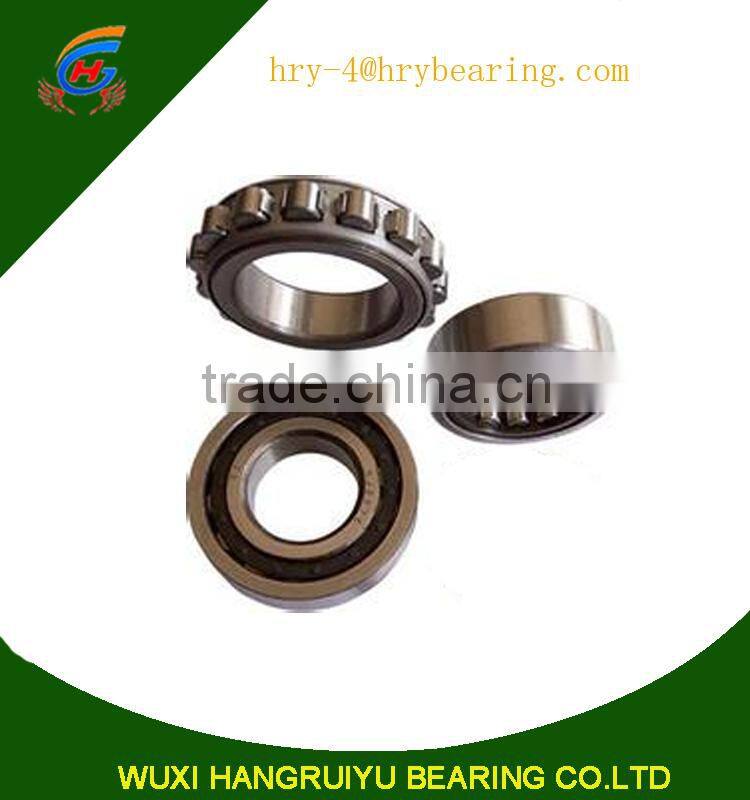

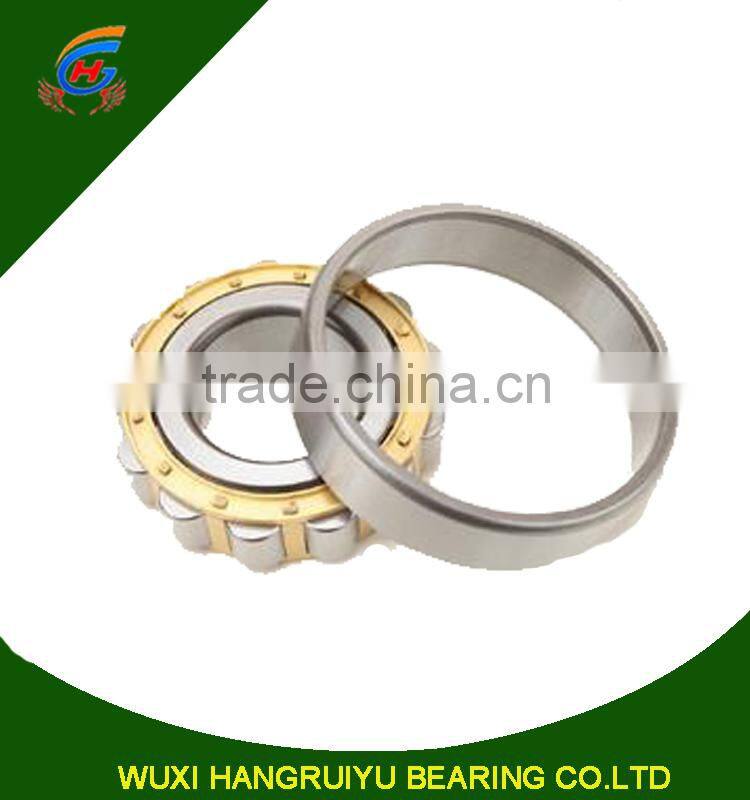

NUP1052cylindrical roller bearing sizeNUP1052cylindrical roller bearing size

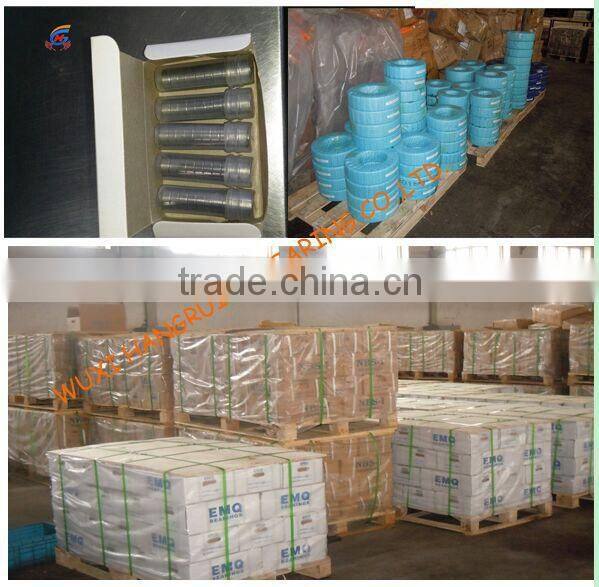

Packaging & Shipping

Package :

a.barreled package / outer carton / pallets

b.single box /outer carton/ pallets

c.tube package/ middle box / outer carton / pallets

d. according to your requirement









Shipping : By Air / By Sea /By Express

a. For small weight or Urgent, goods will be delivery by Express DHL/FedEX/UPS/TNT/EMS

b. For max production,goods will be shipped by sea/by air.

c. According to your requirements





Our Services

1. Customer service:



Any questions to be sent will get response within 24 hours.



2. After-sales service:



Before shipment ,products will be strictly inspection on our factory QC Process System.Just in case,there is abnormal.Please contact us at first time, Customer Complaint handling procedure will be boot at once.Implementation of the scheme will be come out within 48 hours.We will negotiate with customer to find a reasonable way to resolve and compensate.


Company Information

Wuxi Hangruiyu Bearing Co.Ltd is an integrated enterprise in production and trade. Our factory was founded in 2002, which located in Industrial Zone in Linqing city,Shandong province.



To satisfy the market demand, our company established international trade department in Wuxi city, Jiangsu Province,on March,2013.



“Customer satisfaction,quality utmost,premium reputation”is our tenet.We always adhere to taking international and domestic market as guide, the science management as basis and the technology as a breakthrough. We take the customer demand as our company’s eternal goal and are dedicated provide the best products and service for our new and old customers.



FAQ

1.Could you accept OEM and customize?

YES, we can customize for you according to sample or drawing.



2.Could you supply sample for free?

Yes, we can supply sample for free, but need our customer afford freight.



3.Does your factory have CE?

Yes, we have ISO 9001:2008, and SASO. If you want other CE, we can do for you.



4.Is it your company is factory or Trade Company?

We have our own factory; our type is factory + trade.



5.What time the guarantee of your bearing quality guarantee period?

1year! Customer need supply photos and send bearing back.



6.Could you tell me the material of your bearing?

We have chrome steel, carbon steel, and stainless steel, ceramic and plastic material.



7. Could you tell me the packing of your goods?

Single plastic bag then put in single box, and then put in carton or wooden case, at last packing in pallet.



8.Could you supply door to door service?

Yes, by air and by express (DHL, FEDEX, TNT, EMS, SF 7-10 days to your city.)



9.Could you tell me the payment term of your company can accept?

T/T, Western Union, PayPal, T/T, L/C



10.Could you tell me the delivery time of your goods?

3-7 days stock goods and other goods according to the quantity about 3-30 days.
