120 Ton per Hour Hot Mix Asphalt Plant With CE Gost-R Certificate LB1500

FOB Price

US$ 305,000 - 335,000 / Set

1 Set(Min. Order)

Port Tianjin Qingdao Shanghai Guangzhou Port
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	LIAOYUAN asphalt plant asphalt mixer	Model Number	LB1500 asphlt batch plant 120ton per hour
Voltage	220v/380v,50Hz	Power(W)	256kw asphalt batch plant 120t/h
Dimension(LWH)	43m32m18m	Weight	130t-180t asphalt plant
Certification	ISO, CE, GOST-R CERTIFICATE	Warranty	12 months after the plant erection and commissioning
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

LB series hot mix asphalt plant, best price of asphalt mixing plant

Product Description

LB series Asphalt Mixing Plant is one of the most popular products of Liaoyuan for the high efficiency and excellent quality

Technical Parameters of Asphalt Mixing Plant (LB Series):

Model	Plant Capacity (standard conditions)	Mixer Capacity	Consumption		Measurement Accuracy
Model	Plant Capacity (standard conditions)	Mixer Capacity	Fuel Oil	Fuel Coal	Measurement Accuracy
LB500	40 t/h	500 kg	5.5-7 kg/t	10kg/t	Aggregate: ±0.5% Powder: ±0.5% Asphalt: ±0.25%
LB800	64 t/h	800 kg	5.5-7 kg/t	10kg/t
LB1000	80 t/h	1000 kg	5.5-7 kg/t	10kg/t
LB1200	100 t/h	1200 kg	5.5-7 kg/t	10kg/t
LB1500	120 t/h	1500 kg	5.5-7 kg/t	10kg/t
LB2000	160 t/h	2000 kg	5.5-7 kg/t	10kg/t
LB2500	200 t/h	2500 kg	5.5-7 kg/t	10kg/t
LB3000	240 t/h	3000 kg	5.5-7 kg/t	10kg/t
LB4000	320 t/h	4000 kg	5.5-7 kg/t	10kg/t
LB5000	400 t/h	5000 kg	5.5-7 kg/t	10kg/t

Asphalt Mixing Plant mainly including cold aggregate supply system, Drying drum .Burning system, Dust collection system, Vibrating screen, Mixing system, Electric control system

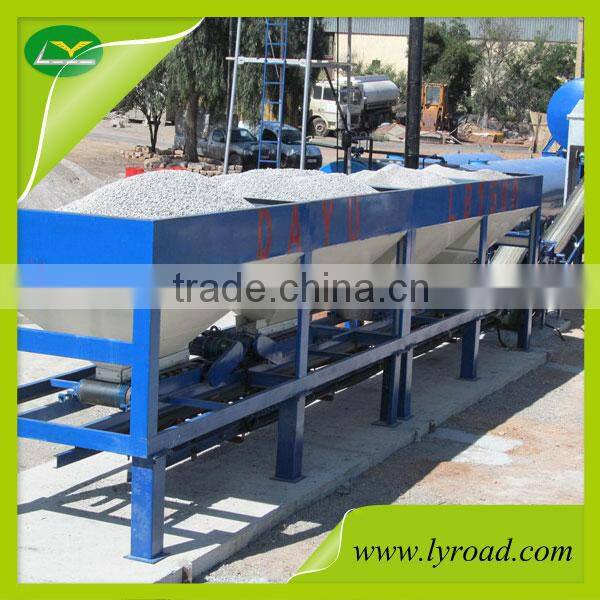

Cold aggregate feed system

1:Aggregate bin volume and number is customizable

2: Separated structure design significantly reduces dimensions for shipping and ensures a high capacity.

3:Seamless ring belt ,high reliability and long life.

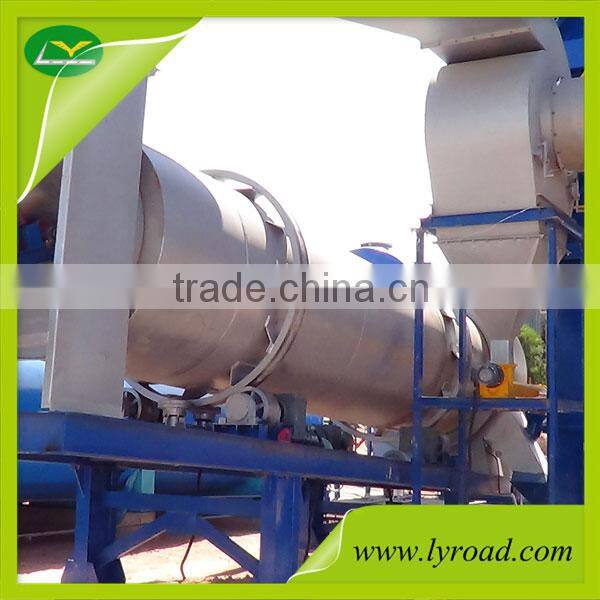

Drying drum

1. Outside the drying drum is covered with a 50mm heat preservation structure,
2.Professional designed lifting blades inside the drum, which can promote thermal efficiency.
3.Temperature detecting device is equipment beside the outlet of the drum

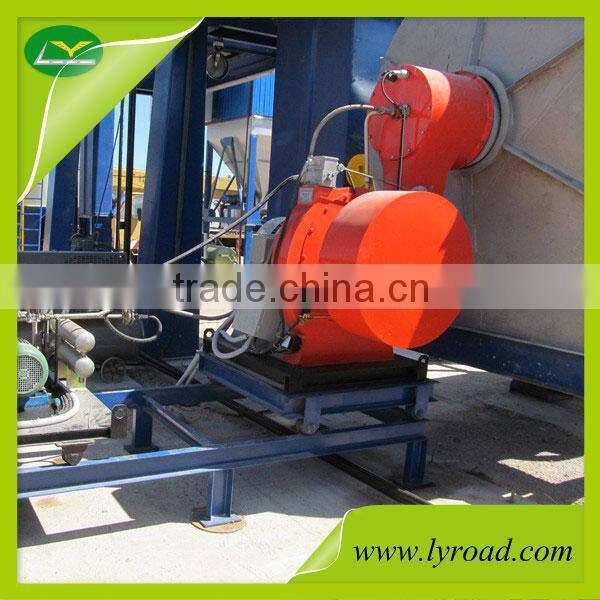

Burner(diesel& heavy oil/natural gas/coal burner for optional)

1:Italy EBICO burner imported with original packing ,high burning efficiency, diesel/heavy oil dual purpose or gas as fuel is optional,

2:With automatic flame failure protection devices for emergency

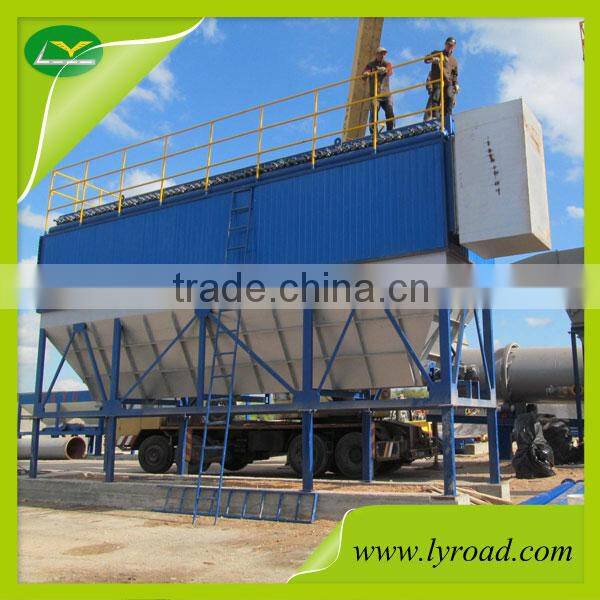

Dust collection system:

1: Two grade dust collection system (volute casing collector + bag house collector),with high and low temperature protection device for system security.

2:Bag house collector using USA DuPont NEMEX bags, heat resisting and long life.

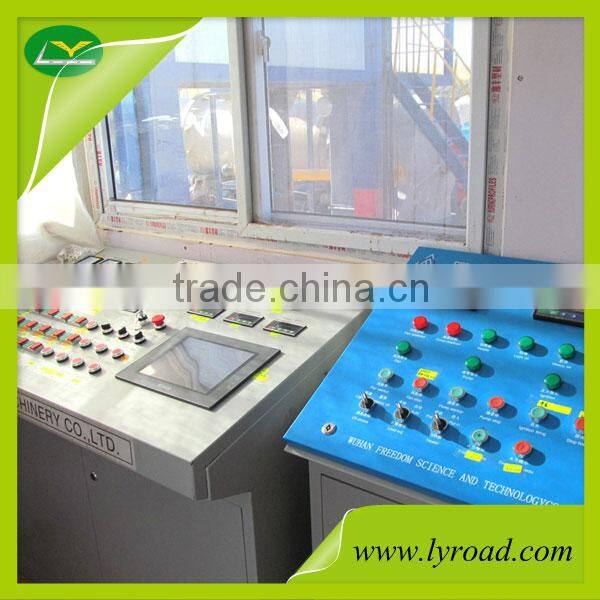

Control system

1:SIEMENS PLC electrical control system ,reliability is high.

2:Fully graphic Multi-language control interface is easy and convenient for different country operators.

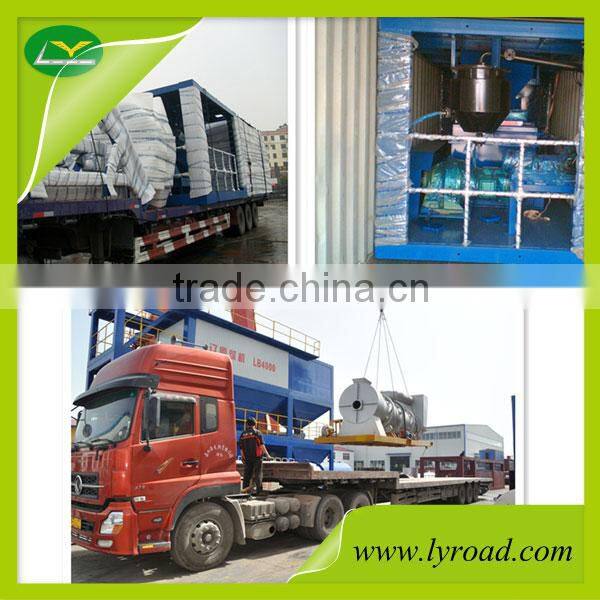

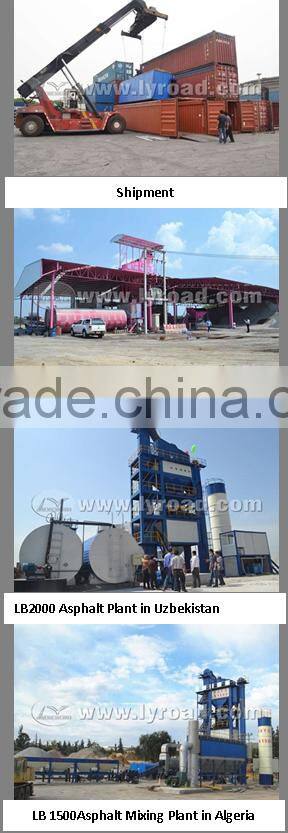

Packaging & Shipping

Standard package suit for international sea transportation, train transportation or truck transportation;
the plant needs 13 sets of 40HQ containers by shipping.

Our Services

Our service including:

18 months warranty; Erecting the plant; Commissioning the plant; Training the operator; Providing of spare parts; whole life’s technical consultant of the plant.

Over Sea Offices

1. Office in Philippines:

Add: 104 c3 Road Corner 6th street, Caloocan city, Philippines.
2. Office in Algeria:
Add: 09-Bekhti miloud Remchi, Tlemcen13300 Algeria.

3. Office in Sri lankan:

Add: 507/a/07, Maharagama Road, Hokandara, Nr. Sri lanka.
(More information please contact us freely.)

Company Information

About us:

Liaoyuan Company are one of China Top-ranking asphalt plant manufacturer which is started from 1992, until now we have sold more than 300 sets of asphalt plants(capacity from 20t/h to 400t/h) distributed in China an overseas markets. such as Poland, Rumania, Russia, Australia, New Zealand, Canada, Panama, Ecuador, Peru, Chile, Algeria, Kenya, South Africa, Zimbabwe, Philippines, Indonesia, Kazakhstan, Mongolia, Egypt, etc. and our products has awarded the CE,Gost-R and ISO Quality Certificate.

The main products scope of Liaoyuan includes:

1. Stable type hot mix asphalt plant: 40-400ton per hour;

2. Mobile type asphalt drum plant: 20-80ton per hour;

3. Mobile stabilized soil mixing plant:200-800 ton per hour.

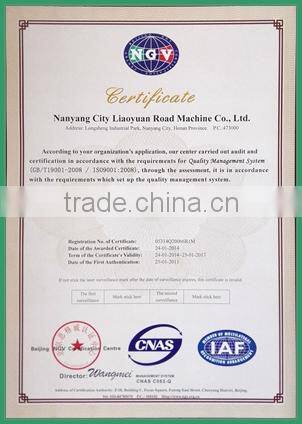

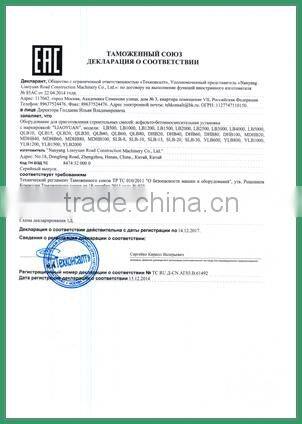

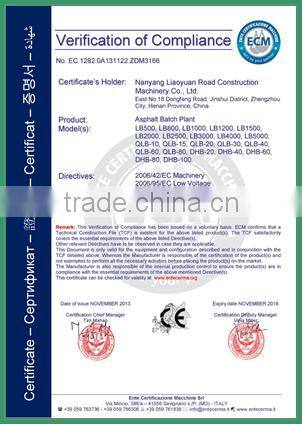

IV. CERTIFICATES

More information please visit our factory in Nanyang, Henan Province, China or learn about us on the website: www.
