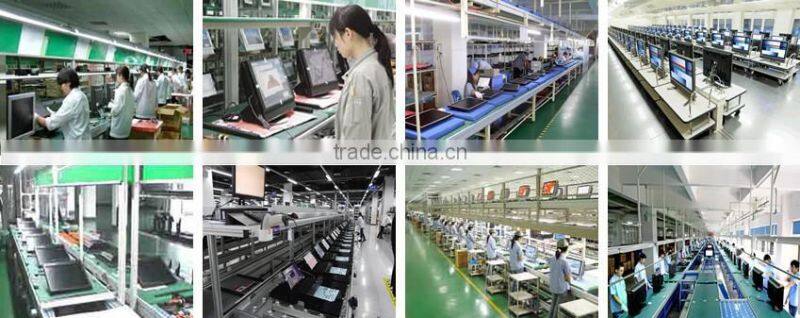

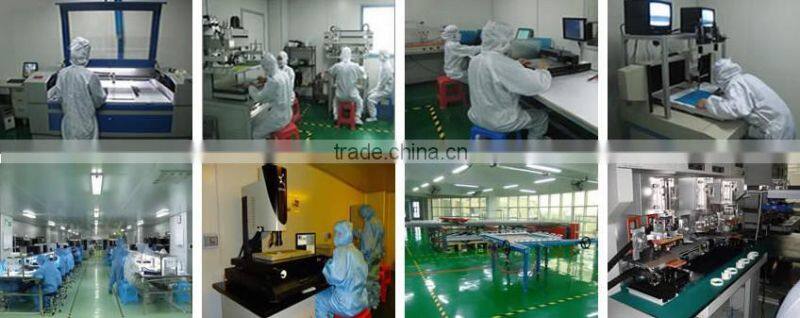

GreenTouch Technology Co., Ltd. is a professional manufacturer of touch screen and a high-tech enterprise. Our company specializes in R&D, manufacture and marketing of high-grade touch screen and value-added touch screen. Our company has our own trademark—GreenTouch and provides customers with touch screens including SAW touch screen, IR touch screen, four-wire touch screen, five-wire touch screen and various touch screen monitors. GreenTouch has automatic production lines and the sealed dust-free workshops and has been certified to ISO9001 Quality Management System and ISO14001 Environmental Management System. The products are inspected in strict accordance with the quality management system. Quality management becomes an essential part of operation. Our products have been certified to CE, FCC, ETL, ROHS and UL. The objective of GreenTouch is to become the most reliable supplier of touch screen, special products, high value-added products and touch solutions in the world!

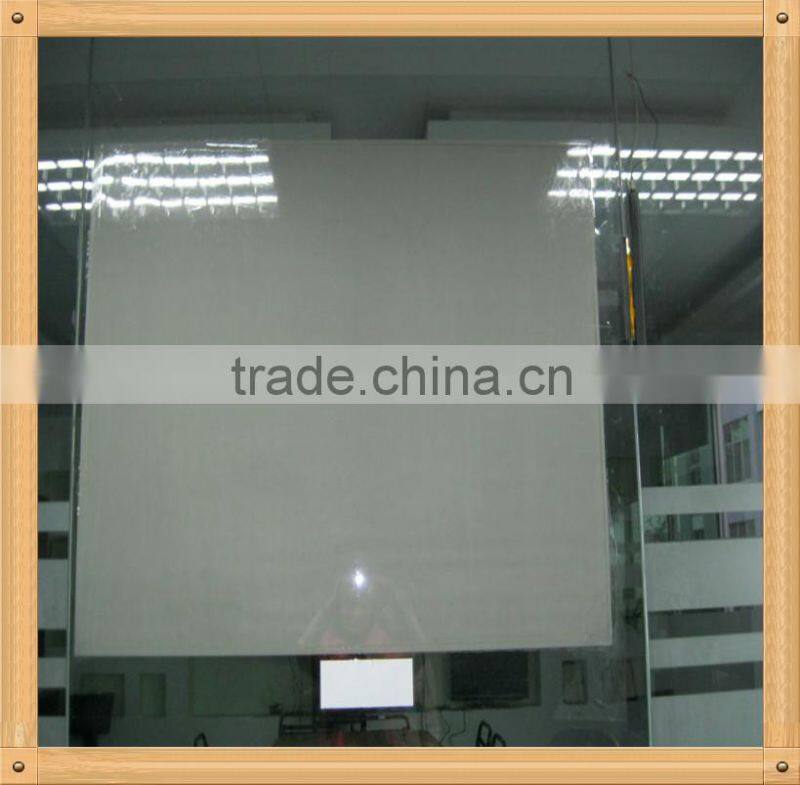

GreenTouch Interactive Touch Foils are supplied with an electrostatic cling layer which makes them suitable for both permanent and temporary installations. The new improved touch foil have an upgraded driver with US

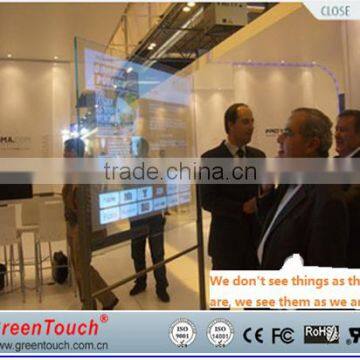

B connection which has been digitally signed off by Microsoft (EMC approved) and are UL, FCC and CE approved (RoHS compliant). The Interactive Foils are combined with a screen technology to create an interactive touch screen display. Our main market for the Touch foils is 'thru-glass' interactive displays for store window applications, where the foil is combined with our range of projection films and high brightness LCD TFT screens. Such as interactive shop windows, trade shows, museums, meeting rooms and much more.
Standard Size of Interactive Touch Foil:
17 inch to 120inch (4: 3 and 16: 9 ratio). All standard sizes are being shipped to dealers worldwide within one week (when in stock). Each touch foil comes with USB connector with cable Or RS232 Cable, driver software, installation video's and user guide.
1. Projected Capacitance Touch Foil Technology
2. Works on glass up to 20mmthickness
3. Easy to use or install, and Simple to set up for touch foil
4. Durable flexible touch foil, very light and thin touch foil
5. Perfect Single-touch and dual-touch, Quick touch response speed
6. Fixing options: removable and permanent, Can be permanent or replaceable
7. Can be attached to almost every surface: Shop window, Glass, Acrylic and Rear projection film and any other non-metallic material
8. Available Size: from 17 to 120 inches sheets, bigger available on request

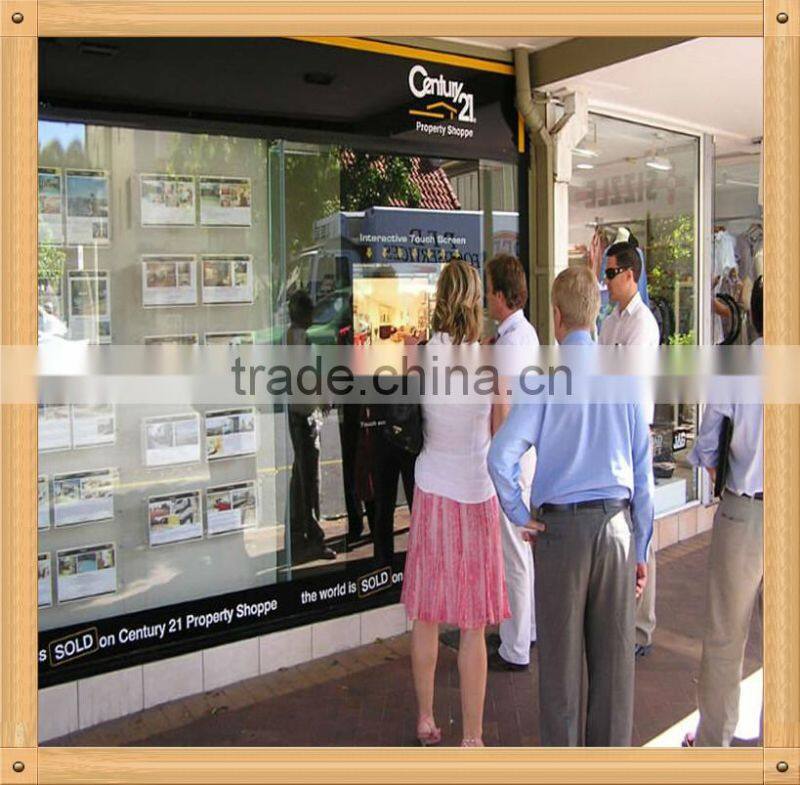

1. Shop/Store window displays
2. Indoor and outdoor kiosks
3. Glass partitions
4. Corporate offices
5. Training and meeting rooms
6. Exhibitions and conferences
7. Museums and visitor attractions
Induction method |
The improved projected sensing technology, criss-cross X, Y nanowires constitute sensing matrix |
Touch size |
17"~94"(4:3) or 17"~120"(16:9) can be customized |
Paste way |
Removable Imperial or permanent paste |
Touch accuracy |
No drift, the deviation is about 1~3mm |
Calibration way |
software calibration |
The number of wires |
Nano-wires 40 Road / Road 64/128 |
Induction thickness (penetration) |
Adjusted by software to adapt to various thickness of glass, even wear gloves to produce touch-sensitive, can penetrate non-metallic materials about the thickness of 20 mm (middle to allow air layer), the induction can even penetrate glass thickness aboutof 25mm |
Scanning frequency |
60Hz~130hz |
Output way |
USB 2.0 (HID public interface to USB Mini B interface) |
Compatibility |
WIN2000/WINXP/WIN7/WIN8/Linux/Mac/android4.0 etc. |
Touch functionality |
Mouse function, multi-point (2) touch support TUIO and Windows Native |
Temperature range |
-20°C~60°C |
Humidity range |
0% RH to 95% RH (without condensation neighborhood) |
Transmittance |
>93% |
Power consumption |
Max 0.5W |
Product Certification |
CE,FCC,ROHS |
EMC |
EN61000-6-1:2007 EN61000-6- 3:2007+A1:2011 |
