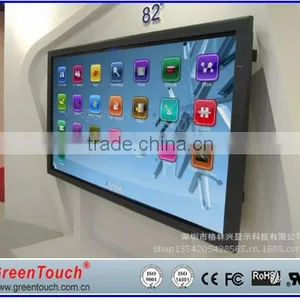

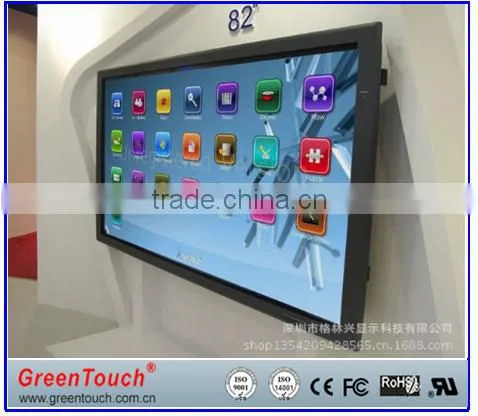

55inch ir Touch Screens,ir Touch Frames,ir Touch Screen Overlays With 6point or 10points

Size

General Size

15 inch to 400inch

Application

 lay on the lcd or projector

Performance

Touch Mode

Single-point touch, Dual -touch Multi-touch, drag, draw-line, rotate, zoom in/out

Resolution(Interpolation)

4096*4096

Linearity Error

<1.5mm

Response Speed

<15ms

Mechanical

Input Method

Finger or gloved hand (rubber ,cloth or leather)

Touch Times

Unlimited

Touch Activation Force

No minimum touch activation force is required

Minimum Touch Object

2.5 mm X 2.5 mm

protection

Anti-Glare,Anti -water,Anti-Reflective,Anti -Dust

Operation system

windows series,Android,linux

Optical

Glass:

with or without tempered glass,  AG (anti-glare), or AR (anti-reflective) glass optional or tempered glass about 2mm,2.8mm,3mm,4mm,5mm

AG Glass

AR Glass

Basic Concept:

 the transmissivity can be over 98%, the reflectivity can be lower 1%  .

film structure on both surface glass :

1):single surface AR glass(double layer) GLASSTIO2SIO2
2):double surface AR glass(four layer) GLASSTI02SIO2TIO2SIO2
3):Multilayer AR glass ---Base on client requests

Processing size:

Environmental

Temperature

Operating Range: -20°C ~ 70°C;

Storage Range: -40°C ~ 85°C

Relative Humidity

Operating Range: 0%~90% RH (no dew falls)

Storage Range: 0% to 95% RH (no dew falls)

Altitude

Up to 3,000m

Ambient Light

Direct sunlight 90°to ±30° to the display surface Touch detection operational

Direct sunlight all angles to display surface Free of false touch reports

Electrical

Operation Voltage

Typical +DC 5V, +4.75V to +5.25V

Power Supply

Size under 52”(include 52”)USB or PS/2 Interface, power ripple max.200mV rms

Size above 52”(52” not included): external AC-DC power adaptor

Interface

Full Duplex USB 2.0 (Full Speed) Plug and play compatible

Serial RS-232. Baud Rate: 9600, 8 Data Bits, 1 Stop Bit, No Parity

Current

Typical 150MA@+5VDC; 350mA, maximum

Power

<1.5W, operating current<300mA

Electrostatic Protection

15 kV air / 8 kV contact discharges (EN61000-4-2,1995 :Level 4)

Controller

Integration inside touch panel

Agency Approvals

CE, FCC, Rohs

Operating System

Operation System: Perfectly Support Windows XP / Windows 7 / 8 / Linux
