miniature flange bearing MF63ZZ
Many ball bearings have flanges as options to their configurations. The flange is designed to aid in mounting and positioning. This is especially true for miniature and instrument bearings but applies to other ball bearing types. Flanges are also used with bearings on external housings used to mount a bearing unit. A mounted bearing unit acts as a system to position the bearing securely for reliable operation.
Some models for your reference:

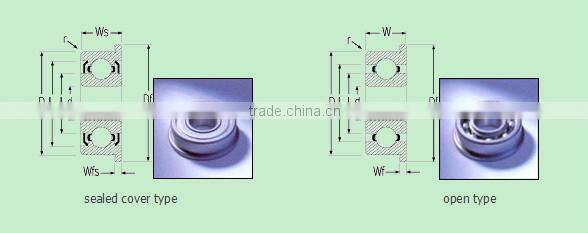

| flange (D1) | Breadth(B) | flange breadth(c) | Cr(N) | Cor(N) | speed | |||||||
| Model | (d) | (D) | open | zz | open | zz | open | zz | grease | oil | ||
| *1000rpm | ||||||||||||
| F682zz | 5 | 6.1 | 1.5 | 2.3 | 0.5 | 0.6 | 169 | 50 | 85 | 100 | ||
| MF52zz | 2 | 5 | 6.2 | 2 | 2.5 | 0.6 | 0.6 | 169 | 50 | 85 | 100 | |
| F692zz | 6 | 7.5 | 2.3 | 3 | 0.6 | 0.8 | 330 | 99 | 75 | 90 | ||
| MF62zz | 6 | 7.2 | 2.5 | 2.5 | 0.6 | - | 330 | 99 | 75 | 90 | ||
| MF72zz | 7 | 8.2 | 2.8 | 3 | 0.6 | 0.6 | 386 | 129 | 63 | 75 | ||
| F602zz | 7 | 8.5 | 2.8 | 3.5 | 0.7 | 0.9 | 386 | 129 | 60 | 71 | ||
| F682Xzz | 6 | 7.1 | 1.8 | 2.6 | 0.5 | 0.8 | 209 | 74 | 71 | 80 | ||
| F692Xzz | 2.5 | 7 | 8.5 | 2.5 | 3.5 | 0.7 | 0.9 | 386 | 129 | 63 | 75 | |
| MF82X | 8 | 9.2 | 2.5 | - | 0.6 | - | 558 | 180 | 60 | 67 | ||
| F602Xzz | 8 | 9.5 | 2.8 | 4 | 0.7 | 0.9 | 552 | 177 | 60 | 71 | ||
| MF63zz | 6 | 7.2 | 2 | 2.5 | 0.6 | 0.6 | 209 | 74 | 71 | 80 | ||
| F683zz | 3 | 7 | 8.1 | 2 | 3 | 0.5 | 0.8 | 311 | 112 | 63 | 75 | |
| MF83zz | 8 | 9.2 | 2.5 | 3 | 0.6 | - | 395 | 141 | 60 | 67 | ||
| F693zz | 8 | 9.5 | 3 | 4 | 0.7 | 0.9 | 558 | 180 | 60 | 67 | ||
| MF93zz | 9 | 10.2 | 10.6 | 2.5 | 4 | 0.6 | 0.8 | 571 | 189 | 56 | 67 | |
| F603zz | 9 | 10.5 | 3 | 5 | 0.7 | - | 571 | 189 | 56 | 67 | ||
| F623zz | 10 | 11.5 | 4 | 4 | 1 | 1 | 631 | 219 | 50 | 60 | ||
| MF74zz | 7 | 8.2 | 2 | 2.5 | 0.6 | 0.6 | 255 | 108 | 60 | 67 | ||
| MF84zz | 4 | 8 | 9.2 | 2 | 3 | 0.6 | 0.6 | 395 | 141 | 56 | 67 | |
| F684zz | 9 | 10.3 | 2.5 | 4 | 0.6 | 1 | 641 | 227 | 53 | 63 | ||
| MF104zz | 10 | 11.2 | 11.6 | 3 | 4 | 0.6 | 0.8 | 711 | 272 | 48 | 56 | |
| F694zz | 11 | 12.5 | 4 | 4 | 1 | 1 | 957 | 350 | 48 | 56 | ||
| F604zz | 12 | 13.5 | 4 | 4 | 1 | 1 | 957 | 350 | 48 | 56 | ||
| F624zz | 13 | 15 | 5 | 5 | 1 | 1 | 1301 | 488 | 40 | 48 | ||
| F634zz | 16 | 18 | 5 | 5 | 1 | 1 | 1340 | 523 | 36 | 43 | ||
| MF85zz | 8 | 9.2 | 2 | 2.5 | 0.6 | 0.6 | 218 | 90 | 53 | 63 | ||
| MF95zz | 5 | 9 | 10.2 | 2.5 | 3 | 0.6 | 0.6 | 431 | 169 | 50 | 60 | |
| MF105zz | 10 | 11.2 | 11.6 | 3 | 4 | 0.6 | 0.8 | 431 | 169 | 50 | 60 | |
| MF115zz | 11 | 12.5 | - | 4 | 0.8 | 1 | 716 | 282 | 45 | 53 | ||
| F685zz | 11 | 12.5 | 3 | 5 | 0.8 | 1 | 716 | 282 | 45 | 53 | ||
| F695zz | 13 | 15 | 4 | 4 | 1 | 1 | 1077 | 432 | 43 | 50 | ||
| F605zz | 14 | 16 | 5 | 5 | 1 | 1 | 1329 | 507 | 40 | 50 | ||
| F625zz | 16 | 18 | 5 | 5 | 1 | 1 | 1729 | 675 | 36 | 43 | ||
| F635zz | 19 | 22 | 6 | 6 | 1.5 | 1.5 | 2336 | 896 | 32 | 40 | ||
| MF106zz | 6 | 10 | 11.2 | 2.5 | 3 | 0.6 | 0.6 | 496 | 218 | 45 | 53 | |
| MF126zz | 12 | 13.2 | 13.6 | 3 | 4 | 0.6 | 0.8 | 716 | 295 | 43 | 50 | |
| F686zz | 13 | 15 | 3.5 | 5 | 1 | 1.1 | 1082 | 442 | 40 | 50 | ||
| F696zz | 15 | 17 | 5 | 5 | 1.2 | 1.2 | 1340 | 523 | 40 | 45 | ||
| F606zz | 17 | 19 | 6 | 6 | 1.2 | 1.2 | 2263 | 846 | 38 | 45 | ||
| F626zz | 19 | 22 | 6 | 6 | 1.5 | 1.5 | 2336 | 896 | 32 | 40 | ||
| MF117zz | 11 | 12.2 | 2.5 | 3 | 0.6 | 0.6 | 455 | 202 | 43 | 50 | ||
| MF137zz | 13 | 14.2 | 14.6 | 3 | 4 | 0.6 | 0.8 | 541 | 276 | 40 | 48 | |
| F687zz | 7 | 14 | 16 | 3.5 | 5 | 1 | 1.1 | 1173 | 513 | 40 | 50 | |
| F697zz | 17 | 19 | 5 | 5 | 1.2 | 1.2 | 1605 | 719 | 36 | 43 | ||
| F607zz | 19 | 22 | 6 | 6 | 1.5 | 1.5 | 2336 | 896 | 36 | 43 | ||
| F627zz | 22 | 25 | 7 | 7 | 1.5 | 1.5 | 3287 | 1379 | 30 | 36 | ||
| MF128zz | 12 | 13.2 | 13.6 | 2.5 | 3.5 | 0.6 | 0.8 | 543 | 274 | 40 | 48 | |
| MF148zz | 14 | 15.6 | 3.5 | 4 | 0.8 | 0.8 | 817 | 386 | 38 | 45 | ||
| F688zz | 8 | 16 | 18 | 4 | 5 | 1 | 1.1 | 1252 | 592 | 36 | 43 | |
| F698zz | 19 | 22 | 6 | 6 | 1.5 | 1.5 | 2237 | 917 | 36 | 43 | ||
| F608zz | 22 | 25 | 7 | 7 | 1.5 | 1.5 | 3293 | 1379 | 34 | 40 | ||
| F689zz | 9 | 17 | 19 | 4 | 5 | 1 | 1.1 | 1327 | 668 | 36 | 43 | |
| F699zz | 20 | 23 | 6 | 6 | 1.5 | 1.5 | 2467 | 1081 | 34 | 40 | ||
| F6700zz | 15 | 16.5 | 16.5 | 3 | 4 | 0.8 | 0.8 | 850 | 430 | 14 | 16 | |
| F6800zz | 10 | 19 | 21 | 5 | 5 | 1 | 1 | 1700 | 800 | 35 | 42 | |
| F6900zz | 22 | 25 | 6 | 6 | 1.5 | 1.5 | 2611 | 1223 | 31 | 40 | ||
| F6701zz | 18 | 19.5 | 19.5 | 4 | 4 | 0.8 | 0.8 | 922 | 512 | 12 | 14 | |
| F6801zz | 12 | 21 | 23 | 5 | 5 | 0.8 | 1 | 1911 | 1041 | 33 | 39 | |
| F6901zz | 24 | 26.5 | 6 | 6 | 1 | 1.5 | 2831 | 1411 | 31 | 36 | ||
Standard export package,.
Neutral package.(Single package), Wooden package + pallet; Carton package + pallet. Or as your requirements
Wuxi Hangruiyu Bearing Co., Ltd. is a manufacturer of bearings with well-equipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in large machinery, petrochemical industry, mine, metallurgy and other machinery industry supporting products.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
Why choose us?
1. The advantages of products' quality and competitive price
2. Reply within 24 hours
3. Could learn customers' requirement/need very well
4. Professional sales team to contact you easily, fluently and conveniently
5. Terminal manufacturer to remove redundant procedures between us
6. Have a good control for quality, from raw material, assembling, inspection to packing
