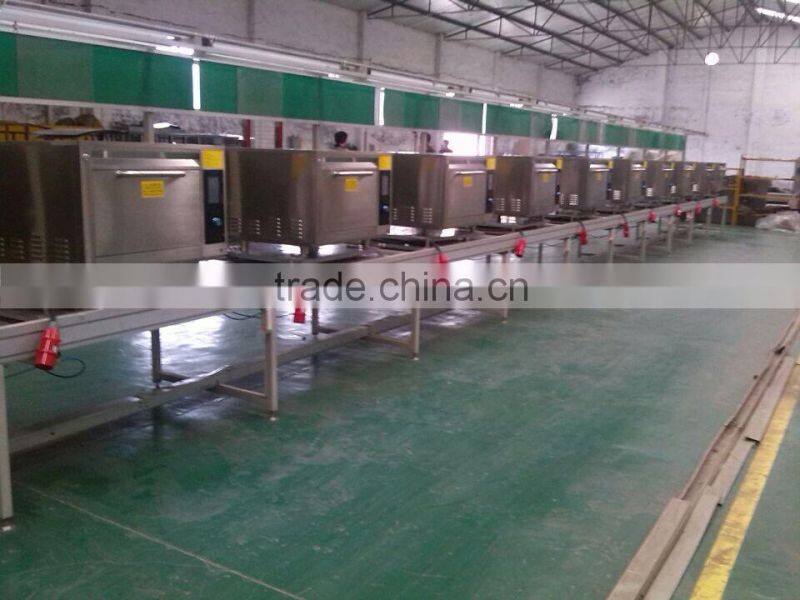

Jinan Jiatai Electric Appliance Co., Ltd. is a manufacturer of commercial kitchen fittings and combines developing with manufacturing and marketing. The company has the outstanding fast cooking techniques and advanced production process, develops the speed oven of Cheer Chef ® series with independent intellectual property rights. The speed oven, adopting distinctive heating principle and intelligent menu system, cooks food of premium quality at high speed and becomes the best solution of fast cooking for the user.
The products are applied to a variety of industries, such as quick service restaurants, western Restaurant, coffee Bars, fastfood noshery, contract catering, concessions, franchise Stores, pizza Restaurants, bakeries, barbecue, cstores, food court, quick casual, hotels, pubs, restaurants, railway catering, motorway catering services, full service restaurants.
The company adheres to “based on advanced technology, guided by international quality”. And the products has progressively substituted for the traditional ovens and earned a remarkable reputation in domestic and oversees markets.
Speed oven Features:
1. Faster cook speed, high quality food and consistent results. It evenly and consistently toasts, roasts, bakes, grills, browns and crisps food faster than traditional cooking methods,resultingin a high level of throughput without compromising quality.
2. Smart menu system is capable of storing up to 144 recipes, all can be renamed for classification, storage and retrieval.
3. Full menu flexibility, fully programmable and multistage programming. Recipe programs canhave up to 6 stages, each with the own time, microwave power and fan speed.
4. Forced convection.
5. Variable-speed recirculating impingement airflow.
6. Side/top-launched microwave to cook food evenly and quickly.
7. Independent bottom temperature offset and bottom browning element.
8. Recirculating catalytic converter for grease elimination, odor reduction, no contaminationand no taint of odor in continuous cooking.
9. Built-in self-diagnostics for monitoring oven components and performance.
10. Use standard metal cookware.

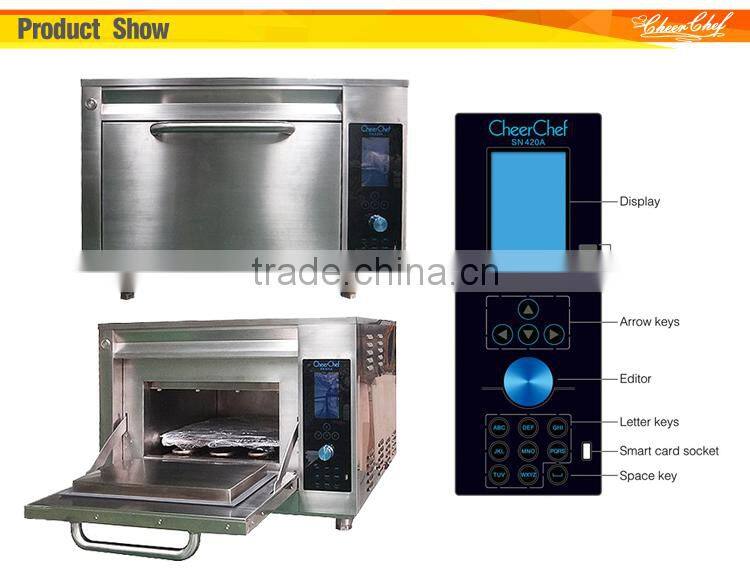

11. Easy to operate: LCM display, membrane keyboard and one for all edit knob.
12. Energy-saving: 70% than traditional ovens.

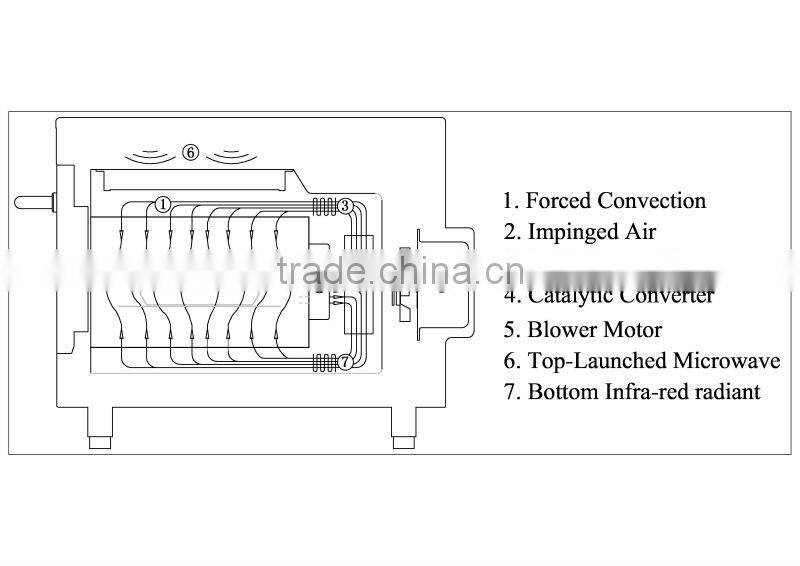

How it works
The SN420A oven uses radiant heat, high-speed air impingement, side-launched microwave, catalytic converter intelligent menu system to cook food rapidly without compromising quality.
Dimensions
| W x H x D mm | 760 X 520 X 800 |
| W x H x D(With legs and handle) mm | 760 X 590 X 870 |
| Net Weight | 100 kg |
Cook Chamber Dimensions
| W X H X D mm | 420 X 210 X 366 |
| Volume L | 32.3 |
| The distance from rack to top mm |
150 |
Cook time
| 8”Pizza-Fresh Dough(600g) | 1 minute 10 seconds |
| 8”Pizza-Parbaked, Refrigerated | 50 seconds |
| 8”Cheese Pizza | 40 seconds |
| 6”Sub Sandwich | 30 seconds |
| Breakfast Sandwich | 20 seconds |
| Muffin (2) | 30 seconds |
| Cinnamon Rolls (frozen, par-baked)-Qty 6 | 40 seconds |
| French Fries (300g) | 1 minute 30 seconds |
| Apple Strudel (300g) | 1 minute 10seconds |
| Nachos (120g) | 20 seconds |
| 6 oz Salmon | 1 minute 10 seconds |
| Chicken Wings-8-count, Frozen | 1 minute 50 seconds |
| Chicken Tenders (frozen, 900g) | 2 minutes 20 seconds |
| Roast Meat (block) (650g) | 2 minutes 30 seconds |
| Roast Chicken (duck) (1250g) | 5 minutes 10 seconds |
Ideal for:
| Quick Service Restaurants | Western Restaurant | Coffee Bars | Fastfood Noshery | Contract Catering | Concessions, Franchise Stores | Pizza Restaurants | Bakeries | Barbecue | Cstores | Food Court | Quick Casual | Hotels | Pubs | Restaurants | Railway Catering | Motorway Catering Services | Full Service Restaurants |
wooden case.
