Specifications
bronze base rolling bushing:low friction coefficient
good corrosion resistance
self-lubrating
low noise

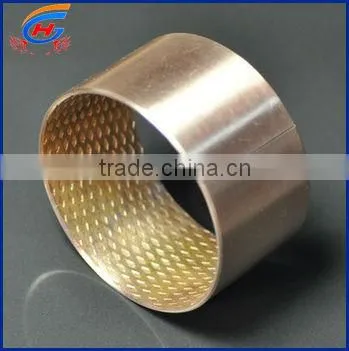

FB - 090 bronze base rolling bushing
FB - 090 is a kind of traditional single metal bearing lubrication material completely. Play a role in copper itself as a wear medium. Substrate surface design layout has a groove and oil hole or oil hole for the use of oil or gas.
FB - 090 is a kind of traditional single metal bearing lubrication material completely.
1. thermal conductivity, high load-bearing capacity is strong.
2.excellent chemical corrosion resistance performance.
3.inner hole can leave allowance for secondary processing
Technical Data:
| Material | static | 120N/m m² | Hardness | HB 110-150 |
| dynamic | 40N/m | Extension of degree |
40% | |
| Maximum linear speed | 2m/s | tempearure | -100°C~+200°C | |
| Max.PV | 2.8N/mm*/s |
Friction coefficient | 0.08~0.25 | |
strength of extension |
450N/m m² | heat conductivity coefficient |
60W(mk)-1 | |
| yield strength | 250N/m m² | coefficient of thermal expansion | 15x10-6k-1 | |
Typical application
products have been widely used in metallurgy, iron and steel industry high temperature furnace of steel ring part, cement grouting pump, screw conveyor, port machinery and ship etc.
Presentation
Bushing we deal in
SF-1 series bushing , SF-1 series bushing lead free , SF-2 series bushing, bimetal bushing , Copper bushing , and so on .
