Help CenterNon Tracking Tubing
Negotiable
MOQ: 122 Meters (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
UPM
Model Number:
C101
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Liaoning, China
Brand Name
UPM
Model Number
C101
Type
Insulation Sleeving
Material
PE
Application
Other, medium voltage
Specifications
anti tracking heat shrink tubeanti tracking
Raychem :HVTM
Size from diameter 19-100mm
6-15kV

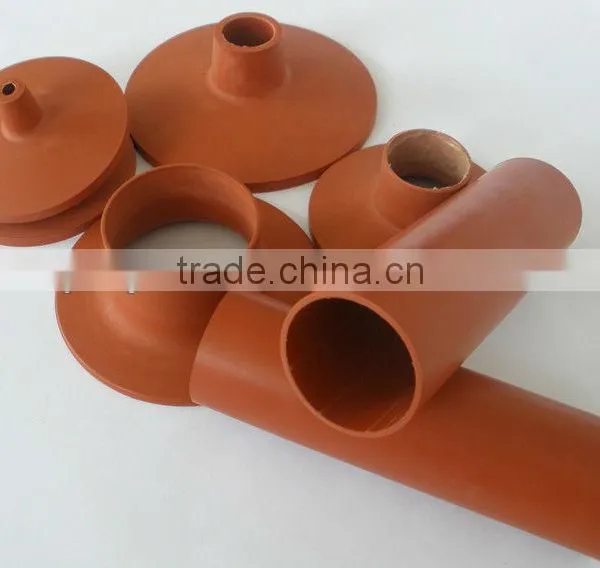

C 101 Anti-Tracking Heat Shrinkable Tubing
Voltage Class 6kV~15kV ideal for external insulation and protection of power cable termination
Anti-tracking Heat Shrinkable tubing made of radiation crosslinked polyolefin and silicone rubber for power cable termina insulation
Applications
External insulation and protection of power cable
Terminalion
Features/Benellis
Halogen free environmental friendly
Suitable for outdoor applications
Colour : Red
Product Code Cross References
Raychem/Tyco : HVTM
DSG Canusa : CNTT
Temperature Range
Operating Temperature: -55~105
Shrink Temperature: 105~125
Technical details:
| Test item | Test standard | Typical Data |
| Tensile strength | ASTM D2671 | ≥10MPa |
| Ultimate Elongation | ASTM D2671 | ≥350 |
| Accelerated Ageing 168hrs at 136Tensile strength | ASTM D2671 | ≥8MPa |
| Accelerated Ageing 168hrs at 136Ultimate Elongation | ASTM D2671 | ≥250 |
| Water absorption | ASTM D570 | ≤0.5% |
| Heat shock | 200/30min | No drop no flow |
| Low temperature flexibility | -40/4hrs | No cracking |
| Dielectric strength | ASTM D2671 | ≥15kV/mm |
| Flame retardance | ASTM D2863 | OI≥25 |
| Anti tracking | ASTM D2303 |
pass |
Product Selection
| Product Code | thicknessafter free recovery(mm) | Standard package(m/pcs) | Standard package(m/roll) |
| C101-19/6 | 2.5 | 1.22 | 15 |
| C101-30/10 | 3.0 | 1.22 | 15 |
| C101-35/12 | 3.0 | 1.22 | 15 |
| C101-40/16 | 3.0 | 1.22 | 15 |
| C101-45/18 | 3.0 | 1.22 | 15 |
| C101-54/24 | 3.0 | 1.22 | 15 |
| C101-60/29 | 3.0 | 1.22 | 15 |
| C101-76/38 | 3.0 | 1.22 | 15 |
| C101-100/49 | 3.0 | 1.22 | 15 |
