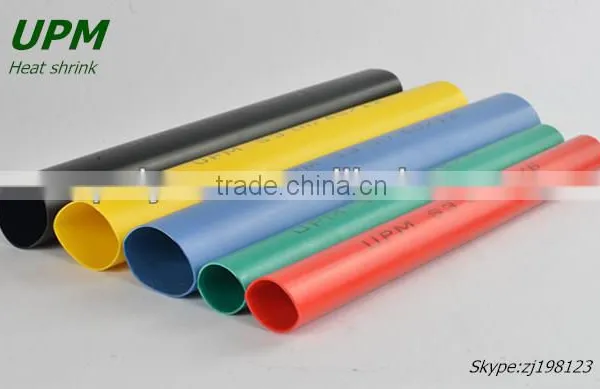

MWTM Medium Wall Heat Shrink Tube

MWTM Medium Wall Heat Shrink Tube thumbnail-1
MWTM Medium Wall Heat Shrink Tube photo-1
US$ 0.29 - 29 MOQ: 100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
justup
Model Number:
S3(n)
Contact Supplier Request Quote Chat Now
Union Polymer Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Liaoning, China
Brand Name justup
Model Number S3(n)

Specifications

1.Voltage Class1k~15kV
2. ideal for mechanical and environmental protection cable joint
3.Color:black, red,yellow, blue

Equivalent to Tyco Raychem MWTM heat shrink tube

Ideal for mechanical and environmental protection of CATV cable, joint and gas pipeline



Medium wall Heat Shrinkable tubing with halogen-free radiation cross-linked polyolefin outer layer and heat melt adhesive inner layer.



Applications:

· Protection of CATV cable/cable joints, gas pipeline & low voltage electrical wiring



Features/Benefits:

·Halogen free, environmental friendly

·Non-flame retardant

·Adhesive-lined, waterproof and seal against moisture

·High resistance to abrasion and impact



Temperature Range:

·Operating Temperature         : -55 ºC ~ 90 ºC

·Shrink Temperature              : 125 ºC



Colour:Black



Product Code Cross References

Raychem                : MWTM

DSG Canusa           : CFW / CFTV

LG                          : LG-PMWT



Technical Details

Test item

Test method

Typical value

Tensile Strength

ASTM D2671

12MPa

Elongation

ASTM D2671

400%

Specific Gravity

ASTM D792

1.2

Elongation after Heat Aging

(168 hrs at 150)

ASTM D2671

350%

Tensile strength after heat aging

ASTM D2671

12MPa

Low Temperature Flexibility

 (4 hrs at -55)

ASTM D2671

No cracking

Hardness (Shore D)

ASTM D2240

60D

Heat shock (4hrs at 200)

ASTM D2671

No cracking or flowing

Adhesive Softening Point

ASTM-E28

85

Adhesive Peel Strength to P.E.

ASTM D1000

110N/25mm

Adhesive Peel Strength to Aluminum

ASTM D1000

80N/25mm

Dielectric Strength

ASTM D2671

20kV/mm

Volume Resistivity

ASTM D257

1014Ω.cm

Copper Corrosion

ASTM D2671

No Corrosion

Water Absorption

ASTM D570

0.5%

Fungus Resistance

ASTM G21

No Growth




Product Selection



Product Code

Min. wall thickness

after free recovery(mm)

Standard Length Per Piece

(m)

S3(N) -φ8/2

1.7

1.22

S3(N) -φ9/3

1.7

1.22

S3(N) -φ12/4

2.0

1.22

S3(N) -φ16/5

2.2

1.22

S3(N) -φ19/6

2.5

1.22

S3(N) -φ28/9

2.5

1.22

S3(N) -φ33/10

2.5

1.22

S3(N) -φ40/12

2.5

1.22

S3(N) -φ50/16

2.7

1.22

S3(N) -φ65/19

2.8

1.22

S3(N) -φ75/22

3.0

1.22

S3(N) -φ85/25

3.0

1.22

S3(N) -φ95/25

3.0

1.22

S3(N) -φ100/30

3.0

1.22

S3(N) -φ115/34

3.0

1.22

S3(N) -φ125/40

3.0

1.22

S3(N) -φ140/42

3.0

1.22

S3(N) -φ150/45

3.0

1.22

S3(N) -φ160/50

3.0

1.22

S3(N) -φ180/60

3.0

1.22

S3(N) -φ210/70

3.0

1.22

S3(N) -φ225/75

3.0

1.22

S3(N) -φ260/85

3.0

1.22



Factroy View

MWTM medium wall heat shrink tube

Test equipment



MWTM medium wall heat shrink tube

MWTM medium wall heat shrink tube

Major custoers

MWTM medium wall heat shrink tube
