Help CenterSealing Heat Shrinkable Sleeve for Fiber Dome Clousure
Related Products
-
Heat Shinkable Tubing for Fiber Dome ClosureNegotiableMOQ: 200 Meters -
Heat Shinkable TubingUS$ 0.55 - 7.99MOQ: 200 Meters
-
Self-locked Sprial Adhesive Heat Shinkable TubingUS$ 0.55 - 7.99MOQ: 200 Meters
-
Red Heat Shinkable Tubing for Fiber Dome ClosureUS$ 0.55 - 7.99MOQ: 200 Meters
-
Red Sprial Adhesvie Heat Shinkable TubingUS$ 0.55 - 7.99MOQ: 200 Meters
Specifications
1.Hermetically sealing2.Mirror like surface glue
3.Innovative locking mechanism
4. Workds well in cold or hot environment

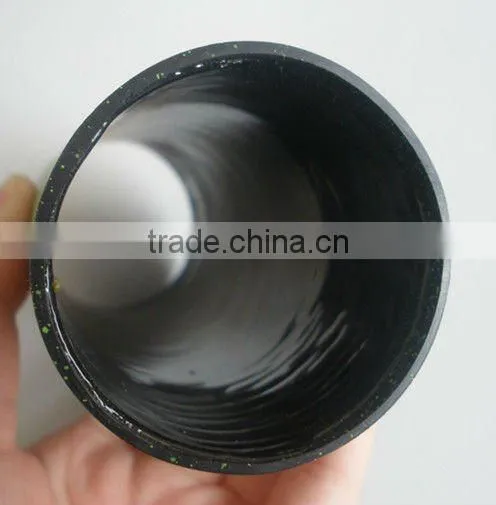

High Quality Heat Shrink Tubing Hermetically Seals
Heavy wall heat shrinkable polyolefin tubing; precoated spiral polyamide adhesive provides
hermetically sealing. No adhesive at one end is specifically designed for locking the cable position
during installation.
Technical Details
Test Item |
Test Method |
Results |
Sealing |
Temperature: 23 ± 3oC; Internal air pressure: 100 ± 2 kPa Duration: 24 hrs, or immersed in water for 15 mins |
Passed |
Temperature Cycling |
10 temperature cycles from -40oC to 60oC; internal air pressure: 60kPa |
No leaking |
Duration: 2 hrs at each temperature point | ||
Thermal Aging |
Temperature: 60 ± 2oC; internal air pressure: 70 ± 2 kPa |
Passed |
Duration: 168 hrs | ||
Elongation |
Pulling with D/45 x 1500 N, internal air pressure: 60 ± 2 kPa |
No leaking |
Duration: 24 hrs | ||
Cable bending |
Subjecting the cable to bend 45 degree, the bending radius: 150mm
|
No damage |
|
Maximum bending force loading: 500N, internal air pressure: 60 ± 2 kPa
|
No leaking |
|
Cable Torsion |
Subjecting the cable to 90 degree torsion loading, maximum torque 50Nm |
No damage |
Torsion distance: 250mm, internal air pressure: 60 ± 2 kPa |
No leaking |
|
Chemical |
5% HCl, NaOH, NaCl; internal air pressure: 60 ± 2 kPa; |
No corrosion |
Resistance |
Duration: 24 hrs |
No leaking |
Chemical Attack |
70% gasoline and 30% methylbenzene |
Passed |
Duration: 168 hrs |
Product Selection
|
Product Code |
Internal Diameter Before Shrink/After Shrink |
Out Layer Wall Thickness After Shrink |
Standard Length |
||
(mm) |
(inch) |
(mm) |
(mm) |
(inch) |
|
S3PS 28/6 |
28/6 |
1.1/0.2 |
2.90 ± 0.10 |
150 |
6 |
S3PS 30/6 |
30/6 |
1.2/0.2 |
2.90 ± 0.10 |
150 |
6 |
S3PS 33/8 |
33/8 |
1.3/0.3 |
2.90 ± 0.10 |
150 |
6 |
S3PS 36/9 |
36/9 |
1.4/0.4 |
3.30 ± 0.15 |
150 |
6 |
S3PS 43/9 |
43/9 |
1.7/0.4 |
4.50 ± 0.15 |
150 |
6 |
S3PS 55/16 |
55/16 |
2.2/0.6 |
3.60 ± 0.15 |
150 |
6 |
S3PS 75/22 |
75/22 |
3.0/0.9 |
3.60 ± 0.15 |
150 |
6 |
S3PS 105/30 |
105/30 |
4.1/1.2 |
3.70 ± 0.15 |
150 |
6 |
Ordering
Please specify: (1) Product code; (2) Color; (3) Quantity required in pieces; and (4) The specific length at one end without pre-coated adhesive. We Provide Customized sizes and Lengths to Meet Your Specific Needs.
