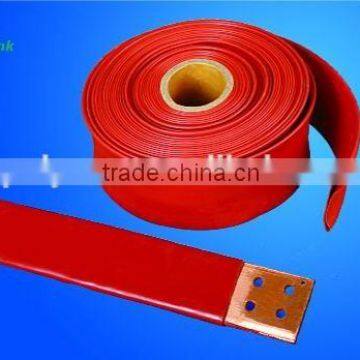

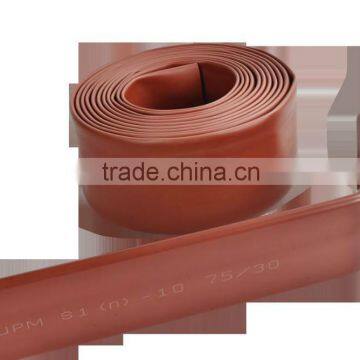

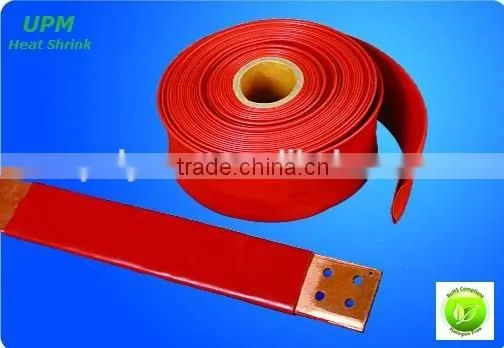

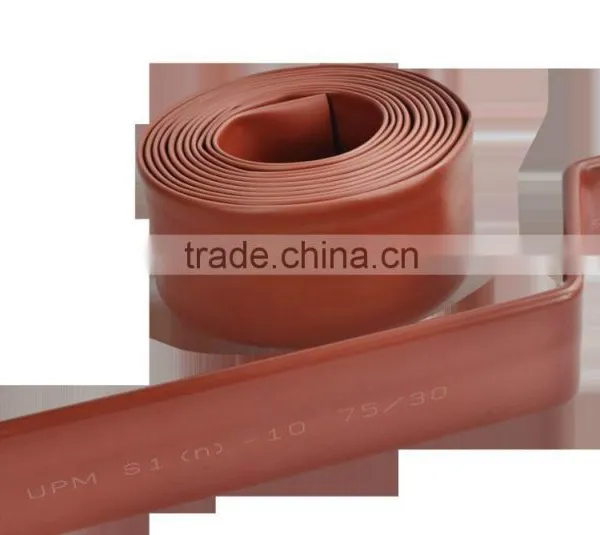

S1(n)-10 Halogen free bus bar insulation heat shrink tubing
Voltage Class 6-24kV Ideal for Middle Voltage Busbar Insulation
Medium wall heat shrinkable tubing for protection and insulation of bus bar against accidents caused by electrified bare bus bar.
1.Reduce bus bar clearance requirement
2.Provides more freedom in designing switchgear cabinets when space is limited
3.Protects against accidental flashover up to 24kV
4.Protects against short circuit and electrical leakage caused by small animals
5.Protects against corrosion dirt and other contaminants that may cause accidental flashover
6.Available in continuous length for convenient and economical installation
7.RoHS compliant, halogen free
Operating Temperature: -40°C to 105°C
Shrink temperature: 125°C
Color: Red
Cross reference:
Raychem/Tyco: BPTM
DSG Canusa: CBTM
3M: BBI
