S1(n)-10 Halogen Free Bus Bar Insulation Heat Shrink Sleeve

US$ 0.03 - 99 MOQ: 200 Meters

Key Specifications

Place of Origin:

Liaoning, China

Brand Name:

UPM

Model Number:

S1(n)-10

Union Polymer Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Liaoning, China

Brand Name UPM

Model Number S1(n)-10

Type Heat Shrinkable

Material Other, Polyolefin

Specifications

S1(n)-10 Halogen free bus bar insulation heat shrink tubing
Voltage Class 6-24kV Ideal for Middle Voltage Busbar Insulation

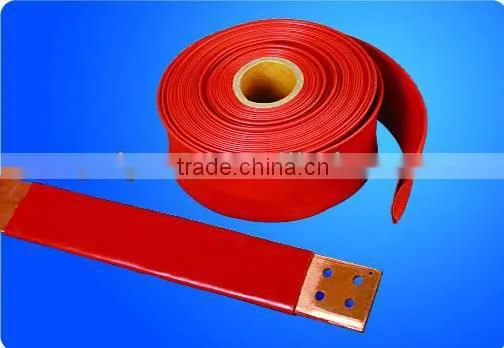

S1(n)-10 Halogen free bus bar insulation heat shrink sleeve

Voltage Class 6-24kV Ideal for Middle Voltage Busbar Insulation

Medium wall heat shrinkable tubing for protection and insulation of bus bar against accidents caused by electrified bare bus bar.

Operating Temperature: -40°C to 105°C

Shrink temperature: 125°C

Color: Red

Cross reference:

Raychem/Tyco: BPTM

DSG Canusa: CBTM

3M: BBI

Technical Data
Property		Test method	Values
Physical	Tensile strength	ASTM D2671	≥14 MPa
	Breakdown elongation	ASTM D2671	≥500%
Aging (136°C/168hrs)	Tensile strength	ASTM D2671	≥12 MPa
	Breakdown elongation	ASTM D2671	≥400%
Long term aging
(120°C/3000hrs) Breakdown elongation		IEC 60684-2	≥175%
Resistance to selected fluids Tensile strength		IEC 60684-2	≥8MPa
(23°C/168hrs) Breakdown elongation		IEC 60684-2	≥250%
	Density	ASTM D2671	0.95~1.05
	Thermal endurance	IEC 216	105 °C
	Water absorption ((23°C/336hrs))	ASTM D570	≤0.2%
	Low temperature flexibility (-40°C/4hrs)	ASTM D2671	No cracking
	Heat shock (200°C/4hrs)	ASTM D2671	No drop, No flow,No cracking
	Holdig air test	more than 3	After shrink, no air gap
		bendings on bus bar	between H.S.T. and bus bar
	Cutting test ((110°C/168hrs))	Raychem method	5mm Length cutting along longitudinal, no cracking
	Halogen free	IEC 61249-2-21	Cl:900ppmmax.Br: 900ppmmax.
			Total(Cl + Br):1500ppm max.
Electrical	Volume resistivity	ASTM D2671	≥1012 Ω.cm
	Tracking and erosion resistance	ASTM D2303	After 1h at 2.5kV or 1h at 2.75kV no tracking
	Dielectric strength(in insulation oil)	ASTM D2671	≥16 KV/mm
Chemical	Color fastness to light	IEC 60684-3	Compare between exposed and unexposed parts the color does not change
	Copper corrosion(158°C/168hrs)	IEC 60684-3	Pass
