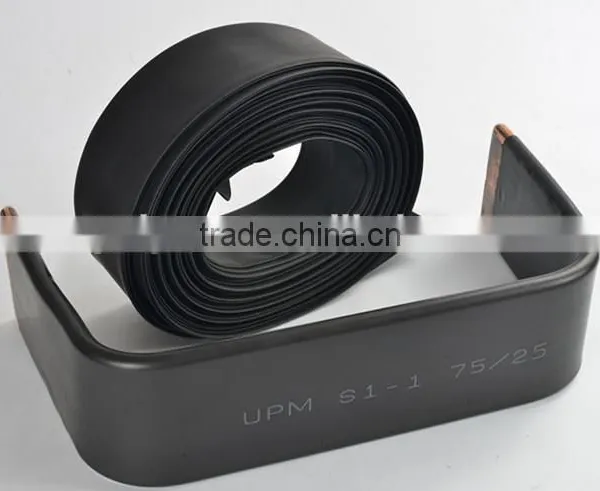

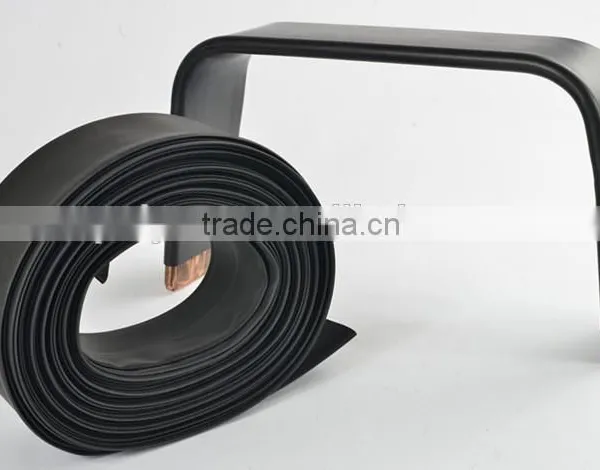

S1-1 Bus Bar Insulation Heat shrink tubingVoltage class 1kV ideal for low voltage bus bar insulation
S1-1 Bus Bar Insulation Heat shrink tubing
Voltage class 1kV ideal for low voltage bus bar insulation
Thin wall heat shrinkable tubing for insulation and protecting busbar against flashover caused by accidental bridging. Allows the air spacing between busbar to be kept at minimum when space is limited in switchgear cabinets. Easy to position on a variety of curved and bent busbar of both rectangular and circular shapes.
1.Reduces busbar clearance requirement
2.Provides more freedom in designing switchgear cabinets when space is limited
3.Suitable for insulating busbar up to 1kV
4.Protects against short circuit and electrical leakage caused by small animals
5.Protects against corrosion and other contaminants that may cause accidental flashover
6.Available in continuous length for convenient and economical installation
7.Highly flame retardant
8.RoHS compliant, halogen free
Operating temperature: -40°C to 105°C
| Dimensions | 2.5:1 | |||
| Reference | As supplied(mm) | After recovered(mm) | Standard length | |
| UPM S1-1 | ID min. | ID max. | WT nom. | m/spool |
| 15/6 | 15 | 6 | 1.5 | 30 |
| 30/12 | 30 | 12 | 1.5 | 30 |
| 50/20 | 50 | 20 | 1.5 | 30 |
| 75/30 | 75 | 30 | 1.5 | 30 |
| 100/40 | 100 | 40 | 1.5 | 30 |
| 120/50 | 120 | 50 | 1.5 | 30 |
| 150/50 | 150 | 50 | 1.5 | 30 |
| 175/70 | 175 | 70 | 1.5 | 30 |
| 3:1 | ||||
| Reference | As supplied(mm) | After recovered(mm) | Standard length | |
| UPM S1-1 | ID min. | ID max. | WT nom. | m/spool |
| 30/10 | 30 | 10 | 1.8 | 30 |
| 75/25 | 75 | 25 | 2.0 | 30 |
| 100/33 | 100 | 33 | 2.2 | 30 |
| 150/50 | 150 | 50 | 2.2 | 30 |
| 180/70 | 180 | 70 | 2.3 | 30 |
| Product selection | ||||
| Bus bar size (mm) | Single layer bus bar | Two layer bus bar | ||
| 20×3,25×3 | Φ30/10 | Φ30/10 | ||
| 30×3,30×4 | Φ30/10 | Φ30/10 | ||
| 30×10,40×4 | Φ75/25 | Φ75/25 | ||
| 40×10,50×5,50×6 | Φ75/25 | Φ75/25 | ||
| 50×8,50×10,60×6,60×8 | Φ75/25 | Φ75/25 | ||
| 60×10,80×6,80×8,80×10 | Φ100/33 | Φ100/33 | ||
| 100×8,100×10,100×12 | Φ150/50 | Φ150/50 | ||
| 100×15,120×10,120×12,120×15 | Φ150/50 | Φ180/70 | ||
| 150×12,150×15 | Φ180/70 | Φ180/70 | ||
