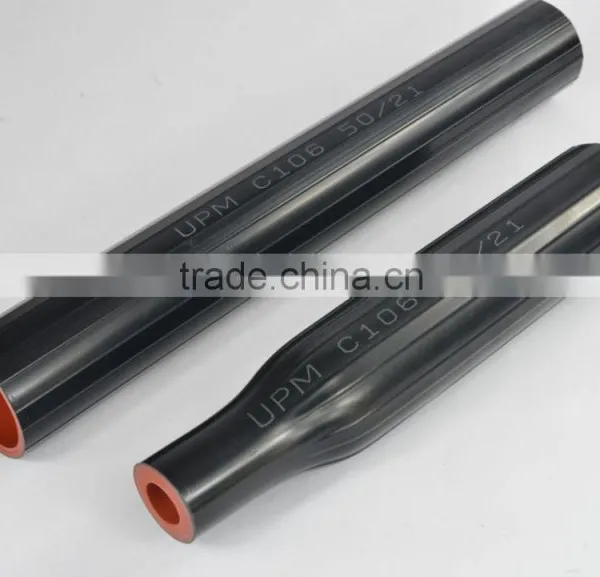

Tri Layer Heavy Wall Tube for Cable Accessory
US$ 10 - 200
MOQ: 100 Meters
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
UPM
Model Number:
C106
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Creepage Extension Rain ShedUS$ 1.05 - 1.99MOQ: 100 Pieces -
Hot!!! Semi-conductive/Insulation/Elastomeric Insulation Tri-layer Heat Shrink Tube Quality ChoiceUS$ 1 - 99MOQ: 100 Meters
-
Hot!!! Semi-conductive/insulation Double Layer Heat Shrinkable TubingUS$ 1 - 99MOQ: 100 Meters
-
Hot!!! Stress Control Heat Shrink TubeNegotiableMOQ: 1
-
Electrical Anti Tracking Heat Shrinkable Rain Shed CapUS$ 1.05 - 1.99MOQ: 100 Pieces
Place of Origin
Liaoning, China
Brand Name
UPM
Model Number
C106
Type
Heat Shrinkable
Material
Other, Polyolefin, Polyolefin
Specifications
C106 Semi-Conductive/Insulation/Elastomeric insulation Tri-layer Heat Shrinkable tubingVoltage Class 12-35kV
Ideal for Insula
C106 Semi-Conductive/Insulation/Elastomeric insulation Tri-layer Heat Shrinkable tubing
Voltage Class 12-35kV
Ideal for Insulation of power cable joint
1.Heavy wall tubing
2.Co-extrusion technology
3.Eliminates the partial discharge
4.Easy installation
5.Inner elastomeric will expand when heated and contract when cool together the cable.
6.Inner elastomeric layer has waterproof effect
Operating temperature: -55°C to 105°C
Shrink temperature: 135°C to 150°C
Cross references:
Raychem/Tyco: ERIT/ERIC/ERIH
| Dimensions | ||||
| Reference | As supplied(mm) | After recovered(mm) | Standard length | |
| UPM C106 | ID min. | ID max. | WT nom. | m |
| 35/13 | 35 | 13 | 11.0 | 1 or 1.22 |
| 45/17 | 45 | 17 | 12.0 | 1 or 1.22 |
| 50/21 | 50 | 21 | 12.7 | 1 or 1.22 |
| 63/26 | 63 | 26 | 13.5 | 1 or 1.22 |
| 75/34 | 75 | 34 | 13.5 | 1 or 1.22 |
| 85/34 | 85 | 34 | 13.5 | 1 or 1.22 |
| 95/42 | 95 | 42 | 14.2 | 1 or 1.22 |
| 110/52 | 110 | 52 | 14.2 | 1 or 1.22 |
| 125/62 | 125 | 62 | 15.0 | 1 or 1.22 |
| ID=Internal Diameter | WT=wall thickness | |||
