Thin Wall Adhesive Coating Heat Shrink Tube

Thin Wall Adhesive Coating Heat Shrink Tube thumbnail-1

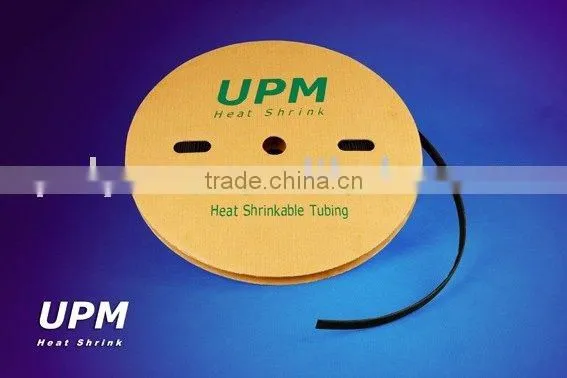

Thin Wall Adhesive Coating Heat Shrink Tube photo-1
US$ 0.19 - 9.99 MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
UPM
Model Number:
S3(t)
Contact Supplier Request Quote Chat Now
Union Polymer Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Liaoning, China
Brand Name UPM
Model Number S3(t)

Specifications

thin wall adhesive coating heat shrink tube
Dual thin wall
Shrink ratio 3:1;4:1
Halegen free
Flame retardant .UL certificat

thin wall adhesive coating heat shrink tube
S3 (t) Flame retardant Thin Wall Heat Shrinkable Tubing
Voltage Class 1kVIdeal for insulation and waterproof protection
Co-extruded dual wall tubing with polyolefin outer layer for insulation, corrosion resistance, stress release and heat melt adhesive inner layer for waterproofing and mechanical stress relief.
Applications
Waterproof wire or wire bundle
Sealing of wire joints
Features/Benefits
High Shrink Ratio: 3:1 & 4:1
Halogen free, environmental friendly
Adhesive inner layer, waterproof and seal against moisture
Flame Resistant: UL VW-1 Grade (Outer Layer)
Temperature Range
Operating Temperature : -40 ~ 125 ºC
Shrink Temperature : 125 ºC
Color:Black
Certification
Certified by UL, E236437 (Outer Layer)
Product Code Cross References
Raychem/Tyco : ATUM
DSG Canusa : CPA100
Sumitomo : W3B2
3M : EPS400/EPS300
LG : GSHS-3635W



Technical Details



Test item Test method Typical value
Tensile strength
ASTM D2671
 ≥ 10Mpa
Break down elongation
ASTM D2671
 > 400%
Tensile strength after aging
ASTM D2671
 ≥ 10Mpa
Break down elongation after aging
ASTM D2671
 > 300%
Flammability
UL224
 VW-1
Water absorption
ASTM D570
 ≤ 0.5%
Heat shock
200 for 30 minutes
 No drop/no flow
Low temperature flexibility
-40 for 4 hours
 No cracking
Dielectric strength
ASTM D2671, at 2500V AC
for 60 seconds
 pass
Copper corrosion
UL224, at 158 ºC for 168 hours
 pass
Volume Resistivity
ASTM D2671
 >1014Ω.cm



Production selection
Shrink ratio: 3:1



Product Code Min.Wall thickness After shrink (mm) Normal length(m/roll;pc/m)
S3(t)-3.2/1.0 1.0 200
S3(t)-4.8/1.6 1.1 100
S3(t)-6.4/2.1 1.0 100
S3(t)-7.9/2.6 1.4 50
S3(t)-9.5/3.2 1.4 50
S3(t)-12.7/4.2 1.5 1.22
S3(t)-15.0/5.0 1.5 1.22
S3(t)-19.1/6.0 2.2 1.22
S3(t)-25.4/8.0 2.3 1.22
S3(t)-30/10
 2.4 1.22
S3(t)-39/13 2.5 1.22
S3(t)-51/17 2.5 1.22
S3(t)-64/21 2.8 1.22



Shrink ratio: 4:1



Product Code Min.Wall thickness After shrink (mm) Normal length/pc (m)
S3(t)-4.0/1.0 1.0 1.22
S3(t)-6.0/1.5 1.1 1.22
S3(t)-8.0/2.0 1.2 1.22
S3(t)-12.0/3.0 1.4 1.22
S3(t)-16.0/4.0 1.7 1.22
S3(t)-20.0/5.0 2.0 1.22
S3(t)-24.0/6.0 2.1 1.22
S3(t)-32.0/8.0 2.4 1.22
S3(t)-52.0/13.0 2.4 1.22



ID: Internal Diameter
Ordering
When ordering this product, please specify 1) Product code 2) Color 3) Quantity Required in number of rolls
