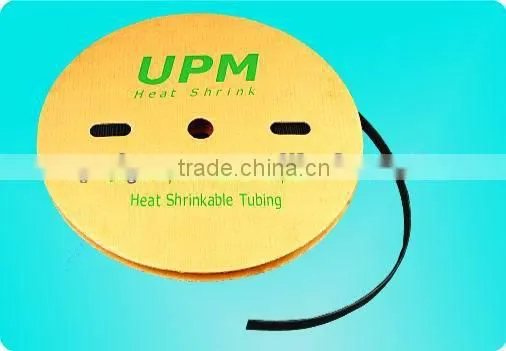

S3(t) Flame retardant Thin Wall Heat Shrinkable Tubing
Voltage class 1kV for Insulation and Waterproof protection
Dual wall heat shrinkable tubing with cross-linked flexible polyolefin outer layer for insulation, corrosion resistance, and mechanical stress release, hot melt adhesive inner layer for waterproof sealing. Ideal for a variety of application including connector-to cable sealing wire harness bundles and splices.
Features/Benefits
1)Large shrink ratio: 3:1 and 4:1, providing easy installation even if there are large diameter differences between the cable and the connector
2)Certified by UL E236437(outer layer)
3)RoHS compliant
4)Adhesive inner layer for waterproof sealing against moisture or other contaminants
5)Inner adhesive bonds to a variety of plastics, rubbers, and metals including polyethylene, aluminum, steel and copper
6)Ideal for insulation, corrosion resistance, ad mechanical stress relief
7)The outer layer flame retardant feature meets the UL 224 VW-1 standard
Temperature range:
Operating temperature: -40°C to 135°C
Shrink temperature: 125°C
Color: Red, green white yellow, black, and transparent
Cross references:
Raychem/Tyco: ATUM
DSG Canusa: CPA100
Sumitomo: W3B2
LG: GSHS-3635W
| Technical Data | ||||
| Property | Test method | Values | ||
| Physical | Tensile strength | When test at 500mm/min. | ≥12 MPa | |
| Breakdown elongation | When test at 500mm/min. | ≥300% | ||
| Dielectric breakdown voltage | -- | ≥ AC 2500V | ||
| Dielectric voltage Withstand | 1min.AC2500V | No breakdown | ||
| Aging (158°C /168hrs) | Tensile strength | When test at 500mm/min. | ≥10MPa | |
| Breakdown elongation | When test at 500mm/min. | ≥200% | ||
| Dielectric breakdown voltage | -- | ≥ AC 2500V and more than 50% of the value obtained with unaged sample | ||
| Dielectric voltage Withstand | 1min.AC2500V | No breakdown | ||
| Density | -- | 1.15~1.25 | ||
| Thermal endurance | -- | 125 °C | ||
| Hardness (Shore D) | -- | ≥ 40 HD | ||
| Water absorption (23°C/24hrs) | -- | ≤0.5% | ||
| Low temperature flexibility(-30°C/1hr) | -- | No cracking | ||
| Peel strength to steel | ASTM D2671 | 80N/25mm | ||
| Peel strength to XLPE | ASTM D2671 | 110N/25mm | ||
| Heat shock (250°C/4hrs) | -- | No cracking,No drop, No flow(outer layer only) | ||
| Electrical | Volume resistivity | ASTM D2671 | ≥1014 Ω.cm | |
| Dielectric strength(2500V AC/60s) | ASTM D2671 | ≥ 12KV/mm | ||
| Chemical | Flammability(outer layer only) | VW-1 | Pass | |
| Copper corrosion | (158°C/168hrs) 500mm/min | Elongation≥100% | ||
| Fluid resistance 23°C/24hrs | Diesel fuel(bs2869 class A1) | ISO 37 | Tensile strength | ≥7 MPa |
| Hydraulic fluid(H-515) | Breakdown elongation | ≥300% | ||
| Lubricating oil(O-149) | Peel strength to steel | 60N/25mm | ||
| Note: The test methods conform to UL224. | ||||
| Reference | As supplied(mm) | After recovered(mm) | Standard length | |
| UPM S3(t) | ID min. | ID max. | WT nom. | m |
| Shrink Ratio: 3:1 | ||||
| 3.2/1.0 | 3.2 | 1.0 | 1.0 | 200 |
| 4.8/1.6 | 4.8 | 1.6 | 1.0 | 100 |
| 6.4/2.1 | 6.4 | 2.1 | 1.0 | 100 |
| 7.9/2.6 | 7.9 | 2.6 | 1.4 | 50 |
| 9.5/3.2 | 9.5 | 3.2 | 1.4 | 50 |
| 12.7/4.2 | 12.7 | 4.2 | 1.7 | 1.22 |
| 15.0/5.0 | 15.0 | 5.0 | 1.8 | 1.22 |
| 19.1/6.0 | 19.1 | 6.0 | 2.2 | 1.22 |
| 25.4/8.0 | 25.4 | 8.0 | 2.5 | 1.22 |
| 30.0/10.0 | 30.0 | 10.0 | 2.5 | 1.22 |
| 39.0/13.0 | 39.0 | 13.0 | 2.5 | 1.22 |
| 51.0/17.0 | 51.0 | 17.0 | 2.6 | 1.22 |
| Shrink Ratio: 4:1 | ||||
| 4.0/1.0 | 4.0 | 1.0 | 1.0 | 1.22 |
| 6.0/1.5 | 6.0 | 1.5 | 1.0 | 1.22 |
| 8.0/2.0 | 8.0 | 2.0 | 1.0 | 1.22 |
| 12.0/3.0 | 12.0 | 3.0 | 1.4 | 1.22 |
| 16.0/4.0 | 16.0 | 4.0 | 1.7 | 1.22 |
| 20.0/5.0 | 20.0 | 5.0 | 1.8 | 1.22 |
| 24.0/6.0 | 24.0 | 6.0 | 2.2 | 1.22 |
| 32.0/8.0 | 32.0 | 8.0 | 2.5 | 1.22 |
| 52.0/13.0 | 52.0 | 13.0 | 2.5 | 1.22 |
