Home > Products > Electronics > Hot!!! Green-Yellow Heat Shrinkable Tubing
Hot!!! Green-Yellow Heat Shrinkable Tubing
- Dalian China
- T/T
You May Like
Product Details
| Place of Origin | Liaoning, China | Brand Name | UPM | |
| Model Number | S11 | Type | Insulation Sleeving | |
| Material | Other, PE, Polyolifen | Application | Low Voltage | |
| Rated Voltage | 1kV | Tensile Strength | >10.4MPa |
Product Description

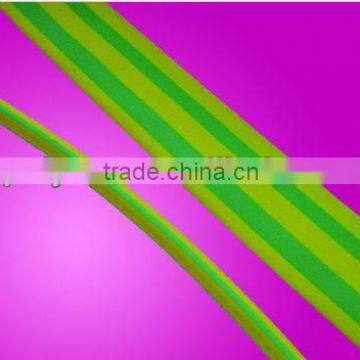

Hot!!! Green-Yellow heat shrinkable tubing
Dual-color(Yellow/green), flame retardant heat shrinkable polyolefin flexible tubing for insulation and easy marking/identification of international electrical ” ground” on wires and in cables
Features/Benefits:
1) Shrink ratio: 2:1 and 3:1. Providing easy installation even if there are large diameter differences
2) Yellow-green striped color provides instant identification
3) Co-extrusion of dual tubing colors ensures color permanence which is superior to the conventional ink marking
4) RoHS compliant
5) Flexible, easy to conform to irregular shape
6) Flame retardant meets the UL 224 VW-1 standard
Temperature range:
Operating temperature: -40 degree to 135 degree
Shrink temperature: 105 degree to 125 degree
Color:
Yellow and green striped color
Cross references:
Raychem/tyco: DCPT
DSG Canusa: CPX201
Sumitomo: B2(Y/G)
3M: GYS
| Specification | Packing (m/roll) | ||||
| Φ1.0 | 200 | ||||
| Φ1.5 | 200 | ||||
| Φ2.0 | 200 | ||||
| Φ2.5 | 200 | ||||
| Φ3.0 | 200 | ||||
| Φ3.5 | 200 | ||||
| Φ4.0 | 200 | ||||
| Φ4.5 | 100 | ||||
| Φ5.0 | 100 | ||||
| Φ6.0 | 100 | ||||
| Φ7.0 | 100 | ||||
| Φ8.0 | 100 | ||||
| Φ9.0 | 100 | ||||
| Φ10.0 | 100 | ||||
| Φ11.0 | 100 | ||||
| Φ12.0 | 100 | ||||
| Φ13.0 | 100 | ||||
| Φ14.0 | 100 | ||||
| Φ15.0 | 100 | ||||
| Φ16.0 | 100 | ||||
| Φ18.0 | 100 | ||||
| Φ20.0 | 100 | ||||
| Φ22.0 | 100 | ||||
| Φ25.0 | 50 | ||||
| Φ28.0 | 50 | ||||
| Φ30.0 | 50 | ||||
| Φ35.0 | 50 | ||||
| Φ40.0 | 50 | ||||
| Φ50.0 | 25 | ||||
| Φ60.0 | 25 | ||||
| Φ70.0 | 25 | ||||
| Φ80.0 | 25 | ||||
| Φ90.0 | 25 | ||||
| Φ100.0 | 25 | ||||
| Φ120.0 | 15 | ||||
| Φ150.0 | 15 |
