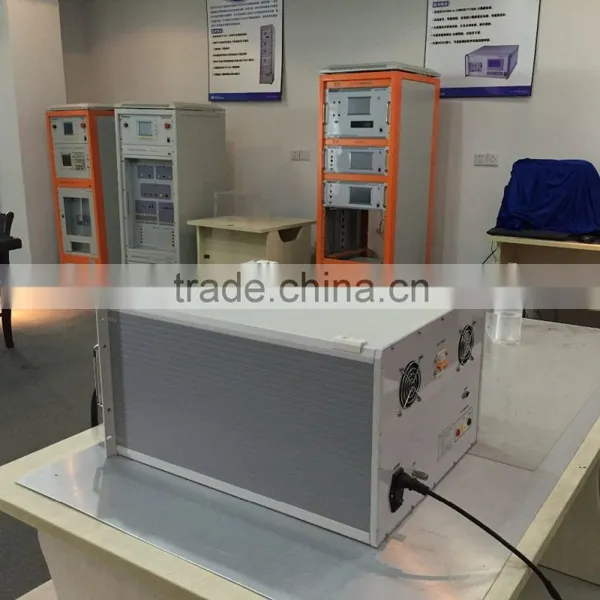

Factory Direct 6KV Surge Simulator Meet the IEC61000-4-5 ,IEC61000-4-2,IEC61000-4-4,Standards
- Shanghai
You May Like
-
Factory Direct Professional EMC Test Surge Simulator Meet the IEC61000-4-4, IEC61000-4-5 ,IEC61000-4-2,Standards
-
Factory Direct Surge Simulator Meet the IEC61000-4-4, IEC61000-4-5 ,IEC61000-4-2,Standards
-
Surge Simulator Meet the IEC61000-4-4, IEC61000-4-5 ,IEC61000-4-2,Standards
-
Professional EMC Test Surge Simulator Meet the IEC61000-4-4, IEC61000-4-5 ,IEC61000-4-2,Standards
-
Multifunction Surge Simulator Meet the IEC61000-4-4, IEC61000-4-5 ,IEC61000-4-2,Standards
-
6KV Surge Simulator Meet the IEC61000-4-5 ,IEC61000-4-2,IEC61000-4-4,Standards
Product Details
| Place of Origin | Shanghai, China | Brand Name | Prima | |
| Model Number | PRM61245A | Power | Electronic | |
| Usage | Auto Testing Machine |
Product Description
surge Simulator PRM61245A contains ESD, EFT and Lightning surge three functions,it complies with the latest standards IEC61000-4-2,IEC61000-4-4,IEC61000-4-5
Product characteristic:
ESD, EFT, and SURGE, three functions combined into a single, more cost-effective
Built-in international standards level parameters and user models parameters,very convenient
LCD display, Intelligent control,Use the Programmable imported high-voltage power supply, Reliable performance
Built-in intelligent couping/decoupling network. Testing safely
Built-in the RS232 interface ,Remote operated by the optional control software.
Model | PRM61245A | ||
ESD | Output voltage | 0.2~± 20 kV ± 5% Positive / Negative | |
Testing functions | Contact discharge /Air discharge | ||
Working form | Discharge interval 0.05 ~ 99.99s ,Testing form20PPS discharge;setting less than0.05s,be called single discharge | ||
Discharge capacitor/Resistor | 150pF /330 Ω (optional) | ||
Current rise time | 0.6 ~ 1ns | ||
EFT | Output voltage | 0 ~± 4800V Positive/Negative//Switchable | |
Pulse frequency | 1kHz~1200kHz ± 10%, adjustable | ||
Resistor | 50 Ω± 20% | ||
Rise time | 5ns ± 30% | ||
Impulse duration | 50 Ω load | 50ns ± 30% | |
1k Ω load | 35 ns~150 ns | ||
Number of burst | 1~255 | ||
Burst period | 300mS ( 0.15~9.99 S adjustable,step 0.01S ) | ||
EUT coupling path | Built-in,single phase three line AC220V,50/60Hz,max 16A | ||
SUG | Open -circuit t voltage/short-circuit current | Waveform parameters of Open -circuit t voltage: 1.2/50 μ s , 0.2~ 6kV | |
Surge polarity | Positive / Negative/Switchable | ||
Phase | Synchronism 0 °~ 360 °selectable/Asynchronism | ||
Output impedance | Complex impedance: 2 Ω 12 Ω | ||
Coupling path | Built-in,single phase three line AC220V,50/60Hz,max 16A | ||
Surge count | 1~9999 | ||
Surge interval | 10~9999s | ||
Working power supply | AC220V 50/60 | ||
