ESD gun which meet the IEC61000-4-2, IEC61000-4-4 ,IEC61000-4-5 standards Factory direct

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

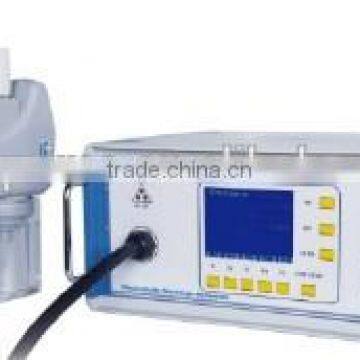

ESD gun PRM61245A contains ESD, EFT and Lightning surge three functions,it complies with the latest standards IEC61000-4-2,IEC61000-4-4,IEC61000-4-5

Product characteristic:

ESD, EFT, and SURGE, three functions combined into a single, more cost-effective

Built-in international standards level parameters and user models parameters,very convenient

LCD display, Intelligent control,Use the Programmable imported high-voltage power supply, Reliable performance

Built-in intelligent couping/decoupling network. Testing safely

Built-in the RS232 interface ,Remote operated by the optional control software.

Technical parameters:

Model			PRM61245A
ESD	Output voltage		0.2~± 20 kV ± 5% Positive / Negative
	Testing functions		Contact discharge /Air discharge
	Working form		Discharge interval 0.05 ~ 99.99s ,Testing form20PPS discharge;setting less than0.05s,be called single discharge
	Discharge capacitor/Resistor		150pF /330 Ω
	Current rise time		0.6 ~ 1ns
EFT	Output voltage		0 ~± 4800V Positive/Negative//Switchable
	Pulse frequency		1kHz~1200kHz ± 10%, adjustable
	Resistor		50 Ω± 20%
	Rise time		5ns ± 30%
	Impulse duration	50 Ω load	50ns ± 30%
		1k Ω load	35 ns~150 ns
	Number of burst		1~255
	Burst period		300mS ( 0.15~9.99 S adjustable,step 0.01S )
	EUT coupling path		Built-in,single phase three line AC220V,50/60Hz,max 16A
SUG	Open -circuit t voltage/short-circuit current		Waveform parameters of Open -circuit t voltage: 1.2/50 μ s , 0.2~ 6kV Waveform parameters of short-circuit current 8 /20 μ s ,0.1~ 3kA
	Surge polarity		Positive / Negative/Switchable
	Phase		Synchronism 0 °~ 360 °selectable/Asynchronism
	Output impedance		Complex impedance: 2 Ω 1 2 Ω
	Coupling path		Built-in,single phase three line AC220V,50/60Hz,max 16A
	Surge count		1~9999
	Surge interval		10~9999s
	Working power supply		AC220V 50/60Hz
