Help CenterMachine to Make Wood Pellets/wood Pellet Mills/biomass Pellet Mill
Related Products
-
Ring Die Wood Pellet Mill DC508MXUS$ 6000.00 - 6000.00MOQ: 1 Set -
Wood Pellet Mill DC508MXUS$ 60000.00 - 60000.00MOQ: 1 Set
-
CE Certificated Feed Processing MachineUS$ 10,000 - 50,000MOQ: 1 Set
-
High Capacity Feed Production MachineUS$ 10,000 - 50,000MOQ: 1 Set
-
CE Certificated 508 Feed Pelletizer Chicken Feed Cattle Feed Sinking FeedUS$ 20,000 - 60,000MOQ: 1 Set
Feature:
1. Drive with gear box.
2. Stainless steel feeder with frequency converter.
3. The bearings and seals at the main drive of international standards.
4. Lubrication of gearbox assured by reliable oil return.
5. The gear box with high quality drive systems, low noise.
6. Quick die changing with clamping device.
•Main drive adopts high accurate gear drive,with an output of about 20% higher than belt drive,and the die adopts the quick removing clamps.
•The drive part of the machineincluding motoroptimize the high quality bearings made in Switzerland and Japan,which ensure high efficient and steady driving with low noice.
•Full stainless steel strengthening feed conditioner,adopts the frequency-conversion speed regulating control to guarantee quality pellet feed.
•The alloy steel die is made by international advanced German gun drill and American vacuum furnace,has long service life and ensure smopthly pelleting and high quality.
•The international advanced compensation type flexible coupling is of novel and compact structure,safety,low noise and less trouble.
•Permanent magnet device of high performance.
•Adopt international advaned pipeline system and inlet pressure regulator.
•If it is used together witk N8 counter flow cooler, 150×2d rotary sifter and advanced fineteeth crumbler,the pellet feed can reach the highest quality.
•Pellet mill with two or three conditioners can be custom-made to produce high quality poultry,livestock and aquatic feed

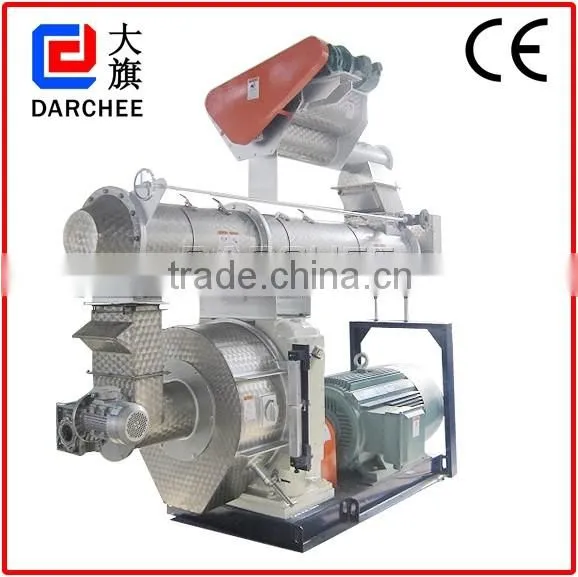

SZLH508 Pellet Mill
Model |
Main Power (kw) |
Capacity (t/h) |
Feeder Power (kw) |
Conditioner Power (kw) |
Die Diameter (mm) |
Pellet Size (mm) |
|
SZLH508 |
132/160 |
10-15 |
1.5 |
7.5 |
Φ508 |
6-8 |
Our company Darchee Feed Machinery Co., Ltd.( China ) has dedicated decades of years in supplying Animal Feed Making Machinery, Biomass Pelletizing Machinery and Ring Dies & Rollers for all the main brands of pellet mills over the world.
For Animal Feed Making Machinery and corresponding Projects, they apply to:
•Poultry Feed: chicken feed, duck feed
•Livestock Feed: cattle feed, rabbit feed, pig feed
•Aquatic Feed: floating fish feed, sinking fish feed, shrimp feed
For Biomass Pelletizing Machinery and corresponding Projects, they apply to:
• sawdust, wood Chips, rice husk, grain straw, corncob, nut shell, palm fiber
We manufacture Ring Dies and Rollers for domestic and foreign brands of Pellet Mills, like:
• Buhler, CPM, La Meccanica, Matador, Munch, Muyang, Paladin, Stolz, Van Aarsen, Yemmak
If you want to customize Ring Dies, please send us the detail drawing and request, we are able to produce it as well.
contact information
TEL: +86 519 87380988
M B: +86 15861863065
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=100USD, 100% in advance. Payment>=100USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
SKYPE:emma19871228
