Home > Products > 3D Printer filament extrusion line > High Quality ABS PLA 1.75mm 3.0mm 3D Printing Filament Making Machinery
High Quality ABS PLA 1.75mm 3.0mm 3D Printing Filament Making Machinery
- 10 Set / Sets per Month
- Shenzhen
Product Details
Condition: | New | Application: | Wire | Plastic Processed: | Other, ABS PLA |
Screw Design: | Single-screw | Automatic Grade: | High Automation | Place of Origin: | Guangdong, China |
Brand Name: | Songhu | Model Number: | SHSJ-45 | Voltage: | CUSTOMIZED |
Power(W): | 11kw | Dimension(L*W*H): | 15m*1.5m*2.3m | Weight: | 2000kg |
Certification: | CE And 7 National Patens | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

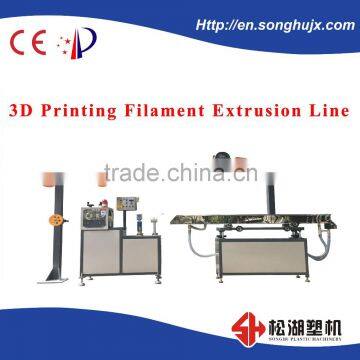

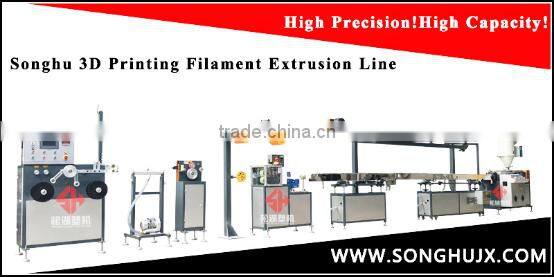

High Quality ABS PLA 1.75mm 3.0mm 3D Printing Filament Making Machinery

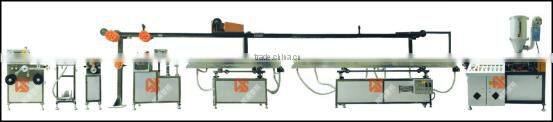

The Parameter:
Number | Name | Quantity | Remarks |
1 | SHSJ-45 Extruder | 1 SET | Normally One |
2 | High Precise Extrusion Mould | 1 SET | S136 |
3 | 3D Adjustment Circulating Water Tank | 1 SET | SUS304 Stainless Steel |
4 | Fixed Cooling Circulating Water Tank | 1 SET | SUS304 Stainless Steel |
5 | Independent Drying Device | 1 SET |
|
6 | Storage Device | 1 SET |
|
7 | Four Wheels Haul-Off Machine | 1 SET | Wearable And Thick |
8 | Second Independent Drying Device | 1 SET |
|

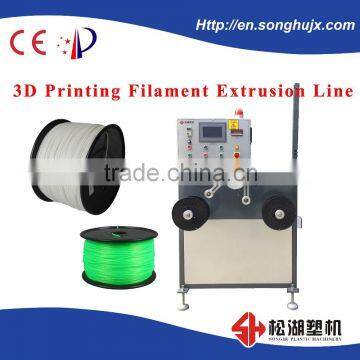

9 | Double Auto Winding Machine | 1 SET | Automatic Metering |
10 | Laser LST-25XY | 1 SET |
|
11 | Mixer | 1 SET |
Main Parts Brand Of PLA/PET Filament Extrusion Line | |||
Number | Parts Name | Brand | Remarks |
1 | Motor | Sino-Simens |
|
2 | Temperature Controller | Taiwan Huibang |
|
3 | Frequency Inverter | Delta | Show R.P.M |
4 | Screw / Barrel | Zhejiang Zhoushan | 38Crmoala Alloy Screw |
5 | Mould | S136 |
The Characteristics:
1. High capacity: Line speed up to 80-100m/min;
2. High precision: The roundness is controlled in the ± 0.05mm,
the diameter error is within 0.02mm;
3. Stable Quality: No color difference, not hollow,precision equipment
and process to protect the user at ease;
4. Low consumption: The whole line controled by the energy-saving frequency converter, the power consumption is only 10 degrees/h;
5. Easy to learn: Even if you don’t understand at all,
Songhu can still enable you to production independent in two days;
6. Small area: 20 square meters can accommodate the entire production line.

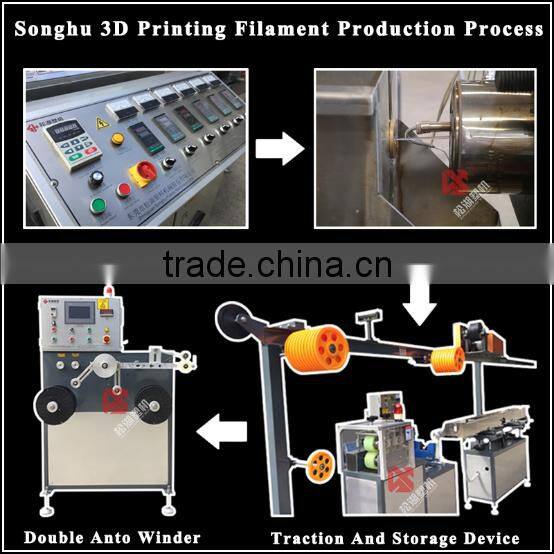

The Production Process:

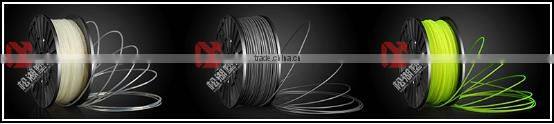

The Samples:
About Songhu::
Songhu focused on plastic extrusion production Machinery over 16 years, has become the
industry's largest manufacturers in China. We have accumulated the industry's most advanced
technology and management experience, such as: customer oriented design concept, the
industry leading professional technology, excellence in the quality of production, advisory
style sales approaches, perfect after-sale service. Products are exported to Thailand,Spain, Italy,
Korea, Slovenia, Singapore and other countries, gained customers recognition and praise from
domestic and foreign. Professional extrusion technology is in the continuous innovation, pre
and after-sales service is also in constant optimization, your satisfaction will be the best for us!

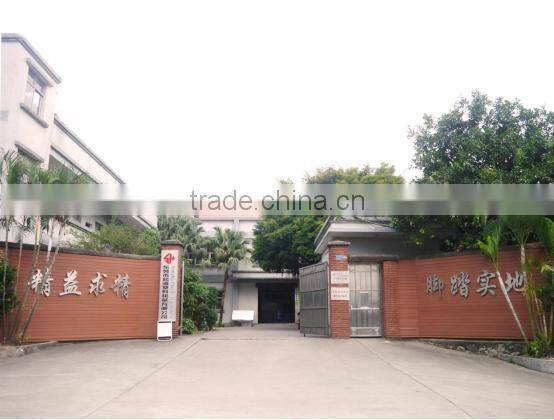

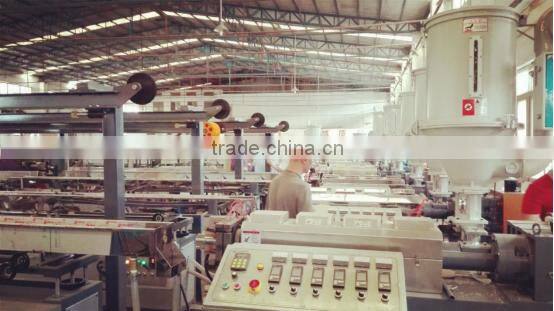

Our Factory And Workshop:::
The CE Certificate And 7 National Patents:
Good News:
Songhu has just awarded the certificate of High Tech Products,is the
only one selected manufacturers of 3D printing filament extrusion line.
Some Of Songhu's Customers And Partners:
Thanks to the trust and support from all universities,
research institutions, upstream and downstream enterprises;
We will carry forward thecause and keep forging ahead to create leader
brand to make the company become senior manufacturer and server!
The After-Sales Service:
1. Our engineers will go to your company to install and test the machine for you,
also give a training after the order;
2. The warranty of our machine is 12 months, during our warranty, you can contact us at any
time for free repair and replacement (non-artificial damage and natural aging cased);
3. After warranty, we still provide you technological support and parts with cost price;
4. Besides, we can also send our engineer to your company to sever you , you just need pay
for engineer’s travel expense and 80dallors per person each day.
The Packing And Shipping:
The Contact Information:
More Information , Please Visit Our Website :
