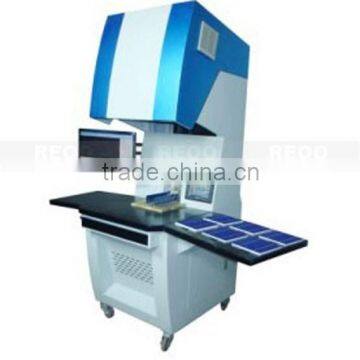

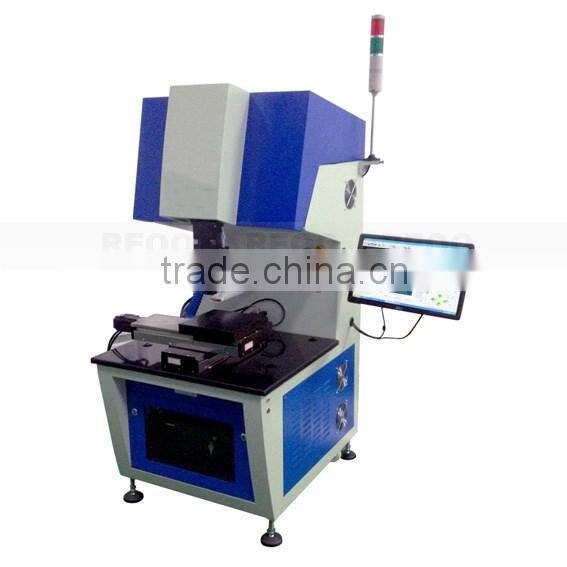

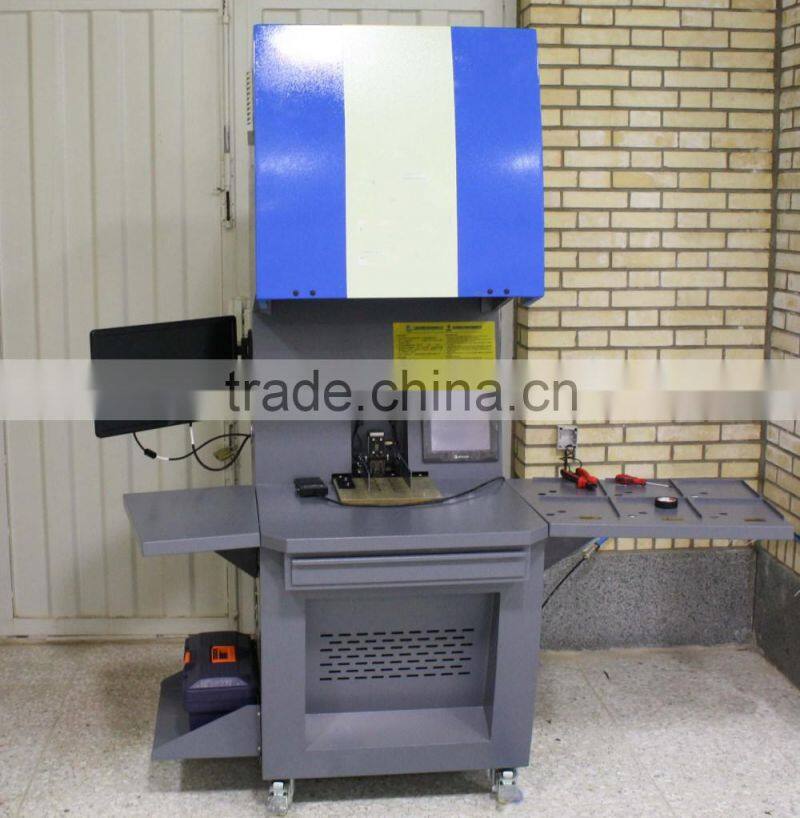

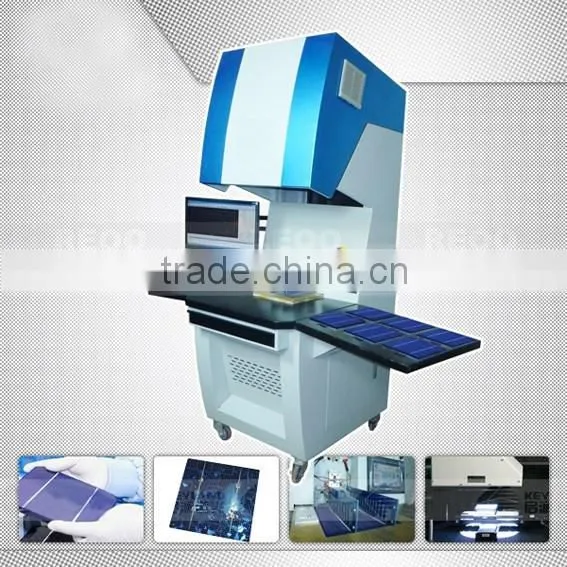

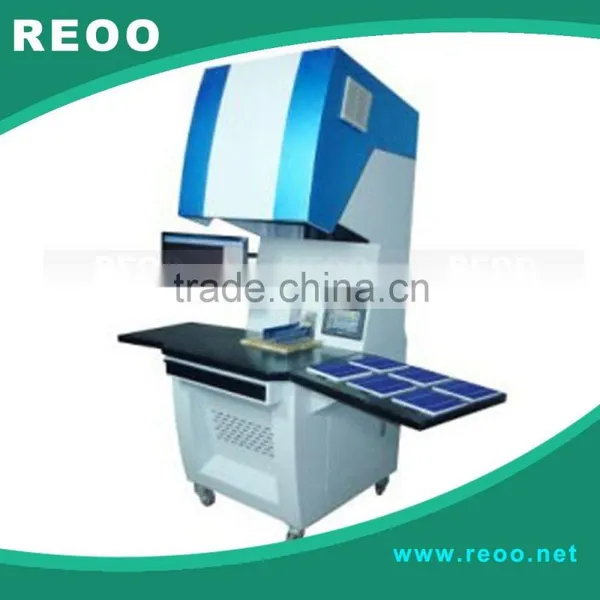

Solar cell tester

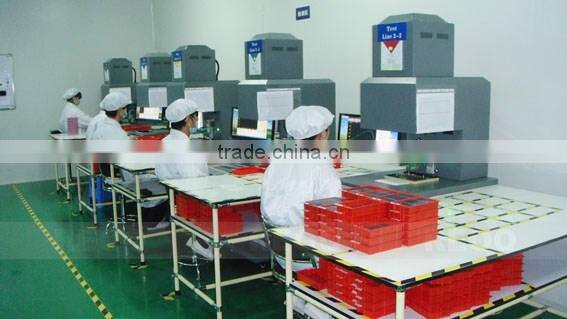

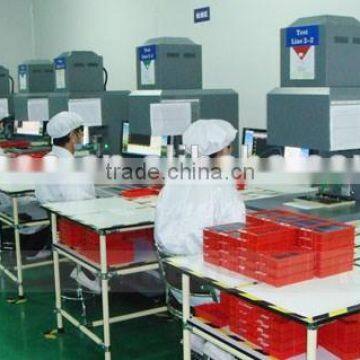

Be used for manufacture solar module, sort the solar cells
The main technical indicators
ITEM | SPECIFICATION |
The main technical indicators | |
Maximum solar cell area can be measure | 200mm × 200mm |
Light Source | |
Light uniformity | < ± 2.5% |
Intensity Instability | < ± 0.5% |
Intensity section range | 500 ~ 1250W/m2 |
Pulsed xenon lamp life | 3 million times |
Xenon lamp life | 50 million times |
Electrical Measurement | |
Voltage | 0 ~ 0.8V |
current | 0 ~ 12A |
Test Accuracy |
|
Voltage | 0.1% |
Current | 0.1% |
Repeatable test results | < ± 0.5% |
Single flash automatically measure IV curve and the fixed voltage and current | |
Data acquisition time | < 2ms |
The shortest test interval | 3s |
Overall dimensions | 38cm × 49cm × 70cm |
Power Supply | 220V ± 10% 5A |
Applied for solar cell testing & sorting. | |
Gross weight | 150kg |
Installation
We send engineer or technicians to buyers factory to install machine.
All expenditure on travel, food, accommodation and transportation of our engineers/ technicians for installation will be borne by buyer.
REOO company borne the salary of engineer.
Training
We supply both overseas and local training to the engineers and technicians on operation and maintenance.
buyer borne air tickets, lodging, food and training material .
Minimum 12 (twelve) months warranty of all products and services .
guarantee for the spares and required maintenance or replacement support are to be provided . Buyer borne the cost of the material for parts of maintenance.
Why buy solar panel production line from REOO technology ?
We have more experience for design, manufacturing, packing, shipping, installation, training, trial production in all of world.
We have more than 10 years experience for manufacture and export solar panel machines
Our engineer can install all of machines for making solar panel.
Our engineer can supply best technology.
We can train for all of machines.
We supply all tools and accessories for production, It is difficult be purchased in other countries. and these tools is free, Do not need money.
We can supply all of raw material for manufacture solar panel in good quality and lower price.
Please look the video from by REOO solar.
We can supply technical documents for apply TUV certificated. It is free.
Apply to the test and result record of mono-Si or poly-Si solar cell pieces.
Technology characters:
A grade spectrum;
A grade unevenness degree of irradiance;
A grade instability of irradiance;
Pneumatic and buffering contact, front probe contact, back contact;
Four-line survey;
10 parameters display; 8,000 data collecting dots;
Irradiance automatically compensating; Temperature automatically compensating;

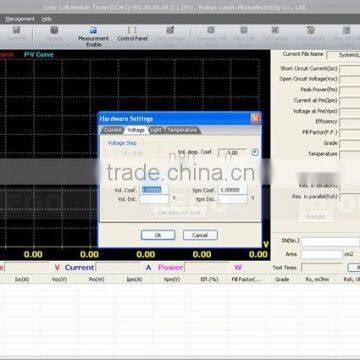

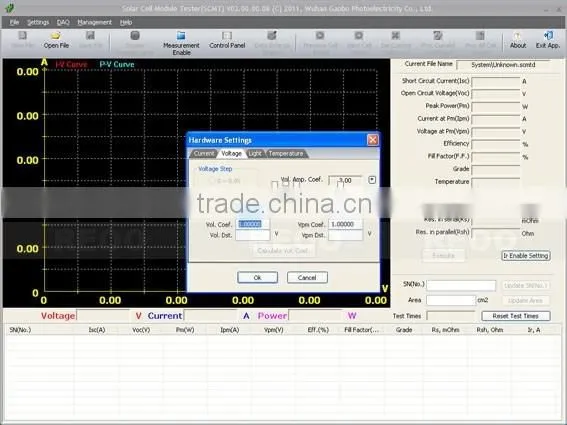

Measurement parameter displays in tabulation and graphic way;
Voice counts off and prompts; Counting prompt of flash times;
24hrs continuous working;
Working life of imported Xenon lamp is 300, 000 times of flash
