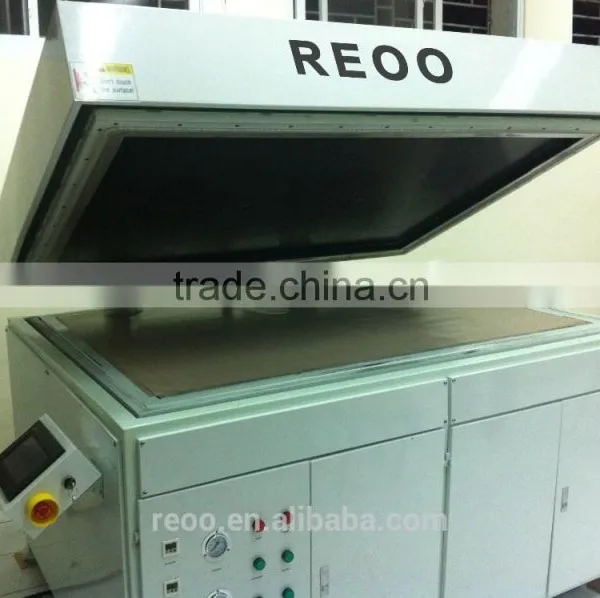

Solar module laminating machine
Be used for laboratory.
such as university and company's research department.
Can custom make.
New technology, Silicon heating conductor, Save electricity and good temperature, longlife.
Specification:
1.Semi-automatic solar module laminator;
2.PLC + Touch screen control;
3.Energy-saving laminator;
4.Operate,maintain easily.
5. Obtained ISO9001 and CE certification system already.
Technical parameter:
ITEM | SPECIFICATION |
Dimension | 1500mm x1300mm x 1230mm |
Laminating area | 1000mm x 1000mm |
Total power consumption | 17KW ( According to customer's need) |
Air source | 0.6 - 1.0 MPa. |
Operating mode | Manual / Automatic |
Control system | PLC |
HIM system | Touch screen |
Heating mode | Electrical Heating |
Temperature control system | PID intelligent temperature control system |
Temperature uniformity in working area | ≤ ± 2 ℃ |
Temperature control accuracy | ≤± 1 ℃ |
Temperature control range | 30℃ - 180 ℃ |
Pumping rate | 30 L/s |
Laminating time | 1 - 2 mins ( excluding sollidification time ) |
Heating rate | 135℃ at room temperature with 20 to 40 minute |
Vacuum rate | 70 L / S |
limit vacuum | 70 ~ 90 Pa |
vacuum Time | 60 seconds |
Silicone sheet size | 1200mm * 1200mm, 5 mm thickness |
Lid opening | by air |
Total weight | 2000kg |
Product capacity :
Installation
We send engineer or technicians to buyers factory to install machine.
All expenditure on travel, food, accommodation and transportation of our engineers/ technicians for installation will be borne by buyer.
REOO company borne the salary of engineer.
Training
We supply both overseas and local training to the engineers and technicians on operation and maintenance. buyer borne air tickets, lodging, food and training material .
Minimum 12 (twelve) months warranty of all products and services .
guarantee for the spares and required maintenance or replacement support are to be provided . Buyer borne the cost of the material for parts of maintenance.
Why buy solar panel production line from REOO technology ?
We have more experience for design, manufacturing, packing, shipping, installation, training, trial production in all of world.
We have more than 10 years experience for manufacture and export solar panel machines
Our engineer can install all of machines for making solar panel.
Our engineer can supply best technology.
We can train for all of machines.
We supply all tools and accessories for production, It is difficult be purchased in other countries. and these tools is free, Do not need money.
We can supply all of raw material for manufacture solar panel in good quality and lower price.
Please look the video from by REOO solar.
/watch?v=CyvKkhrFi5A&feature=youtu.be
We can supply technical documents for apply TUV certificated. It is free.
