Help CenterTF-6 and DN15-B Brass Thermostatic Radiator Valve
Related Products
Specifications
TF-6 and DN15-B brass thermostatic radiator valveTemperature range: 6~28C
Temperature regulation scale: *~5

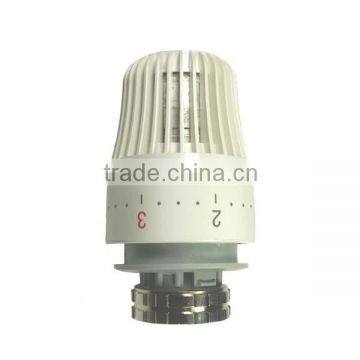

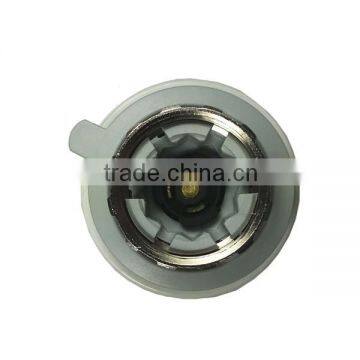

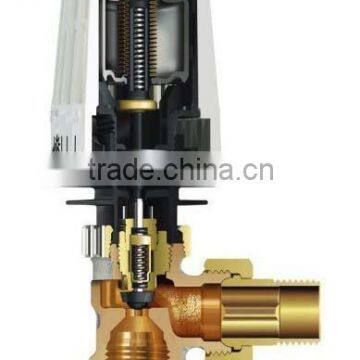

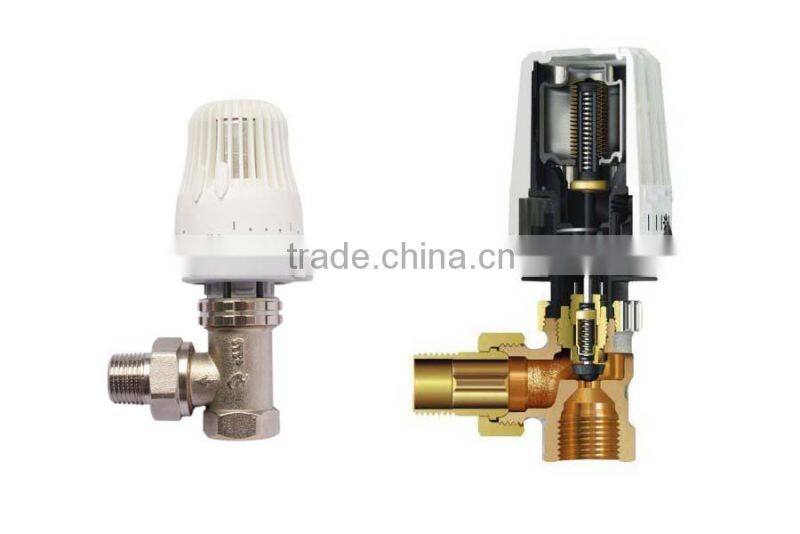

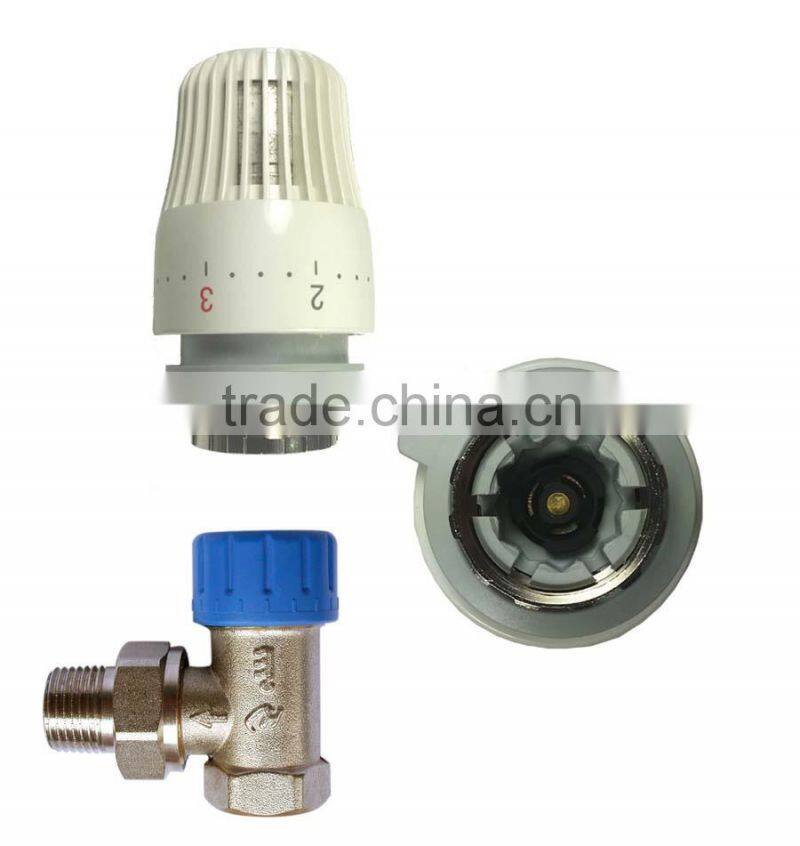

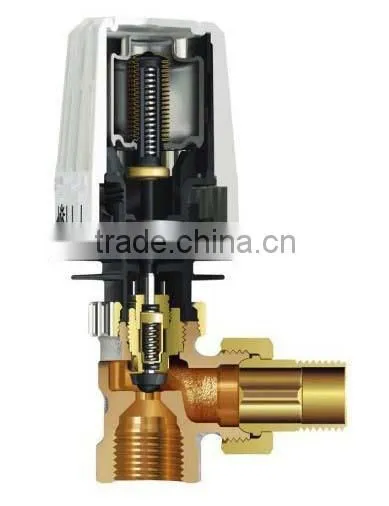

TF-6 and DN15-B brass thermostatic radiator valve
1.Model: TF-6 and DN15-B
2.Temperature range: 6~28C

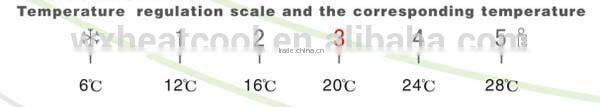

3.Temperature regulation scale: * ~ 5
4.Closing dimension: 12.4mm
5.Defrost protection: 6C
6.Maximum admissible static pressure: 1.0MPa
7.Maximum admissible differential pressure:0.1MPa
8.Maximum fluid temperature: 110C
9.Nominal flow rate: 265kg/h
10.Hysteresis(C): 0.5K
11. Differential pressure influence(D):0.5K
12. Water temperature influence(W):0.8K
13. Antifreeze position: 6C
14. Response time(Z): 23min
15.Installation size: M30x1.5 or M28x1.5
16.Horizontal direction
Liquid sensor inside:TMS-01
This product passed EN215 certificate.

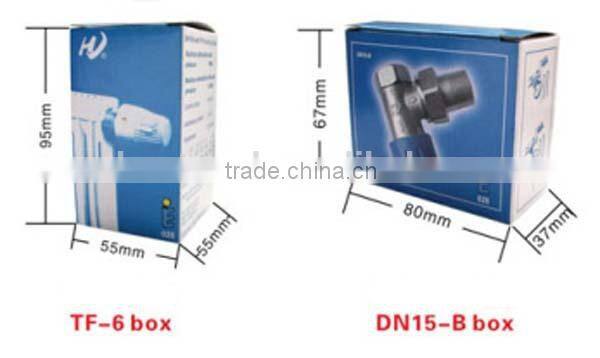

TF-6 Packing
Box size: 95x55x55mm
100pcs in a carton
Carton size:57.5x30x21cm
16KG/CTN
Pallet size: 92x118x104cm
2400PCS/PALLET
DN15-B Packing
Box size:67x80x37mm
50pcs in a carton
Carton size:37.5x24x24cm
14.5KG/CTN
Pallet size: 75x75x106cm
1200PCS/PALLET
We can also make OEM and ODM according to your requirements.
LOGO printing can be made as you need.
Established in 1988, the total area of our company is 6000 square meters, and 35% of our employees are technicians. We have standard workshop and advanced production and testing equipment.
We are a professional producer for different kinds of thermostats. In the past few years, we have developed many new products, such as thermostat valves, temperature pressure safety valves, boiler thermostats, pressure switches and flow switches.
We are ISO9001 approved and our products have got COC, CE, VED and ROHS approvals. Our thermostatic valve has passed the EN215 preliminary test and now we are applying for official approval.
We export products to more than 20 countries such as the USA, Canada, Germany, France, Italy, the UK, Russia and Hungary. We are also an OEM supplier for some famous international companies. Our production capacity is more than 2 million pieces annually. And our products are widely accepted by customers around the world. We registered the following brands: HUAHONG, YIREN, EVERHOT, HD and HEATCOOL
Question 1: Where is your factory?
Our factory is in Jiangsu Province China, city WUXI.
It will take one hour from SHANGHAI to our city by train.
You can also fly to WUXI from Guangzhou or Beijing, we have air port here in WUXI.
Question 2: Are you a manufactory?
Yes, we are a manufactory, we have more than 150 employees.
Question 3: Can you making new design for us? Or can you make thermostats according to the samples we given?
Yes, we can do OEM, ODM. We can make models for customers' new designs.
Question4: How long will it take for production?
For normal goods, it will take 20-30days for production usually. For new designs, it will take 40-60days for first order, as we need time for making new moulds.
Question5: Which port will the goods been shipped?
We usually ship goods from Port Shang or Port Ningbo.
