Help CenterThermostatic Radiator Valve
Negotiable
MOQ: 1000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Angle
Pressure:
High Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Standard or Nonstandard
Standard
Structure
Angle
Pressure
High Pressure
Power
Hydraulic
Material
Brass
Temperature of Media
Medium Temperature
Media
Water
Port Size
M30X1.5
Place of Origin
Jiangsu, China
Model Number
DN15-B
Brand Name
HD
Specifications
Application: Temperature control for radiator, energy saving.1/2" Angle Valve ,brass valve ,EN215 Certificate
Product Description
Temperature control for radiator, energy saving

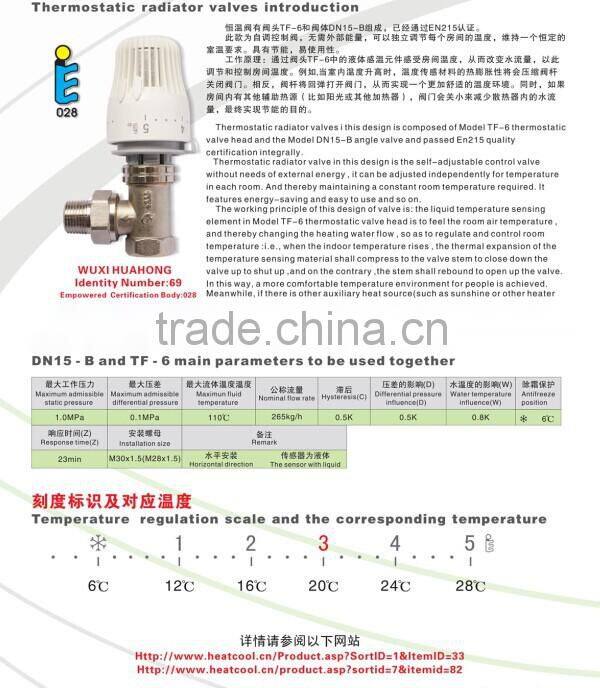

Technical Datas
| Model | DN15-B |
| Material | Brass |
| Certificate | EN215 |
| Temperature range | 6-28 C |
| Max.admissible static pressure | 1.0MPa |
| Max.admissble differential pressure | 0.1MPa |
| Max.fluid temperature | 110C |
| Nominal flow rate | 265 kg/h |
| Hysteresis (C) | 0.5 K |
| Differential pressure influencce(D) | 0.5 K |
| Water temperature influence(W) | 0.8 K |
| Antifreeze position | * 6 C |
| Response time (Z) | 23 min |
| Installation size | M30x1.5 |
Detailed Images
Related Products
Certificates
Payment Terms
Company Information
FAQ
1. Are you a factory or a trading company?
We are a factory, founded in 1988.
2. Wanrranty
One-year warranty with unartificial damages of the products.

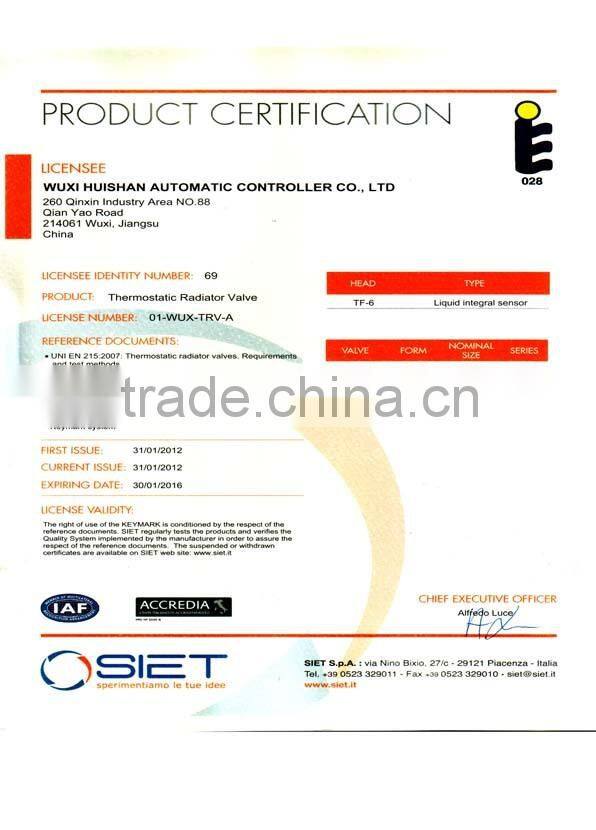

3. Any certificates of the product?
Asseble with TF-6 thermostatic head, EN215 approved.
4. Factory location
The factory is located in Wuxi city, 40 mis far away from Shanghai by railway.
