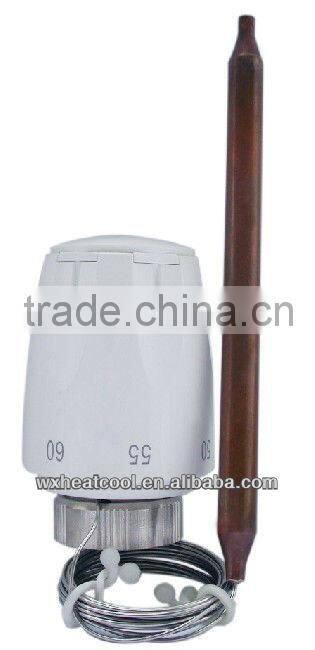

Thermostatic Head With Heimeier Style Liquid-filled Immersion Sensor TF-37/38

Specifications

Application :

Thermostatic head TF-37/38 with liquid-filled immersion sensor  to control the temperature .

With low pressure two-way reversing valve DN-15 -FXFT

Specifications:

Temperature range: 50~80 degree C(TF-37)
                                40~70 degree C (TF-38)

Max. Working pressure: 1.0Mpa

Max differential action of pressure: 0.1Mpa

Connection : M30× 1.5

Capillary lenght: 2000mm

Spindle height at the valve :12.2 mm

Settings:

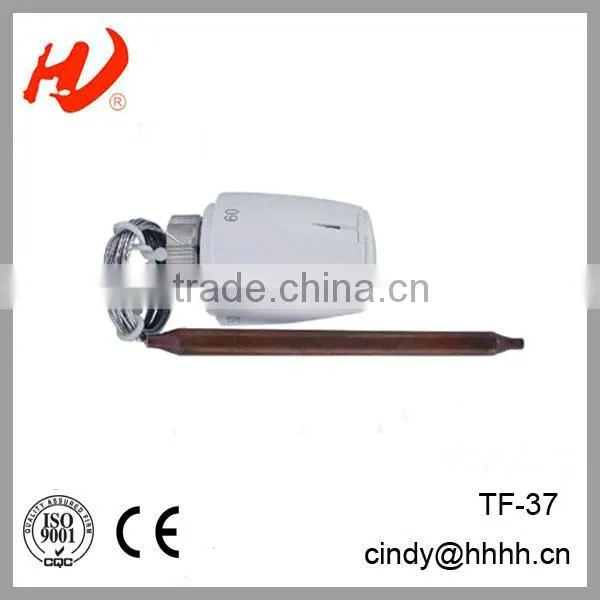

Model: TF-37

Figure                                  50     55     60     65     70     75     80

Setting value(degree C)       50              60              70              80

Model :TF-38

Figure                                  40     45     50      55     60     65     70

Setting value(degree C)       40             50               60               70
