Home > Metallurgy, Mineral & Energy > Non-ferrous Metal & Products > Nickel > Monel 400 Pipe/Nickel Alloy Pipe

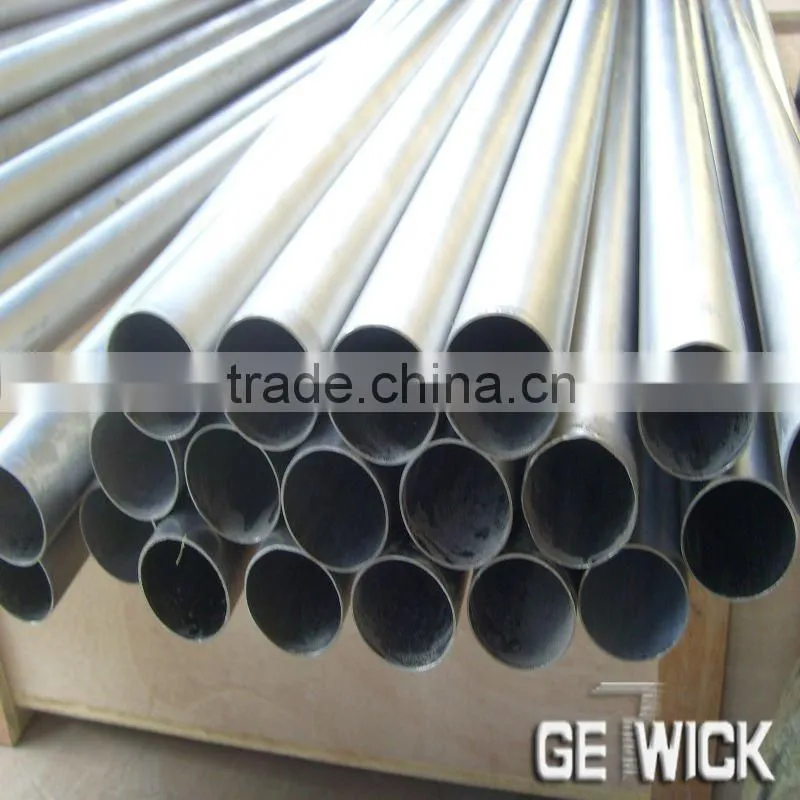

Monel 400 Pipe/Nickel Alloy Pipe
US$ 30 - 50
MOQ: 50 Kilograms
Key Specifications
Get Latest Price
Place of Origin:
Shaanxi, China
Type:
Nickel Pipe
Application:
chemistry,petrochemistry,ocean exploration
Payment & Shipping
Payment Methods:
Port of Shipment:
Xi'an/Tianjin/Shanghai/Hong Kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
C70600 Copper Nickel Pipe for SaleUS$ 15 - 50MOQ: 1 Kilogram -
Best Price Zirconium BarUS$ 75 - 130MOQ: 1 Kilogram
-
ASTM B521 Tantalum Tube PriceUS$ 720 - 1,000MOQ: 1 Kilogram
-
99.7% ASTM B265 Pure Titanium PlateNegotiableMOQ: 1 Kilogram
-
Wholesale Pure Tungsten CoilUS$ 1 - 1,000MOQ: 1 Kilogram
Place of Origin
Shaanxi, China
Type
Nickel Pipe
Application
chemistry,petrochemistry,ocean exploration
Grade
Nickel.Copper
Ni (Min)
62%
Powder Or Not
Not Powder
Model Number
Monel 400
Brand Name
GETWICK
Specifications
GETWICK Monel 400 Pipe1.material:Ni200,Ni201,monel, inconel
2.Standard:ASTM B161,ASTM B163
3.Certificate:ISO9001:2008
GETWICK Monel 400 Pipe
Chemical composition
Alloy |
% |
Ni |
Cu |
Fe |
C |
Mn |
Si |
S |
Monel400 |
Min. |
63 |
28 |
|||||
Max. |
34 |
2.5 |
0.3 |
2 |
0.5 |
0.024 |
Physical properties
Density |
8.83 g/cm³ |
Melting point |
1300-1390 °C |
minimum mechanical properties in the room temperature
Alloy state |
Tensile strength
Rm N/mm²
|
Yield strength R P0. 2 N/mm² |
Elongation A 5 % |
Monel400 |
480 |
170 |
35 |
Corrosion resistance
Monel 400 alloy in the fluoride gas, hydrochloric acid, sulfuric acid, hydrofluoric acid and their derivatives have a very good corrosion resistance property, and possess better corrosion resistance more than the copper alloy in the sea water. Acid medium: Monel 400 have corrosion resistance in less than 85% consistency of sulfuric acid. Monel 400 is an important material that resistant to hydrofluoric acid. Water corrosion: Monel 400 alloy in most corrosion cases of water, not only excellent corrosion resistance, but also less pitting, stress corrosion, the corrosion rate less than 0.025mm / a. High temperature corrosion: Monel 400 for the work of the highest temperature at about 600 °C in general in the air, in the high temperature steam, the corrosion rate less than 0.026mm / a. Ammonia: Monel 400 can be resistant to an hydrous ammonia and aminate conditions corrosion below 585 °C due to the high nickel.
Monel 400 alloy in the fluoride gas, hydrochloric acid, sulfuric acid, hydrofluoric acid and their derivatives have a very good corrosion resistance property, and possess better corrosion resistance more than the copper alloy in the sea water. Acid medium: Monel 400 have corrosion resistance in less than 85% consistency of sulfuric acid. Monel 400 is an important material that resistant to hydrofluoric acid. Water corrosion: Monel 400 alloy in most corrosion cases of water, not only excellent corrosion resistance, but also less pitting, stress corrosion, the corrosion rate less than 0.025mm / a. High temperature corrosion: Monel 400 for the work of the highest temperature at about 600 °C in general in the air, in the high temperature steam, the corrosion rate less than 0.026mm / a. Ammonia: Monel 400 can be resistant to an hydrous ammonia and aminate conditions corrosion below 585 °C due to the high nickel.
Application field
Monel 400 alloy is a multi-purpose material in many industrial applications:
1. Seamless water pipe in the power factory
2. Sea-water exchanger and evaporator
3. Sulfuric acid and hydrochloric acid environment
4. Crude distillation
5. Sea-water in the use of equipment and propeller shaft
6. Nuclear industry and used in the manufacture of uranium enrichment isotope separation equipment
7. Manufacturing hydrochloric acid equipment used in the production of pump and valve
