Specifications
Tungsten Crucibles for Growing Monocrystals1.Grade:W1
2.Purity:99.95%min
3.Capaity:50ml
Different dimensions are available
Tungsten Crucible specification |
1.Grade: W1
2.Purity: 99.95%min.
3.Capacity:50ml
4.Different dimensions are available
5.Dimension and tolerance
|
Delivery condition |
Specification |
Tolerance |
Thickness |
Roughness (um) |
||
Diameter |
Height |
Diameter |
Height |
|||
Sintering |
10~500 |
10~750 |
+/-5.0 |
+/-5.0 |
8~20 |
<3.5 |
|
Sintering finishing |
10~450 |
10~550 |
+/-0.5 |
+/-0.5 |
7~18 |
<2.5 |
6.Processing:
Item |
Process |
Equipment |
Quality Check |
1 |
Powder purified |
Purified furnace |
GDMS |
2 |
Isostatic pressing |
Isostatic pressing machine |
Measurement of rough-processed |
3 |
IF forging |
High-accuracy forging machine |
Dimension measurements for product |
4 |
IF sintering |
High temperature vacuum sintering furnace |
Dimension measurements for product |
5 |
Final machining |
High-accuracy turning machine |
Surface quality/ roughness and density |
6 |
Package |
|
Quality Test Report |
7.Tungsten crucible is widely applied in industry furnace such as sapphire growth furnace, quartz
glass melting furnace, and reare earth smelting furnace. The temperature in working environment
of tungsten crucible is above 2000°C. For sapphire crystal growth furnace, high-purity, high-density,
no internalcrack tungsten crucible with other features of exact measurement and smooth inner
surface has decisive influence on success ratio of seed growth, quality control of pulling crystal,
metamictization pot-committed and service life during sapphire growth process.

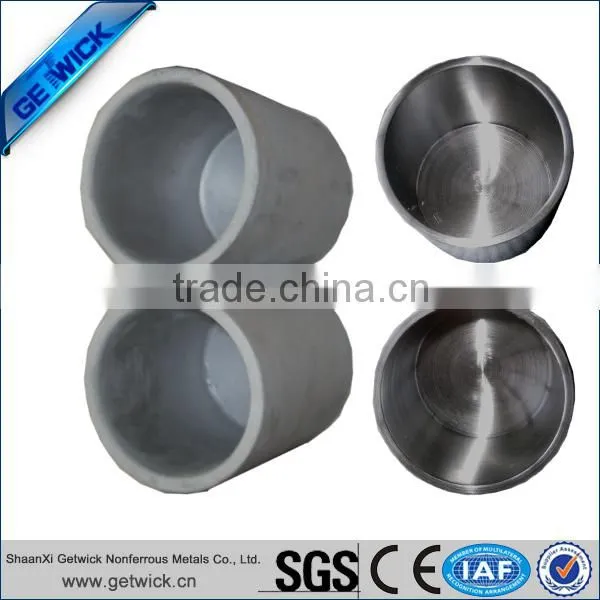

Tungsten Crucible photo shows |
