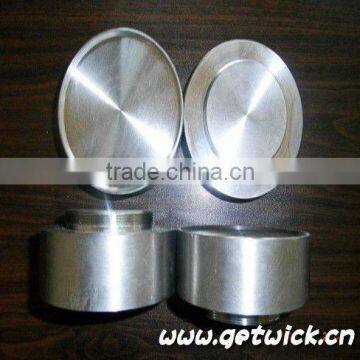

gr5 titanium alloy target
- 15000 Kilogram / Kilograms per Month
- xi'an/shang hai/tian jin/hongkong
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shaanxi, China | Brand Name | getwick | |
| Model Number | Gr1,Gr2,Gr3,Gr4,Gr5,Gr7,Gr9,Gr12 | Application | industrial,medical,etc | |
| Technique | Forged,then machine finished | Dimensions | as your requirement | |
| Grade | CP titanium and titanium alloy | Powder Or Not | Not Powder | |
| Ti Content (%) | 99.6% min |
Product Description
Specifications
gr5 titanium alloy targetMaterial:Gr1,Gr2,Gr5,Gr7,Gr9
2.Standard: ASTM B348/381
3.Size: Dia(50~900)XHeight(40~100)
gr5 titanium alloy target
1. Specification
Item name | Titanium Disc |
Standard | ASTM B381/348,F67/136,AMS 4928,DIN,JIS |
Material | Gr1,Gr2,Gr3,Gr5,Gr7,Gr9,Gr12 |
Quality control | Ultrasonic testing |
Packaging | Plywood case lined with foam or as per clients requirements |
Payment | T/T in advance or Irrevocable L/C at sight |
MOQ | 10Kg |
Leadtime | Within 10~20 days after deposit |
2. Manufacturable Scope
Product Names | Dimensions | Grade | Standards | ||
Outer Diameter | Inner Diameter | Height | |||
(mm) | (mm) | (mm) | |||
Disc | 50~150 | / | 20~140 | GR1,GR2,GR5,GR7,GR9,GR12,GR23 | ASTM B381 |
150~300 | / | 20~140 | |||
300~500 | / | 25~150 | |||
500~600 | / | 30~110 | |||
3.Chemical requirements
| N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
Gr 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
Gr 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
Gr 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
Gr 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
Gr 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
More details,pls fell free to contact me!
