Help CenterTantalum Round Bar
Related Products
Specifications
tantalum round barAvailable in a wide range including nut, screw, ring, wire, foil, sheet, rod, strip, plate, tube
tantalum round bar specification |
1.Introduction:
Tantalum is dark, dense, ductile, very hard, easily fabricated, and highly conductive of heat and electricity. The
metal is renowned for its resistance ,as the metal powder, is in the production of electronic components, mainly
capacitors and some high-power resistors. Tantalum electrolytic capacitors exploit the tendency of tantalum to form
a protective oxide surface layer, using tantalum powder, pressed into a pellet shape, as one "plate" of the capacitor,
the oxide as the dielectric, and an electrolytic solution or conductive solid as the other "plate". Because the dielectric
layer can be very thin (thinner than the similar layer in, for instance, an aluminium electrolytic capacitor), a high
capacitance can be achieved in a small volume. Because of the size and weight advantages, tantalum capacitors
are attractive for portable telephones, personal computers, and automotive electronics.
2.GB 14841 as follows:
| Type | Manufacturing Method | Supplying State. | Diameter | Length |
| mm | ||||
|
Ta1 Ta2 TaNb3 TaNb20 |
Forging |
Hard State
Annealed Condition |
3.0-6.5 | 500-1500 |
| >6.5-10.0 | 400-1500 | |||
| >10-18 | 300-1200 | |||
| Hot Forging State Annealed Condition | >18-25 | 200-2000 | ||
| >25-40 | 150-4000 | |||
| >40-50 | 100-3000 | |||
| >50-65 | 100-1500 | |||
| Extrusion | Hot Extrusion State Annealed Condition | 18-25 | 200-2000 | |
| >25-40 | 150-2000 | |||
| >40-65 | 100-500 | |||
|
FTa1 FTa2 |
Rolling |
Hard State
Annealed Condition |
3.0-5.0 | 500-1500 |
| >5.0-12 | 300-1200 | |||
3.Tolerance
| Diameter | Diameter Tolerance | Length | Tolerance | |||
| forging rod | Extruded Rods | rolling rod | ground rod | |||
| 3.0-4.5 | ±0.05 | - | ±0.05 | - | 500-1500 | + 5 |
| >4.5-6.5 | ±0.10 | - | ±0.10 | - | 500-1500 | + 5 |
| >6.5-10.0 | ±0.15 | - | ±0.15 | - | 400-1500 | + 5 |
| >10-16 | ±0.20 | - | ±0.20 | - | 300-1200 | + 5 |
| >16-18 | ±1.0 | - | - | ±0.30 | 200-2000 | + 20 |
| >18-25 | ±1.5 | ±1.0 | - | ±0.40 | 200-2000 | + 20 |
| >25-40 | ±2.0 | ±1.5 | - | ±0.50 | 150-4000 | + 20 |
| >40-50 | ±2.5 | ±2.0 | - | ±0.60 | 100-3000 | + 20 |
| >50-65 | ±3.0 | ±2.0 | - | ±0.80 | 100-1500 | + 20 |

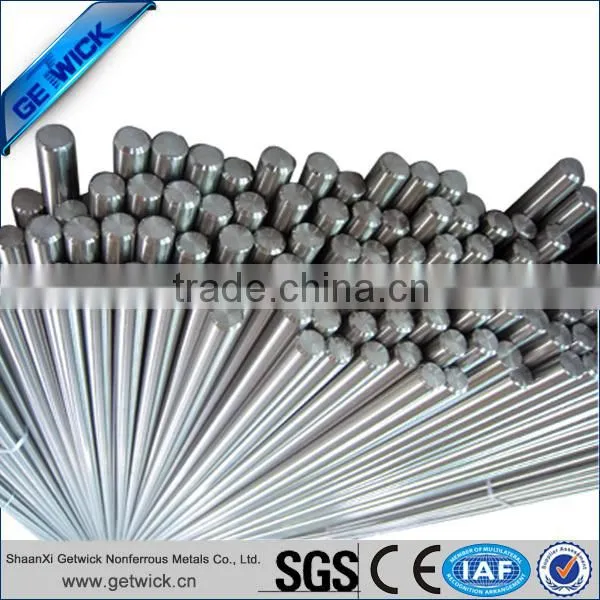

tantalum round bar photo shows |
Why Choose GETWICK? |
1 |
More than 3000 products are available. |
2 |
An ISO9001:2008,ISO14001,CE Certified. |
3 |
Offer you professional rare metal products and customized services. |
4 |
We feedback in 24 hours online and provide professional advice on products. |
5 |
With an annual output of 300 MT of tungsten & molybdenum and other precious metals. |
6 |
More than six years experiences, Winning customers ’trust and satisfaction from all over the world. |
About GETWICK Certificate |
About GETWICK Factory |
Packaging information |
Type of payment |
Welcome to visite our company and make cooperation~~
Choose Getwick,Choose quality
Choose Getwick,Choose Service
Choose Getwick,Choose Speed
