Tantalum Bar ASTM B365

Name: Tantalum Bar ASTM B365
Brand: getwick
SKU: 112084817
Availability: InStock

Shaanxi Getwick Nonferrous Metals Co., Ltd.

US$ 800 - 1,000 MOQ: 1 Kilogram

Key Specifications

Place of Origin:

Shaanxi, China

Brand Name:

getwick

Model Number:

Ta1 Ta2 TaNb3 TaNb20 FTa1 FTa2

Payment & Shipping

Payment Methods:

Port of Shipment:

shang hai/tian jin/xi'an/hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shaanxi, China

Brand Name getwick

Model Number Ta1 Ta2 TaNb3 TaNb20 FTa1 FTa2

Application mainly used in electronic componen...

Shape round

Material Ta2 TaNb3 TaNb20 FTa1 FTa2

Dimensions GB 14841,ASTM B 365,etc

Chemical Composition 99.95%,99.99%

Specifications

tantalum bar ASTM B365
standard:ASTM B365
RO5200,RO5400 RO5252 (Ta-2.5W) RO5255 (Ta-10W)
purity:99.95%,99.99%
ISO9001:2008

tantalum bar ASTM B365 specification

Tantalum is dark, dense, ductile, very hard, easily fabricated, and highly conductive of heat and

electricity. The metal is renowned for its resistance ,as the metal powder, is in the production of

electronic components, mainly capacitors and some high-power resistors. Tantalum electrolytic

capacitors exploit the tendency of tantalum to form a protective oxide surface layer, using tantalum

powder, pressed into a pellet shape, as one "plate" of the capacitor, the oxide as the dielectric,

and an electrolytic solution or conductive solid as the other "plate". Because the dielectric layer

can be very thin (thinner than the similar layer in, for instance, an aluminium electrolytic capacitor),

a high capacitance can be achieved in a small volume. Because of the size and weight advantages,

tantalum capacitors are attractive for portable telephones, personal computers, and automotive electronics.

Type	Manufacturing Method	Supplying State.	Diameter	Length
			mm
Ta1 Ta2 TaNb3 TaNb20	Forging	Hard State Annealed Condition	3.0-6.5	500-1500
			>6.5-10.0	400-1500
			>10-18	300-1200
		Hot Forging State Annealed Condition	>18-25	200-2000
			>25-40	150-4000
			>40-50	100-3000
			>50-65	100-1500
	Extrusion	Hot Extrusion State Annealed Condition	18-25	200-2000
			>25-40	150-2000
			>40-65	100-500
FTa1 FTa2	Rolling	Hard State Annealed Condition	3.0-5.0	500-1500
			>5.0-12	300-1200

Tolerance

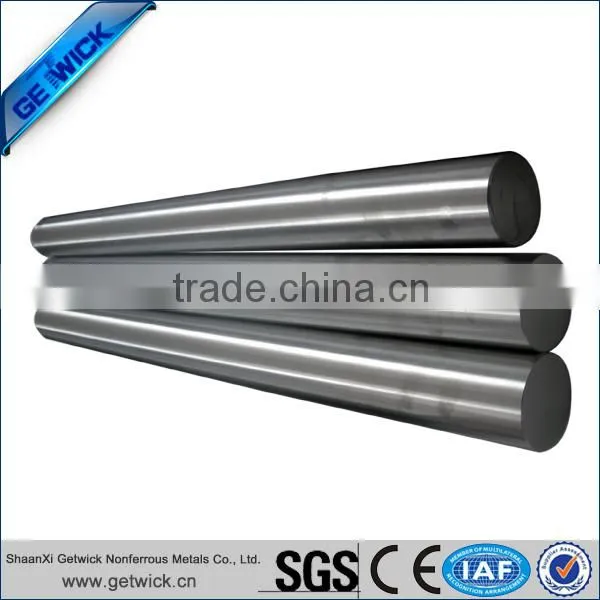

tantalum bar ASTM B365 photo shows
