Wear Impact Resistant Ceramic Rubber Liner

Name: Wear Impact Resistant Ceramic Rubber Liner
Brand: Kingcera
Availability: InStock

FOB Price

US$ 125 - 140 / Piece

5 Pieces(Min. Order)

Port shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Hunan, China	Type	Ceramic Plates
Material	Alumina Ceramic
Model Number	NMC-JT	Brand Name	Kingcera

Product Description

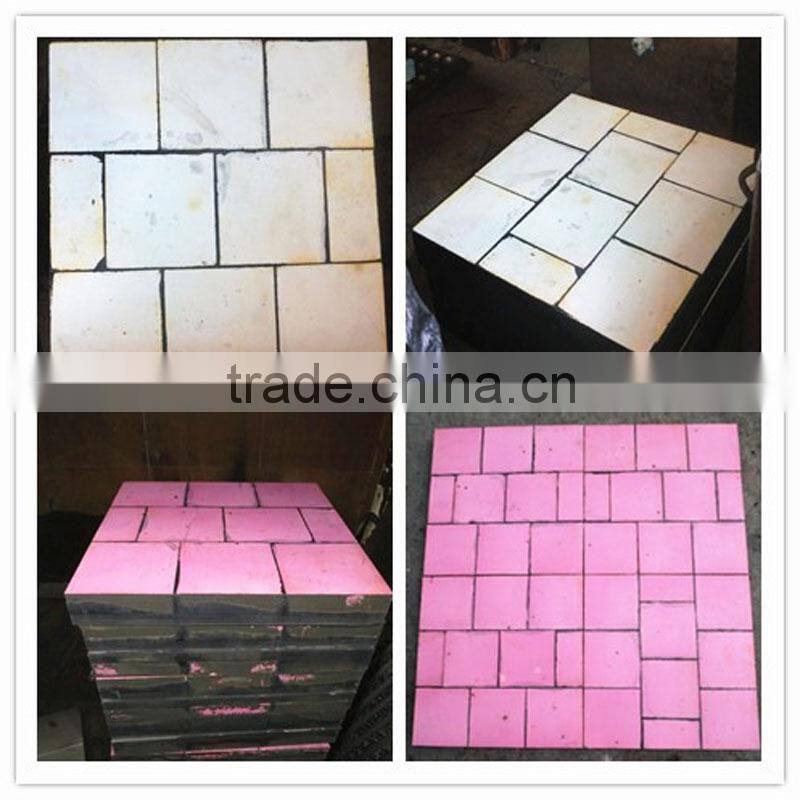

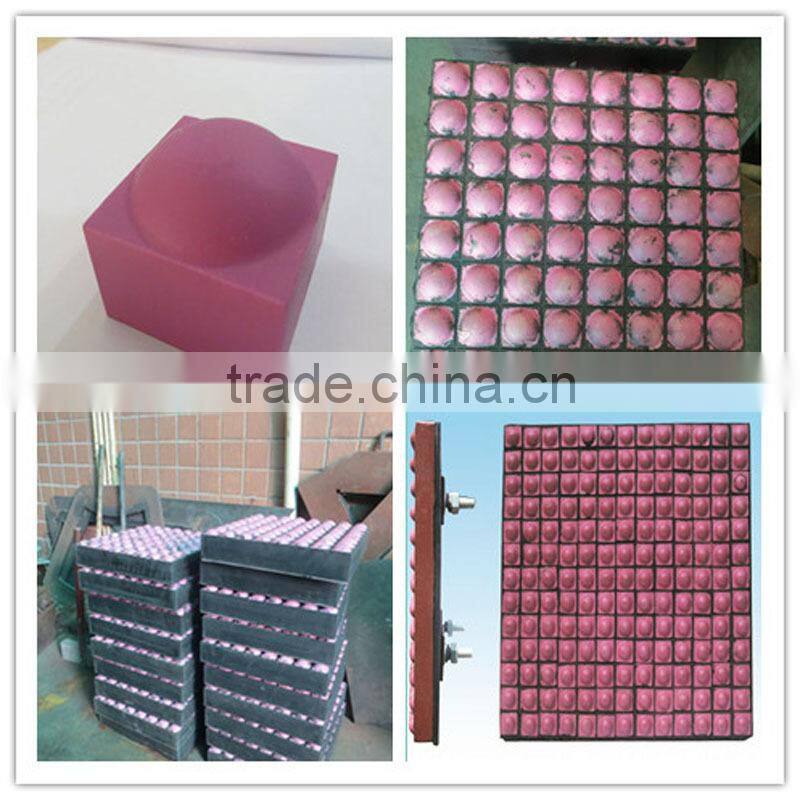

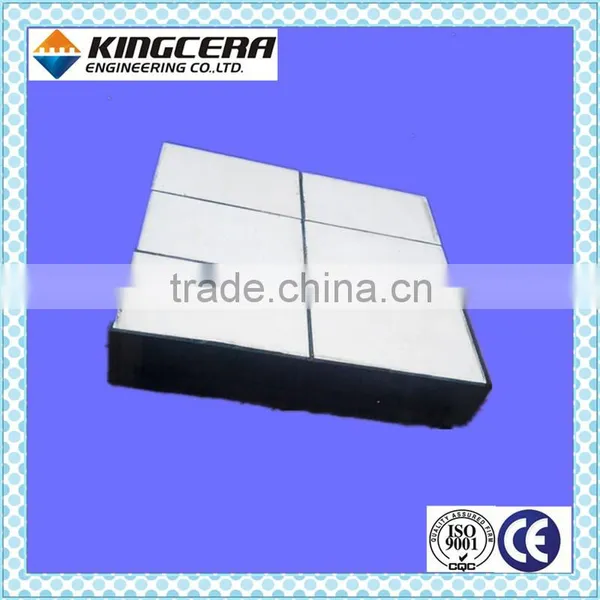

Alumina ceramic rubber liner

Our 95% Abrasion Resistant Ceramic rubber liner are designed and manufactured by vulcanizing our 95 % alumina tiles into the rubber backing.

Kingcera wear &impact resistant ceramic rubber liner are excellent in high

impact /abrasion applications to absorb impact while also offering excellent sliding abrasion resistance.Wear Resistant Ceramic Tile Rubber Backed Ceramic Mats are easily installed by means of bonding directly to steelwork. The mechanical method with bold also.

We also provide our industrial and mining clients with other superior wear, corrosion and shock resistance solutions.Combined this with sourcing and related wear protection services and you're sure to experience complete customer satisfaction!

Kingcera is taking a leadership position in the area of wear protection and Occupational Health and Safety.Our Mining professional service and great quality in Australia have encouraged you to consider buying Rubber Backed Ceramic Mat Wear Resistant Lining Wear Plate Supplies from us!

Applied industry:

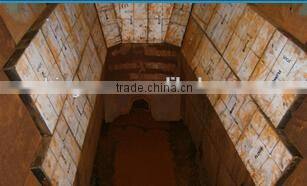

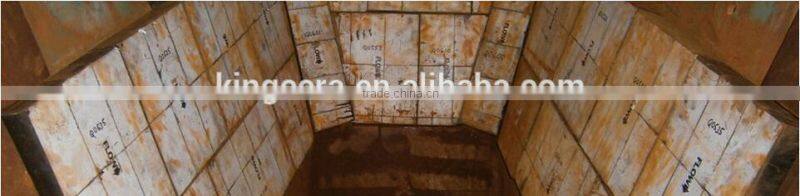

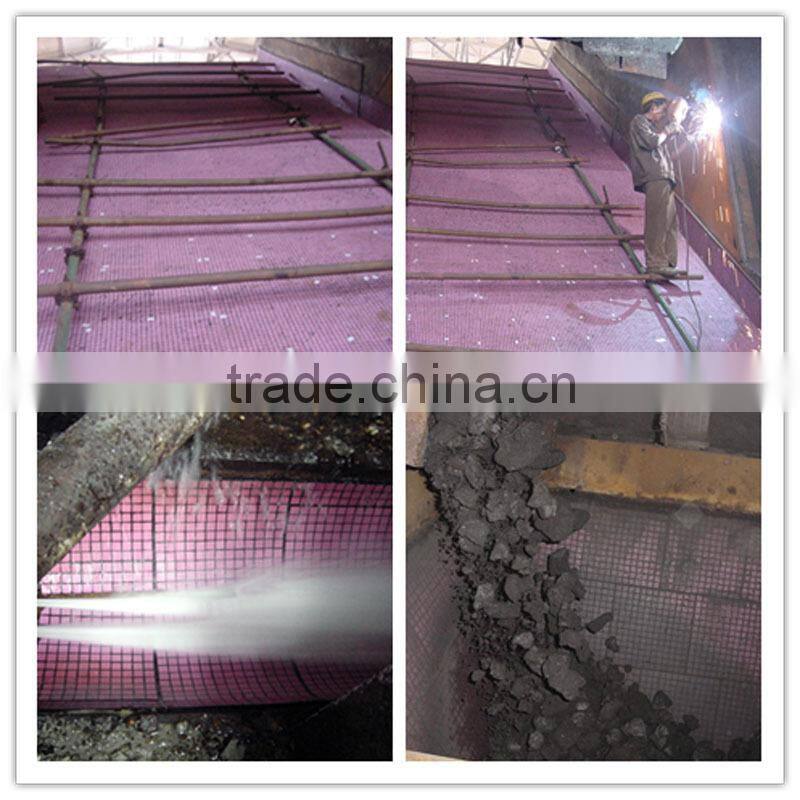

The abrasion/impact resistant ceramic rubber lining mats are widely used in the mining milling,smelting,port , cement ,steel ,chemical , coal fired thermal power plant .

Advantages:

1. Superior wear resistance

2. Chemical and impact resistance

3. Erosion, acid, alkali resistance

4. Smooth inner wall

5. Easy installation

6. Longer service lifetime

7. Competitive and reasonable price

8. Saved maintenance time and expenditures

The technical specifications of abrasion-resistant alumina ceramic lining

The performence	Content of AL₂O₃	≥95%
	Density	≥3.6 g/cm³
	Rockwell hardness	≥85 HRA
	Rupturing toughness	≥5.0MPa.m1/2
	Compression-resistant strength	≥850MPa
	Bend-resistant	≥290MPa
	Pull-apart strength(MPa)	≥7.5
	Pull-apart prolongation(%)	≥300
	Shore hardness	55-65
	Permanent deform(%)	≤24
	Adhesion of the adhesive agent and the ceramic(MPa)	≥3.0
	The form service life of the adhesive agent	≥15
	Temperature-resistant	≤250°C
	Coefficient of conducting heat.	20w/m.k
	The performance to be nonflammable	excellent
	Coefficient of heat-expandability	7.2×10-6m/m.K

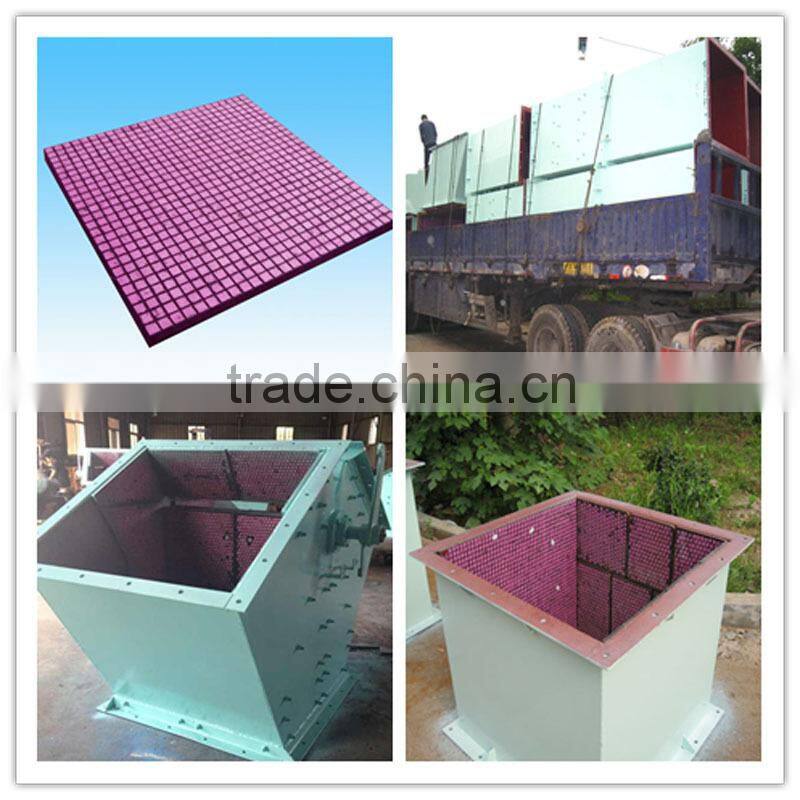

Size for Mining chute and hopper:

25025015mm	(10mm ceramic on 5mm rubber)
50050015mm	(10mm ceramic on 5mm rubber)
50050030mm	(20mm ceramic on 10mm rubber)
300300063mm	(50mm ceramic on 13mm rubber)
30230232mm	(20mm ceramic on 12mm rubber)

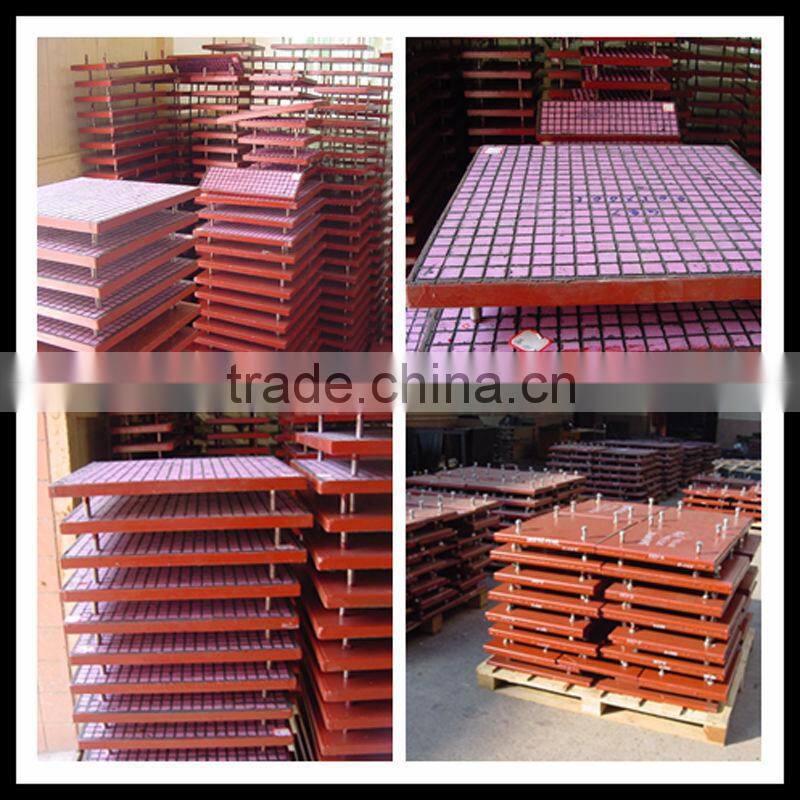

30230262mm	(50mm ceramic on 6mm rubber,6mm steel backing plate)
44429232mm	(20mm ceramic on 8mm rubber,4mm steel backing plate)
14029232mm	(20mm ceramic on 8mm rubber,4mm steel backing plate)
29229232mm	(20mm ceramic on 8mm rubber,4mm steel backing plate)
30230232mm	(20mm ceramic on 8mm rubber,4mm steel backing plate)

Size for material handling/feeding system:

Type	ceramic tiles(mm)	Linging size(mm)
NMC-J1	17.8×17.8×5	250×250×10
NMC-J2	17.8×17.8×7	250×250×14
NMC-J3	17.8×17.8×3	250×250×6
NMC-J4	15×17.5×3	500×500×6
NMC-J5	17.5×17.5×8	250×250×15
NMC-J6	17.8×8.9×3	250×250×9
NMC-J7	17.8×8.9×5	250×250×10
NMC-J8	17.8×17.8×5	500×500×9
NMC-J9	17.8×8.9×2	250×250×4
NMC-J10	17.8×17.8×8	250×250×18
NMC-J11	17.8×17.8×2	250×250×4
NMC-J12	17.8×17.8×3	250×250×5
NMC-J13	17.8×17.8×3	250×232×14
NMC-J14	17.8×8.9×5	250×250×8
NMC-J15	17.8×8.9×7	250×250×9
NMC-J16	17.8×8.9×7	250×250×10
NMC-J17	17.8×8.9×7	250×250×11
NMC-J18	17.8×17.8×10	250×250×16
NMC-J19	10×10×3	250×250×5

]
