Wear Impact Resistant Mining Hopper Bins Chute Alumina Ceramic Rubber Liner

Hunan Kingcera Special Ceramic Co., Ltd.
Wear Impact Resistant Mining Hopper Bins Chute Alumina Ceramic Rubber Liner thumbnail-1
Wear Impact Resistant Mining Hopper Bins Chute Alumina Ceramic Rubber Liner thumbnail-2
Wear Impact Resistant Mining Hopper Bins Chute Alumina Ceramic Rubber Liner thumbnail-3
Wear Impact Resistant Mining Hopper Bins Chute Alumina Ceramic Rubber Liner thumbnail-4
Wear Impact Resistant Mining Hopper Bins Chute Alumina Ceramic Rubber Liner thumbnail-5
Wear Impact Resistant Mining Hopper Bins Chute Alumina Ceramic Rubber Liner photo-1
Wear Impact Resistant Mining Hopper Bins Chute Alumina Ceramic Rubber Liner photo-2
Wear Impact Resistant Mining Hopper Bins Chute Alumina Ceramic Rubber Liner photo-3
Wear Impact Resistant Mining Hopper Bins Chute Alumina Ceramic Rubber Liner photo-4
Wear Impact Resistant Mining Hopper Bins Chute Alumina Ceramic Rubber Liner photo-5
US$ 50 - 10,000,000 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Type:
Ceramic Plates
Application:
Industrial Ceramic, thermal power plant ,coal ,cement ,mining,steel
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hunan, China
Type Ceramic Plates
Material Alumina Ceramic
Model Number NMC-J
Brand Name Kingcera

Mining bins hopper alumina rubber liner





Wear impact resistant mining hopper bins chute alumina ceramic rubber linerWear impact resistant mining hopper bins chute alumina ceramic rubber linerWear impact resistant mining hopper bins chute alumina ceramic rubber liner

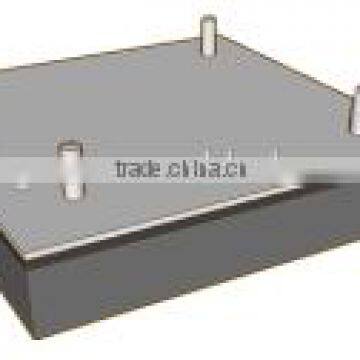

Kingcera ceramic rubber composite liner are comprised of ceramic tiles,moulded in a high

tensile strength natural rubber matrix, and moulded on 6mm steel backing plates.

All rubber ceramic liners are hot vulcanized together using specialized equipment

which provides a bonding strength that exceeds the tensile strength of the natural rubber matrix. As a result the ceramics will remain in the rubber matrix, offering

consistent wear&impact protection across the entire life of the liner.What's more,

All materials are manufactured in accordance with ISO9001 quality.



Kingcera ceramic rubber composite liner are excellent in high impact abrasion

applications to absorb impact while also offering excellent sliding abrasion

resistance.Kingcera ceramic rubber composite liner are easily installed by studs

nuts to connect.





Applied industry:

The abrasion/impact resistant ceramic rubber composite liner are widely used in

the mining,steel milling,smelting,port ,cement ,coal,chemical,coal fired thermal

power plant .Especially applied in the chute,material bins/hoppers,skirt

liners and bucket wheel Stacker&Reclaimers.



Wear impact resistant mining hopper bins chute alumina ceramic rubber liner



Advantages:

1. Superior wear&impact resistance

2. Easy installation

3. Much longer service lifetime

4. Competitive and reasonable price

5. Saved maintenance time and expenditures





The technical specifications for wear-resistant ceramic rubber composite liner





The performence

Content of AL2O3

≥95%

Density

≥3.6 g/cm3

Rockwell hardness

≥85 HRA

Rupturing toughness

≥5.0MPa.m1/2

Compression-resistant strength

≥850MPa

Bend-resistant

≥290MPa

Pull-apart strength(MPa)

≥7.5

Pull-apart prolongation(%)

≥300

Shore hardness

55-65

Permanent deform(%)

≤24

Adhesion of the adhesive agent and the ceramic(MPa)

≥3.0

The form service life of the adhesive agent

≥15

Temperature-resistant

≤250°C

Coefficient of conducting heat.

20w/m.k

The performance to be nonflammable

excellent

Coefficient of heat-expandability

7.2×10-6m/m.K



Lining size:





Item No



Dimensions(mm)

Weight(KG)





A(±1)

B(±1)

C(±1)

D(±1)

E(±1)

F(±1)



G-A1

302

302

63

50

7

6

23.1

G-A2

452

302

63

50

7

6

34.8

G-A3

302

402

63

50

7

6

30.1

G-B1

302

152

63

50

7

6

11.6

G-B2

402

152

63

50

7

6

15.4

G-B3

502

152

63

50

7

6

19.3

G-C1

302

202

63

50

7

6

15.4

G-C2

452

202

63

50

7

6

23.1

G-D1

302

102

63

50

7

6

7.7

G-E1

452

402

63

50

7

6

46.4



Wear impact resistant mining hopper bins chute alumina ceramic rubber liner
