Putzmeister DN125 Wear&Impact Resistant Concrete Pump Boom Pipe

Specifications

PM DN125 Concrete Pump Boom Pipe
Patent products
Manufacturer
ISD9001 and CE
Sany,Putzmeister .Zoomlion,Schwing

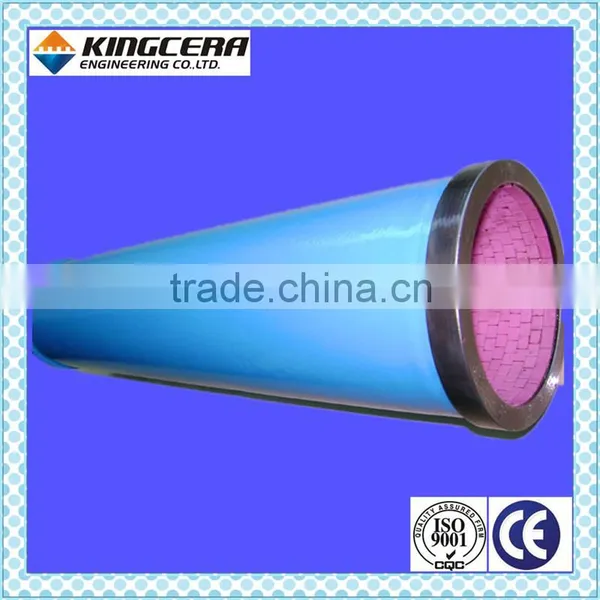

DN125 Wear resistant Concrete Pump Boom Pipe



This is our patent product, our alumina and zirconia ceramic tiles are super abrasive.

We use our abrasion resistant ceramic tile lined into the inner wall of the seamless carbon steel concrete pump boom pipes.



We are able to provide all different types of ceramic lined concrete pump boom pipes and special installations.



We can also make the standard and nonstandard ceramic lined concrete pump boom pipes according to customers’requirement.



The advantages of alumina ceramic lined concrete boom pump pipe



1. The weight is lighter than normal pipe.

2. Competitive and reasonable price

3. Saved maintenance time and expenditures

4. KCPP pipes can transport the concrete up to 80000 cube meters. It is five times than normal manganese steel elbows.
5. The inner side material is the high alumina ceramic, Hardness up to 88HRA, next to the diamond,because of the smooth surface ,it can avoid the jam during the transport of concrete.

6. The outside material is the seamless steel, it has been tested safety.
7. It is standard flange connection, easy for installation.
8. It can reduce the repairing frequency as well as reduce the operators’ working strength.



Specifications:

Parts No.: KCPP

Size: DN125-5 1/2"



Length:500-3000mm

End collars: 148mm

Materials: Alumina and zirconia ceramic lined seamless carbon steel elbow

Concrete pumping capacity: Up to 80000 Cubic meter concrete

Other sizes and ends upon request



Reporting for the wear resistant abilities



Item	Conditions			Result
	Rotate speed	Loading	Time	Abrasion ratio	Abrasion volume
1.high-chrome	800r/min	76N	30min	0.1534	0.0038
2.Manganese	800r/min	76N	30min	0.2945	0.0059
3.Kingcera abrasion resistant ceramic	800r/min	76N	30min	0.0196	0.0004



In the condition of P=76N, n=800round/min, t=30, calculating in abraded mass, the abrasion resistant ability of Kingcera ceramic is about 9.5 times than the high chrome , 15times than the manganese steel.



The technical specifications ceramic lined concrete pump pipe



Item	Density	Rockwell Hardness	Vickers Hardness	Abrasive Ratio	Rupturing Toughness	Compression-resistant strength
Fine Alumina Ceramic	≥3.8	≥88HRA	≥1100HV10	≤0.01	≥5.0MPa.m1/2	≥950 MPa
Zirconia Ceramic	≥5.8	≥88HRA	≥1100HV10	≤0.008	≥7.5MPa.m1/2	≥1100Mpa
