Help CenterDigital Presettable Counters
Related Products

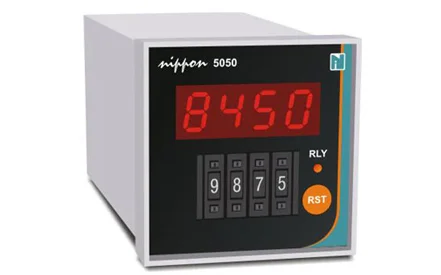

Anupam's 5050-B, 5050 & 5050-6 are unique digital Presettable Counters with and without memory having wide applications in textile Industries for meter counting, Pharmaceutical - chemical - Food Industries for event counting, packing machinaries, machine tool engineering for stroke counting and many other areas where accurate counting is involved.
WORKING
Instrument accepts signals from Photo Sensors, Proximity Switches, Limit Switches, Contact closures, Encoders, Voltage Pulses .... etc.... Instrument can work upto 2 KHZ.. of switching frequency.
The Incoming signal is filtered, conditioned, wave shaped with help of filters and choppers. The signal is fed to Synchronous counter I.C. which drives seven segment display. At the same time signal is compared with set value. At the set point relay change over takes place. The Relay can be operated in Delayed On, Delayed Off, Auto Reset modes as per the application.
Features
- Cent Percent accuracy.
- Modular design in DIN size box.
- Accepting wide range of inputs.
- Bright Display.
- Memory in case of Power failure.
Specifications
| Element Type | Specification |
| Range | 0-99, 999, 9999, 99 99 99 Counts. |
| INPUTS | Limit Switches, Proximity Switches, Photo Sensors, Encloder,Voltage Pulses, Contact Closures....etc... |
| MAXIMUM FREQUENCY | Upto 2 KHZ. |
| COUNTING ACCURACY | Cent - Percent. |
| DISPLAY | 3, 4 or 6 digit bright Seven Segment display. |
| LIMIT SETTING | By Thumbwheel Switches. |
| LOGIC | Delayed On, Delayed Off, Auto reset, Auto reset with timer. |
| MODE | Count Up. (Count Down on request) |
| OUTPUT | Relay (O.E.N.) Changeover rated at 230 V/6A. |
| SUPPLY | 30 VAC ±10 %, 50 Hz. |
| Box | 96 (H) X 96 (W) X 180 (D), mm DIN size box with modular system. Also available in 72 (H) X 72 (W) X 110 (D) mm |
| Packaging | As per your Requirement |
| Shipping | As per your Requirement |
With the mindset of adherence to quality standards, Anupam Heaters is the 1st Indian Heater Manufacturing company to undergo audit for Quality Management System by Lloyd's Register and achieved certification under ISO 9001-2000. Currently certified under ISO 9001-2008, we take great pride to inform that our products are also meeting the European Safety Standard EN60335-1 “CE-Mark”.
Company History
Established in 1984 & Pioneers in developing Ceramic Band Heaters in India, Today we are one of the leading Indian companies to manufacture wide range of quality Heating elements for Plastic & Other Allied Industries. Since our inception, we have established a strong foothold in the Indian & Overseas market.
