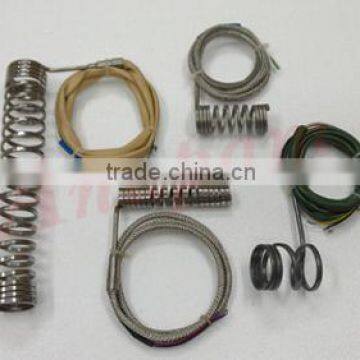

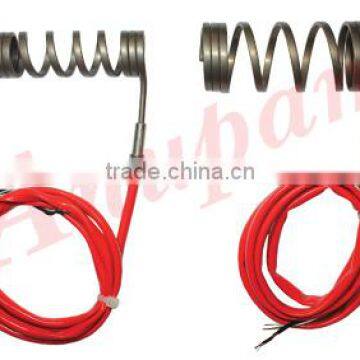

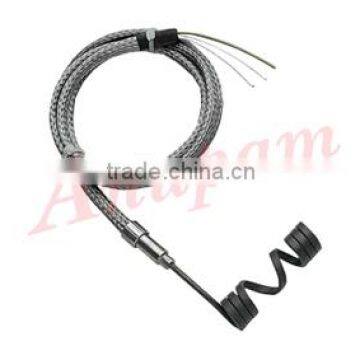

Micro Tubular Heaters
- 0 per Month
- MUMBAI PORT
- T/T
- Heater Core Heater Welding Gun Heater Element
- Industrial Diesel Heater /Agricultural Vegetable Planting/Aquaculture Industry Heater
- Preheating equipment for hardbandig welding
- Heater Core Heater Welding Gun Heater Element
- DL-3 model electric air heater with upper outlet and lower inlet
- DL-2 model electric air heater with Left-Right Circulation
Product Details
Condition: | New | Type: | Other, Hotrunner Heater | Power Source: | Electric |
Brand Name: | Anupam | Model Number: | Anupam | ||
Dimension(L*W*H): | Customized | Weight: | As per Dimensions | Voltage: | Upto 250V |
Power(W): | Customized | Certification: | CE Certification Available | Warranty: | One Year Against Manufacturing Defects |
After-sales Service Provided: | No overseas service provided |
Product Description
Anupam's Micro Tubular Heaters are manufactured in round, square or rectangular section to guarantee the greatest thermal exchange keeping an excellent efficiency and a good reliability.
These heaters can be manufactured with built in thermocouple J or K type.
Construction :
The resistive wire is uniformly distributed in a compacted MgO insulation, with a CrNi-steel outer protection sheath.
The heaters are annealed after manufacturing, thus acquiring a high malleability that allows their being subsequently bent into any complex shape, with extremely narrow bending radius.
Applications
- For heating the nozzles of Injection Molding Machines.
- Thin Walled Container Moulds.
- Hot Runner Nozzles & Bushings.
- PET Preformed Moulds.
- Packaging industry.
- Welding bars.
- Rolls' heating.
- Disks' heating.
- Plates' heating.
Features
- A very wide contact surface results in exceptionally high levels of thermal conductivity towards the body that needs to be heated.
- Optimal insulation results in very long life duration.
- Heavy-duty construction results in very high resistance to mechanical shocks.
- Operation temperature up to 750°C (1300°F).
- Optional built-in thermocouple for high-resolution temperature measuring (J-type standard; K-type on request)
Specifications
- Voltage : Upto 250V
- Watt Density : Max. 15 W/sq. cm or 100 W/sq. inch
- Section : 3.3 , 4 , 3 x 3 , 4 x 4 , 2.2 x 4.2 , 4 x 6 , 4.6 x 8.6
- Surface Temp. : Max. 750° C / 1380° F
- Thermocouple : Available with inbuilt J or K type
- High Voltage Test (Cold) : 800V (AC)
- Insulation Resistance (Cold) : ≥ 5MΩ
- Leakage current (Cold) : ≤ 0.5mA for 250V AC
- Diameter Tolerance : ± 0.15mm
- Length Tolerance : ± 5%
- Wattage Tolerance : ± 10%
Ordering Information
- Inside Diameter (D) in mm

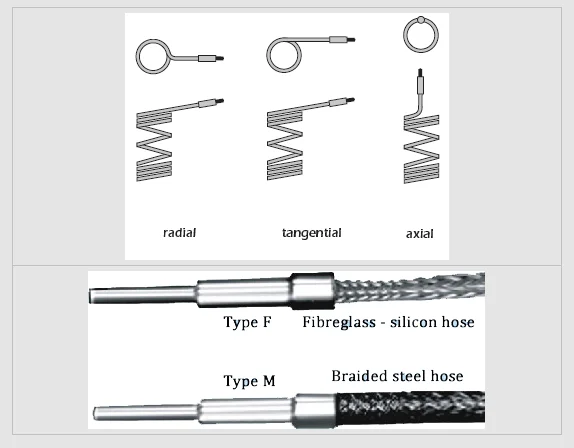

- Leads Orientation.
- Leads Protection.
- Spiral Length (L) in mm
- Wattage / Voltage Of Heater.
- OD and cross section of Heater.
- With or without thermocouple
Packaging | As per your Requirement |
Shipping | As per your Requirement |
With the mindset of adherence to quality standards, Anupam Heaters is the 1st Indian Heater Manufacturing company to undergo audit for Quality Management System by Lloyd's Register and achieved certification under ISO 9001-2000. Currently certified under ISO 9001-2008, we take great pride to inform that our products are also meeting the European Safety Standard EN60335-1 “CE-Mark”.
Company History
Established in 1984 & Pioneers in developing Ceramic Band Heaters in India, Today we are one of the leading Indian companies to manufacture wide range of quality Heating elements for Plastic & Other Allied Industries. Since our inception, we have established a strong foothold in the Indian & Overseas market.
