Help CenterElectric Regular Micro Coil Heaters
US$ 25 - 75
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Hot Runner Heater
Power Source:
Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
Mumbai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Coil Heaters for Hot RunnersUS$ 25 - 75MOQ: 1 Piece -
Stainless Steel Coil HeaterUS$ 25 - 75MOQ: 1 Piece
-
Electric Coil Heating ElementUS$ 25 - 75MOQ: 1 Piece
-
Anupam High Quality 10/14/16/18/20mm Enail Coil HeaterUS$ 25 - 75MOQ: 1 Piece
-
Encased Coil Heater for Dnail 110V 200wUS$ 25 - 75MOQ: 1 Piece
Condition
New
Type
Other, Hot Runner Heater
Power Source
Electric
Place of Origin
Maharashtra, India
Brand Name
Anupam
Model Number
Customized
Dimension(L*W*H)
Customized
Weight
As per Dimensions
Voltage
Customized
Power(W)
Customized
Certification
CE Certification Available
Warranty
One Year Against Manufacturing Defects
After-sales Service Provided
No overseas service provided
Product Description

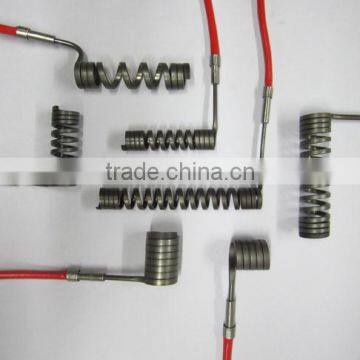

Electric regular micro coil heaters
Description:
Anupam's Micro Tubular Heaters are manufactured in round, square or rectangular section to guarantee the greatest thermal exchange keeping an excellent efficiency and a good reliability.
These heaters can be manufactured with built in thermocouple J or K type.
Standard Cross Sections (mm) :
Round : 3.3 , 4
Square : 3 x 3 , 4 x 4
Rectangle : 2.2 x 4.2 , 4 x 6 , 4.6 x 8.6
More Sizes available on request
Available in coiled or straight form
Applications:
- For heating the nozzles of Injection Molding Machines.
- Thin Walled Container Moulds.
- Hot Runner Nozzles & Bushings.
- PET Preformed Moulds.
- Packaging industry.
- Welding bars.
- Rolls' heating.
- Disks' heating.
- Plates' heating.
Features:
- A very wide contact surface results in exceptionally high levels of thermal conductivity towards the body that needs to be heated.
- Optimal insulation results in very long life duration.
- Heavy-duty construction results in very high resistance to mechanical shocks.
- Operation temperature up to 750°C (1300°F).
- Optional built-in thermocouple for high-resolution temperature measuring (J-type standard; K-type on request)
Specifications:
- Voltage : Upto 250V
- Watt Density : Max. 15 W/sq. cm or 100 W/sq. inch
- Section : 3.3 , 4 , 3 x 3 , 4 x 4 , 2.2 x 4.2 , 4 x 6 , 4.6 x 8.6
- Surface Temp. : Max. 750° C / 1380° F
- Thermocouple : Available with inbuilt J or K type
- High Voltage Test (Cold) : 800V (AC)
- Insulation Resistance (Cold) : ≥ 5MΩ
- Leakage current (Cold) : ≤ 0.5mA for 250V AC
- Diameter Tolerance : ± 0.15mm
- Length Tolerance : ± 5%
- Wattage Tolerance : ± 10%
Exit types :
