High performance customized Hot Runner Nozzles Micro Coil Heater

Name: High performance customized Hot Runner Nozzles Micro Coil Heater
Brand: Anupam
Availability: InStock

FOB Price

USD $25 - $75 / Piece

1 Piece(Min.Order)

Supply Ability 2000 Piece / Pieces per Month
Port Mumbai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Hot Runner Heater
Power Source	Electric	Place of Origin	Maharashtra, India
Brand Name	Anupam	Model Number	Customized
Dimension(LWH)	Customized	Weight	As per Dimensions
Voltage	Customized	Power(W)	Customized
Certification	CE Certification Available	Warranty	One Year Against Manufacturing Defects
After-sales Service Provided	No overseas service provided

Product Description

High performance customized Hot Runner NozzlesMicro Coil Heater

Description:

Anupam's Micro Tubular Heaters are manufactured in round, square or rectangular section to guarantee the greatest thermal exchange keeping an excellent efficiency and a good reliability.
These heaters can be manufactured with built in thermocouple J or K type.

Standard Cross Sections (mm) :

Round : 3.3 , 4

Square : 3 x 3 , 4 x 4

Rectangle : 2.2 x 4.2 , 4 x 6 , 4.6 x 8.6

More Sizes available on request

Available in coiled or straight form

Applications:

For heating the nozzles of Injection Molding Machines.
Thin Walled Container Moulds.
Hot Runner Nozzles & Bushings.
PET Preformed Moulds.
Packaging industry.
Welding bars.
Rolls' heating.
Disks' heating.
Plates' heating.

Features:

A very wide contact surface results in exceptionally high levels of thermal conductivity towards the body that needs to be heated.
Optimal insulation results in very long life duration.
Heavy-duty construction results in very high resistance to mechanical shocks.
Operation temperature up to 750°C (1300°F).
Optional built-in thermocouple for high-resolution temperature measuring (J-type standard; K-type on request)

Specifications:

Voltage : Upto 250V
Watt Density : Max. 15 W/sq. cm or 100 W/sq. inch
Section : 3.3 , 4 , 3 x 3 , 4 x 4 , 2.2 x 4.2 , 4 x 6 , 4.6 x 8.6
Surface Temp. : Max. 750° C / 1380° F
Thermocouple : Available with inbuilt J or K type
High Voltage Test (Cold) : 800V (AC)
Insulation Resistance (Cold) : ≥ 5MΩ
Leakage current (Cold) : ≤ 0.5mA for 250V AC
Diameter Tolerance : ± 0.15mm
Length Tolerance : ± 5%
Wattage Tolerance : ± 10%

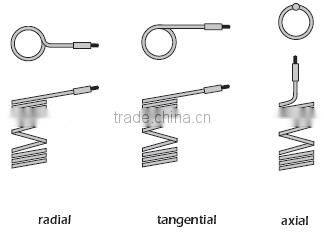

Exit types :
