Help CenterBlower Double Inlet
US$ 10 - 300
MOQ: 1 Piece
Key Specifications
Get Latest Price
Electric Current Type:
AC
Blade Material:
Other, galvanized steel
Mounting:
Free Standing
Payment & Shipping
Payment Methods:
Port of Shipment:
MUMBAI PORT
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Electric Current Type
AC
Blade Material
Other, galvanized steel
Mounting
Free Standing
Brand Name
Anupam
Model Number
Anupam
Power
20 to 350 W
Voltage
110, 220, 440 V AC (50/60 Hz.)
Air Volume
175 to 1200 m3/hr
Certification
CE
After-sales Service Provided
No overseas service provided
Product Description
Anupam's Blowers normally use forward curved impellers made of galvanized steel, which are press fitted on the Rotor of External Rotor Motor, making the unit compact. Single inlet signifies that the Air is drawn from one side of the Blower only. The Rotor with impeller is dynamically Balanced in two planes, for vibration free running during its entire life. The assembly of Motor and Impeller is essentially mounted in a technically designed Housing for optimum performance. The External Rotor Motor is cooled with the air stream flowing over it.
Applications
- Cooling of Band heaters .
- Fan Coil Units in HVAC applications.
- Air Balloons as an advertising media.
- Applications with relatively high static pressure at the outlet and low noise.
- Lift Cabin applications.
Features
Blowers Range From :
- Impeller Diam. : 125 to 240 mm
- Air Flow : 175 to 1200 m3/hr.
- Input Voltage : 110, 220, 440 V AC (50/60 Hz.)
- Power Input : 20 to 350 W
Note : Motor used with CE Mark and confirms to EN 60335-1 standards.

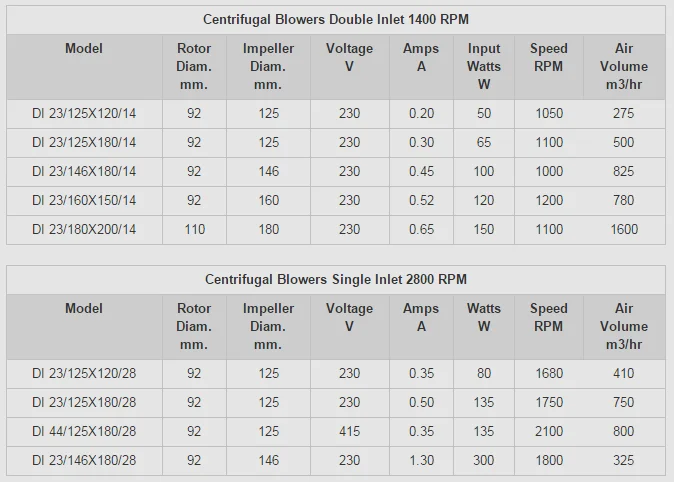

| Model | Imp. Dim. | A | B | C | D | E | F | G | H | J |
| DI*/125X120*/H | 125 X 120 | 146 | 67 | 183 | 105 | 168 | 88 | 146 | 175 | 170 |
| DI*/125X180*/H | 125 X 180 | 215 | 68 | 254 | 110 | 238 | 92 | 215 | 178 | 180 |
| DI*/146X180*/H | 146 X 180 | 232 | 102 | 270 | 140 | 254 | 126 | 232 | 206 | 220 |
| DI*/160X150*/H | 160 X 150 | 176 | 105 | 216 | 145 | 168 | 125 | 176 | 226 | 240 |
| DI*/180X180*/H | 180 X 200 | 260 | 135 | 310 | 185 | * | * | 260 | 280 | 300 |
Technican Specification
Packaging & Shipping
| Packaging | As per your Requirement |
| Shipping | As per your Requirement |
Company Information
Company Certification
With the mindset of adherence to quality standards, Anupam Heaters is the 1st Indian Heater Manufacturing company to undergo audit for Quality Management System by Lloyd's Register and achieved certification under ISO 9001-2000. Currently certified under ISO 9001-2008, we take great pride to inform that our products are also meeting the European Safety Standard EN60335-1 “CE-Mark”.
Company History
Established in 1984 & Pioneers in developing Ceramic Band Heaters in India, Today we are one of the leading Indian companies to manufacture wide range of quality Heating elements for Plastic & Other Allied Industries. Since our inception, we have established a strong foothold in the Indian & Overseas market.
With the mindset of adherence to quality standards, Anupam Heaters is the 1st Indian Heater Manufacturing company to undergo audit for Quality Management System by Lloyd's Register and achieved certification under ISO 9001-2000. Currently certified under ISO 9001-2008, we take great pride to inform that our products are also meeting the European Safety Standard EN60335-1 “CE-Mark”.
Company History
Established in 1984 & Pioneers in developing Ceramic Band Heaters in India, Today we are one of the leading Indian companies to manufacture wide range of quality Heating elements for Plastic & Other Allied Industries. Since our inception, we have established a strong foothold in the Indian & Overseas market.
