Home > Products > New Products > FF 180 12v Permanent Magnet DC Motor With Micro Planetary Gearbox

FF 180 12v Permanent Magnet DC Motor With Micro Planetary Gearbox

FOB Price

US$ 10 - 15 / Piece

500 Pieces(Min. Order)

Port Shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	DONGHUI
Model Number	DPG22-180	Usage	Home Appliance
Certification	ROHS	Type	Gear Motor
Torque	1024g.cm, 1024g.cm	Construction	Permanent Magnet
Commutation	Brush	Protect Feature	Totally Enclosed
Speed(RPM)	51rpm	Continuous Current(A)	48mA
Output Power	0.4W	Voltage(V)	12V
Efficiency	IE 1

Product Description

22mm dc planetary gear brush motor

Specifications:

22MM Planetary Gear Motor,DPG22-180
1.Rated Voltage:1.5-24V
2.Speed:2-3500RPM
3.Can be equipped with encoder
4.High power
tal brush

6.Reduction Ratio1/4,1/5,1/16,1/19,1/29,1/62,1/84,1/104,1/231,1/316,

1/370,1/455 ....1/2418

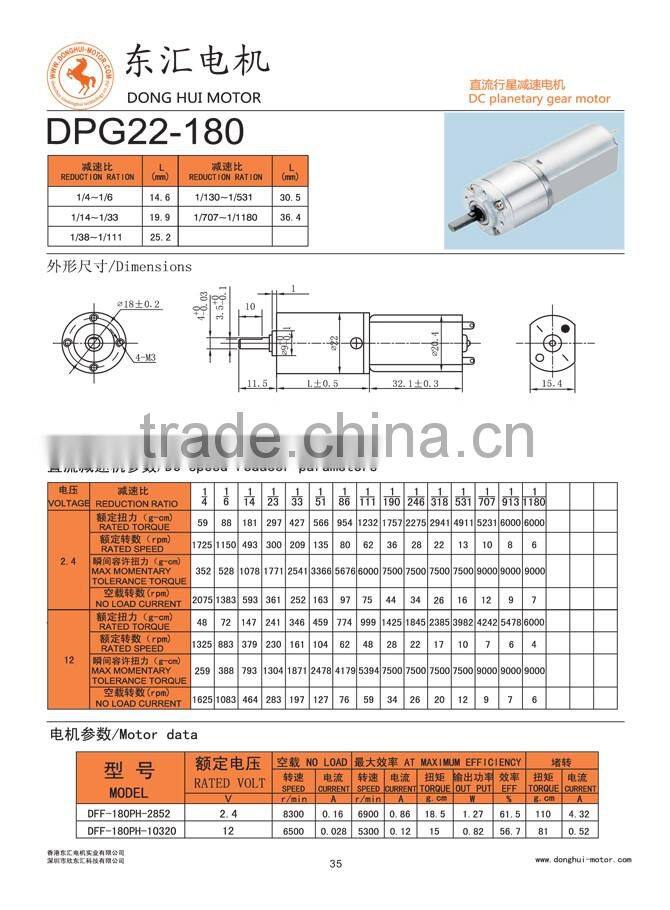

Performance of 22mm dc planetary gear brush motor:

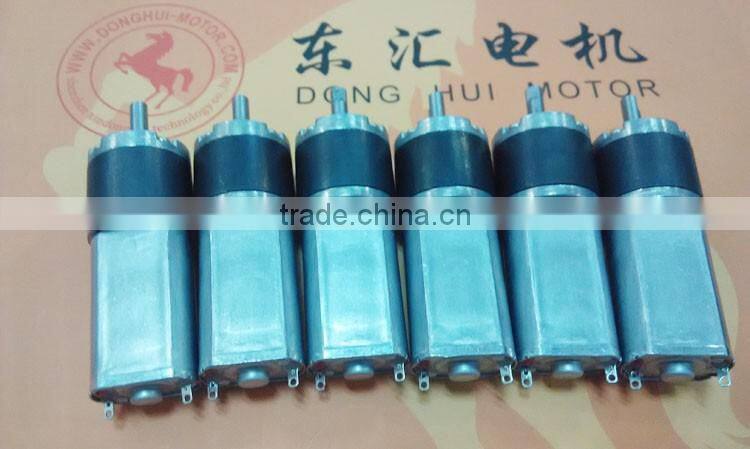

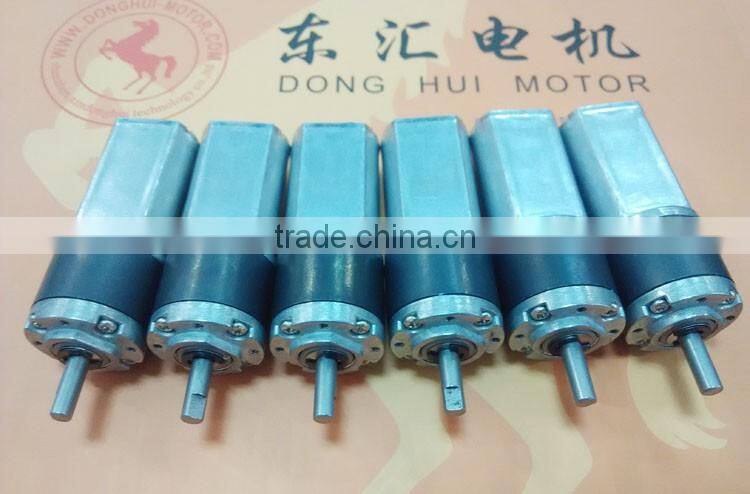

Photo of 22mm dc planetary gear brush motor:

Application of 22mm dc planetary gear brush motor:

Factory Show:

Since Dong Hui Motor established in 2003, has been committed to the development and production of micro motor, including 4 major product series: Micro DC motor, DC gear motor, coreless motor, brushless motor. All products are widely used in consumer electronics, electric toys, household appliances, home appliance,office automation equipment, medical equipment, power tools, automotive and other fields.

Our Payment and Delivery terms

FAQ

Question 1: What's your main products?

Answer: Dia10~52mm DC Micro Motor and Gear Motor,Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor,Spur Gear motor, Micro Motor, Vibration motor etc.

Question 2: What's the main usage of the micro dc gear motor?

Answer:Our motor widely used in Home Appliance,Office Equipment,Health-care appliance,Sanitation industry, High-class toy,Banking System,Electronic and electrical tools,automation industry, bank equipments,payment equipments,vending machines,power door lock,electric door lock.

Question 3: Do you accept customize?

Answer:Sure,as we have a strong design team,any problems will get our technical answer.

Question 4: What kind of data do i neet to provide if i want to order?

Answer:Please kindly tell us your voltage,speed,torque and overall dimension.

Question 5: What if i don't know the above data?

Answer:Please contact our saleman to handle,we'll answer your questions patiently.

Contact information

We only sale the top-quality item, we can provide the reasonable price since we have fight with the supplier as a lowest cost as we can. Please feel free contact us if any needs and questions about the dc motor.

Contact person: Mr David Lu

Hong Kong Dong Hui Motor Industrial Co.,Ltd
Shen Zhen Xin Dong Hui Technology Co.,ltd
ADDRESS: NO 4-8 Chuangxin Road,Shang Liao Industrial Zone,Shajing Town, Baoan District,Shenzhen City,Guangdong Province,China
ZIPCODE:518125
TEL:86-755-23318858
FAX:86-755-29541286
Wechat Number: 15323827570
