Specifications
1.Carbon Brush2.3000rpm No load Speed
3.RoHS,CE Certification
4.Permanent Magnet
Specifications
1.Carbon Brush
2.3000rpm No load Speed
3.RoHS,CE Certification
4.Permanent Magnet
12V DC Vibration Motor Low Noise
.MEASURING CONDITIONS
1.1.Rated voltage: 12 V DC
1.2.Motor Position: To be measured with motor horizontally held.
1.3.Environmental temperature: 25±10°C.
1.4.Environmental humidity: 65%±20%RH.
2.ELECTRICAL CHARACTERISTICS (At initial stage after 30 seconds run-in):
2.1.At No load
2.1.1.Speed: 3000 ±10% rpm
2.1.2.Current: 0.063 A(max 0.13 A)
2.2.At Max Efficiency
2.2.1.Torque: 29.5 g.cm
2.2.2.Speed: 2115 ±10% rpm
2.2.3.Current: 0.15 A(max 0.3A)
2.3.At Stall
2.3.1.Torque: 100 g.cm
2.3.2.Current: 0.36 A(max 0.6A)
2.4.Direction of Rotation: CCW ( Counter-Clockwise when viewing from the output shaft end with positive voltage applied to positive terminal.
3.MECHANICAL CHARACTERISTICS

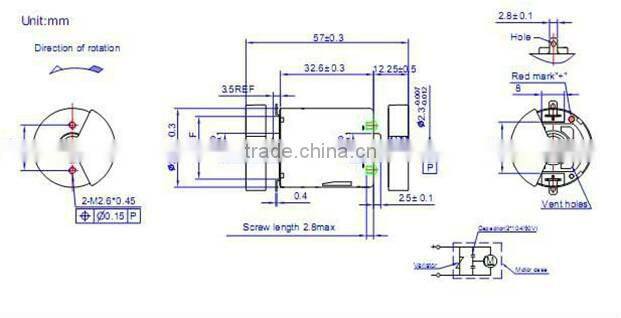

3.1.Dimension drawing: See<OUTLINE>.
3.2.End Play: 0.35mm MAX.
3.3.Class F magnetwire: EMI filter: 2caps and 1varistor
3.4.Operating Temperature: -10°C ~ +60°C.
