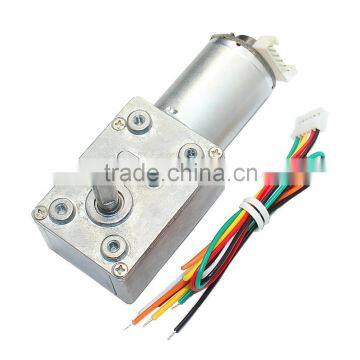

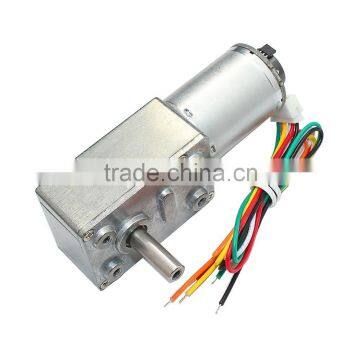

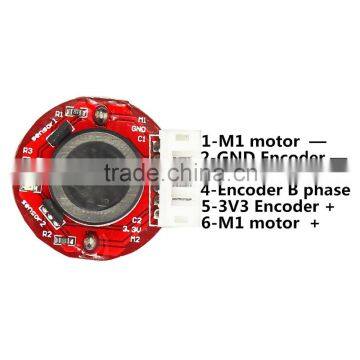

12v 10 Rpm Right Angle dc Worm Gear Motor With Encoder

12v 10 Rpm Right Angle dc Worm Gear Motor With Encoder thumbnail-1
12v 10 Rpm Right Angle dc Worm Gear Motor With Encoder thumbnail-2
12v 10 Rpm Right Angle dc Worm Gear Motor With Encoder thumbnail-3
12v 10 Rpm Right Angle dc Worm Gear Motor With Encoder thumbnail-4
12v 10 Rpm Right Angle dc Worm Gear Motor With Encoder photo-1
12v 10 Rpm Right Angle dc Worm Gear Motor With Encoder photo-2
12v 10 Rpm Right Angle dc Worm Gear Motor With Encoder photo-3
12v 10 Rpm Right Angle dc Worm Gear Motor With Encoder photo-4
US$ 8.68 - 15 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
DH Motor
Model Number:
12v 10 rpm right angle dc worm gear motor with encoder
Contact Supplier Request Quote Chat Now
Shenzhen Xin Dong Hui Motor Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name DH Motor
Model Number 12v 10 rpm right angle dc worm gear motor with encoder
Usage Boat, Car, Electric Bicycle
Certification CCC, CE, ROHS
Type Other, 12v 10 rpm right angle dc worm gear motor with encoder
Torque High Torque
Construction Permanent Magnet
Commutation Brush
Protect Feature Drip-proof
Speed(RPM) 10 rpm
Continuous Current(A) Current
Output Power TBD
Voltage(V) 12V/24V
Efficiency IE 1
Product Description

1. This is a DC Mini Metal Gear Motor,ideal for making robots and Home Appliance etc.
2. Light weight, high torque and low RPM.
3. Fine craftsmanship,durable,not easy to wear.
4. With excellent stall characteristics,can climb hills easily.
5. You can also easily mount a wheel on the motor’s output shaft.

Product Name
12v 10 rpm right angle dc worm gear motor with encoder
Rate Voltage
12v 24v
Rate Speed
10 RPM
Size
Diameter 32 mm, Length 76 mm
Reduction Ration 1
1/37~1/972, 12v DC Gear Box, 324rpm~12rpm
Reduction Ration 2
1/37~1/972, 24v DC Gear Box, 160rpm~6rpm
Application
Robot, Home Appliance, Wiper
Customized
Yes, Adjust the performance at free(voltage,speed,torque,ECT.)

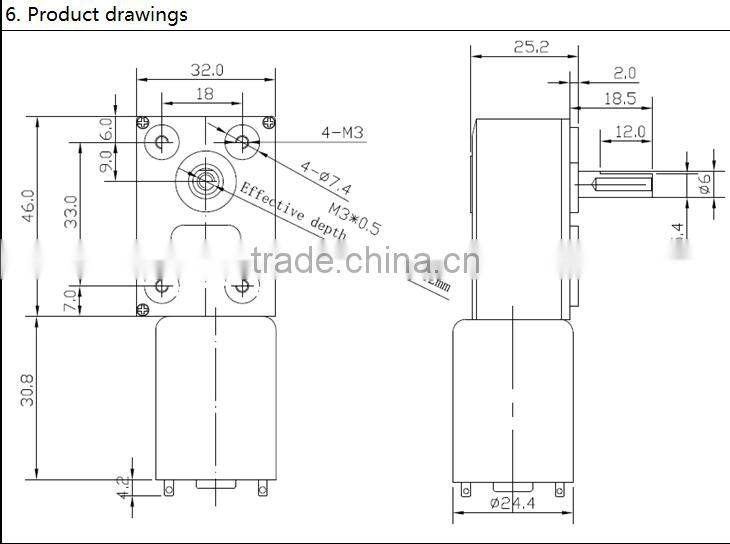

Size and Specs
Products show
Our Company

Factory

Our Factory

Workshop

Our Workshop

FAQ

Q:What's your main products?

A: Dia6~52mm DC Micro Motor and Gear Motor,Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor,Spur Gear motor, Micro Motor, Vibration motor etc

Q: What's the main usage of the micro dc gear motor?

A: Our motor widely used in Home Appliance,Office Equipment,Health-care appliance,Sanitation industry, High-class toy,Banking System,Electronic and electrical tools,automation industry, bank equipments,payment equipments,vending machines,power door lock,electric door lock.

Q: What kind of data do i neet to provide if i want to order?

A: Please kindly tell us your voltage,speed,torque and overall dimension.

Q: Do you accept customize?

A: Sure,as we have a strong design team,any problems will get our technical answer.
