Home > Electrical & Electronics > Electric Motor > DC Motor > Auto DC Motor 6V 12V 24 V for Side Mirror/Door Lock/Damper Actuator FK-260SA

Auto DC Motor 6V 12V 24 V for Side Mirror/Door Lock/Damper Actuator FK-260SA

Name: Auto DC Motor 6V 12V 24 V for Side Mirror/Door Lock/Damper Actuator FK-260SA
Brand: DH Motor
SKU: 112074717
Availability: InStock

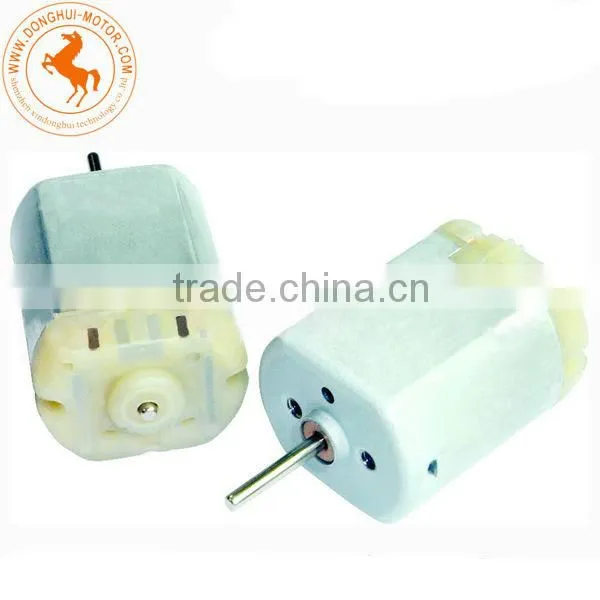

Auto DC Motor 6V 12V 24 V for Side Mirror/Door Lock/Damper Actuator FK-260SA thumbnail-1

Auto DC Motor 6V 12V 24 V for Side Mirror/Door Lock/Damper Actuator FK-260SA photo-1

US$ 1.5 - 3.5 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

DH Motor

Model Number:

Auto DC Motor 6V 12V 24 V for Side Mirror/Door Lock FK-260SA

Contact Supplier Request Quote Chat Now

Shenzhen Xin Dong Hui Motor Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shen Zhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name DH Motor

Model Number Auto DC Motor 6V 12V 24 V for Side Mirror/Door Lock FK-260SA

Usage Boat, Car, Electric Bicycle, Fan, Home Appliance

Certification CCC, ROHS, Other, CCC, ROHS, ISO/TS16949:2008

Type Micro Motor

Torque 7.9 G.cm

Construction Permanent Magnet

Commutation Brush

Protect Feature Drip-proof

Speed(RPM) 6000-9000RPM

Continuous Current(A) 5.05, 5.05

Output Power 41.7, 41.7W

Voltage(V) 24v

Efficiency IE 1

Specifications

Auto DC Motor 6V 12V 24 V for Side Mirror/Door Lock/Damper Actuator FK-260SA
1.Auto DC Motor
2.High power,low noisy
3.Carbon

Auto DC Motor 6V 12V 24 V for Side Mirror/Door Lock FK-260SA

1.12v/24v Auto DC Motor 6V 12V 24 V for Side Mirror/Door Lock FK-260SA

2.Voltage: 12V,24V,18V,36V 48 volt DC

3.Rated Speed: 999rpm ~ 9000rpm
4.Rated Power up to Auto DC Motor 6V 12V 24 V for Side Mirror/Door Lock FK-260SA
5.dc motor for toy car Dimension: dia. 21.0 x 25.3 L.

6.shaft O.D. 2.0 mm

7.On load performance :
Input current :1.5A
Input power:98W
speed :2000r/min
Torque:200g.cm
8.High quality with best price

Basic Structure: Zinc coated steel housing / Zinc coated steel end cap
Application:Pan/tilt camera, Auto DC Motor 6V 12V 24 V for Side Mirror/Door Lock FK-260SA, Auto DC Motor 6V 12V 24 V for Side Mirror/Door Lock FK-260SA, Auto DC Motor 6V 12V 24 V for Side Mirror/Door Lock FK-260SA, Hair curl motor, hair trim motor,12V dc motor FC-260,auto shutter, welding machines, water meter, IC card, grill, oven, cleaning machine, garbage disposers, household appliances, slot machines, money detector, toy car,automatic actuator,pump and RC model .

Weight: Approx. 35g

Our factory of Auto DC Motor 6V 12V 24 V for Side Mirror/Door Lock FK-260SA

Production flow of Auto DC Motor 6V 12V 24 V for Side Mirror/Door Lock FK-260SA

Test Equipment of Auto DC Motor 6V 12V 24 V for Side Mirror/Door Lock FK-260SA

Auto DC Motor 6V 12V 24 V for Side Mirror/Door Lock FK-260SA

Drawing of Auto DC Motor 6V 12V 24 V for Side Mirror/Door Lock FK-260SA

1.MEASURING CONDITIONS
          1.1.Rated voltage: 12 V DC
          1.2.Motor Position:                                To be measured with motor horizontally held.
          1.3.Environmental temperature:25±10°C.
          1.4.Environmental humidity:65%±20%RH.
2.ELECTRICAL CHARACTERISTICS (At initial stage after 30 seconds run-in):
          2.1.At No load
                2.1.1.Speed: 16000 ±10% rpm
                2.1.2.Current:                               0.23 A(max   0.4A)

          2.2.At Max Efficiency
                2.2.1.Torque:                                128.3 g.cm
                2.2.2.Speed:                                 8558 ±10% rpm
                2.2.3.Current:                               1.37 A(max   2.7A)

          2.3.At Stall
                2.3.1.Torque:                                890 g.cm
                2.3.2.Current:                               8.1 A(max   12.15A)

2.4.Direction of Rotation: CCW (Counter-Clockwise when viewing from the output shaft end
with positive voltage applied to positive terminal.

3.MECHANICAL CHARACTERISTICS
          3.1.Dimension drawing:     See<OUTLINE>.
          3.2.End Play:0.05~0.55mm
          3.3.Operating Temperature:    -10°C ~ +60°C

Hong Kong Dong Hui Motor Industrial Co.,Ltd.

Shen Zhen Xin Dong Hui Motor Technology Co.,Ltd.

Contact Person: Dylan

Tel: 86-755-27228606

Fax: 86-755-29541286

Mobile:86-18682260827

Skype: dylan-2011

Http://

High quality, reasonable price and excellent after-sales service,please contact us immidiately.

The specification is just for your reference.

We can make the customized dc gear motor according to customers' requirements.
