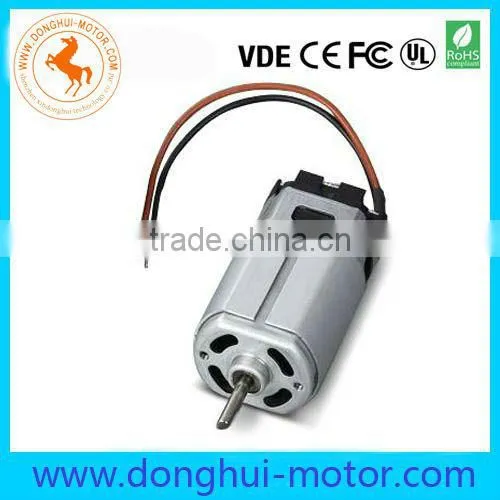

Help CenterPermanent Magnet DC Motor (FS-550SA)
Negotiable
MOQ: 5000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DONG HUI
Model Number:
FS-550SA
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen zhen or Hong kong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12V Micro Motor (FC-130RA) for South Africa Goverment Electric Valve Water MeterNegotiableMOQ: 10000 Pieces -
220V DC AC Electric Grinder MotorUS$ 2.95 - 5MOQ: 5000 Pieces
-
3.7V DC Micro Motor for Blood Pressure Pump and MeterUS$ 1.5 - 3.5MOQ: 1000 Pieces
-
400rpm DC Micro Motor for Blood Pressure Pump and MeterUS$ 1.5 - 3.5MOQ: 1000 Pieces
-
12V DC Micro Motor Door Lock Actuator and Electric Shaver FF-N20 Quality ChoiceUS$ 1.5 - 3.5MOQ: 1000 Pieces
Place of Origin
Guangdong, China
Brand Name
DONG HUI
Model Number
FS-550SA
Usage
Home Appliance
Certification
CCC, CE, ROHS, UL, VDE, Other, CCC, CE, ROHS, UL, VDE, ISO:9001:2000
Torque
358g.cm
Construction
Permanent Magnet
Commutation
Brush
Speed(RPM)
12850r/min no load
Continuous Current(A)
0.8A no load
Output Power
41.12W
Voltage(V)
12
Efficiency
IE 1
Specifications
Permanent Magnet DC motor FS-5501.OUTPUT: 41.12W
2.WEIGHT: 220g(APPROX)
3.TYPICAL APPLICATION:SWEEPER,WINDOW LIFTER
Specifications
Permanent Magnet DC motor FS-550
1.OUTPUT: 41.12W
2.WEIGHT: 220g(APPROX)
3.TYPICAL APPLICATION:SWEEPER,WINDOW LIFTER
Permanent Magnet DC Motor FS-550A series:

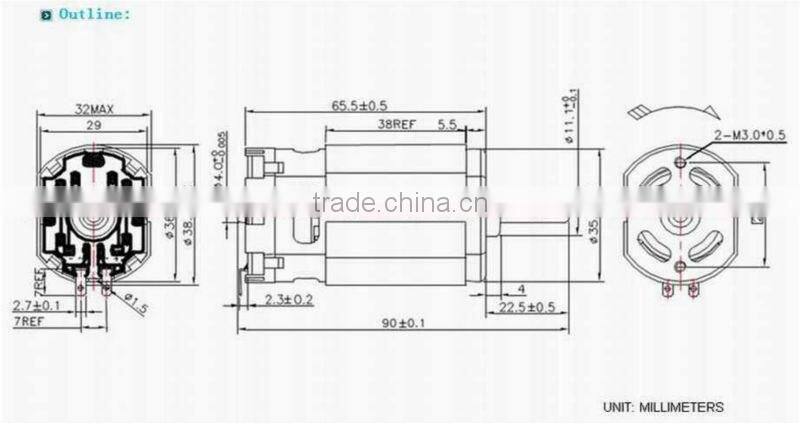

1.Dimension Parts:
--Outline diameter:36.0mm,Length:65.5mm,Height:29mm
--Shaft diameter:4.0mm
--Exposed Shaft Length can be regulated

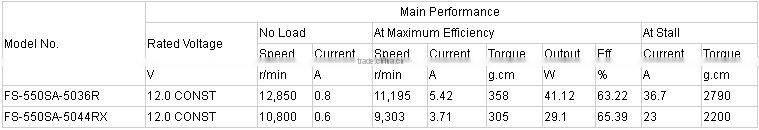

2.Technical Characteristics(Only for reference,we are capable of meeting the sourcing needs of diverse buyer)
3.Production flow:
4.Contact information :
Mr David Lu
Hong Kong Dong Hui Motor Industrial Co.,Ltd
Shen Zhen Xin Dong Hui Technology Co.,ltd
TEL:86-755-23318858
FAX:86-755-29541286
M B:86-15323827570
Skype:xdh120301
