12V DC Central Door Locking Motor

12V DC Central Door Locking Motor thumbnail-1
12V DC Central Door Locking Motor photo-1
Negotiable MOQ: 10000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DONG HUI
Model Number:
FT-280SA-18170
Contact Supplier Request Quote Chat Now
Shenzhen Xin Dong Hui Motor Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shen Zhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name DONG HUI
Model Number FT-280SA-18170
Usage Car, Other, Car, central door locking motor,Car Rearview Mirror,Lock Actuator
Certification ROHS, Other, ROHS, ISO:9001:2000
Type Micro Motor
Torque 35.6g.cm
Construction Permanent Magnet
Commutation Brush
Speed(RPM) 11700rpm
Continuous Current(A) 0.07A
Output Power 3.85W
Voltage(V) 12V

Specifications

Specifications
12V DC Auto Motor for Car Rearview Mirror,Lock Actuator
1.Carbon Brush
2.Size:D24.3*H18.3*L30.5mm
3.Knurling

12V DC Automotive Motor for Car Retractable Rearview Mirror / Door Lock Actuator / Steering Lock(FT-280SA-18170).

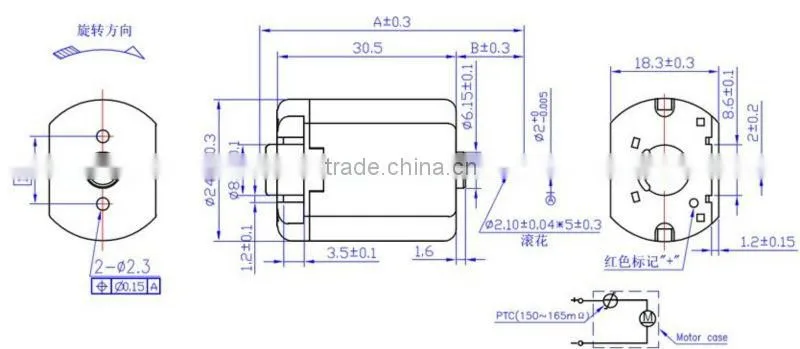

DIMENSION DRAWING:

12V DC central door locking motor



Note:

     1. Shaft length can be custom made.

     2. EMI supression, knurling shaft for option.



TECHNICAL DATA:

Rated Voltage:            12.0V

No load speed:           11700rpm

No load current:          0.07A

At max efficiency:

Speed:                        10082rpm

Current:                       0.44A

Torque:                       35.6g.cm

At stall:

Torque:                       255g.cm

Current:                       2.7A





Remark:The above technical datas are only for reference,we can customerize them according to different requirements after evaluation.







Typical Applications:Retractable Rearview Mirror / Door Lock Actuator / Steering Lock

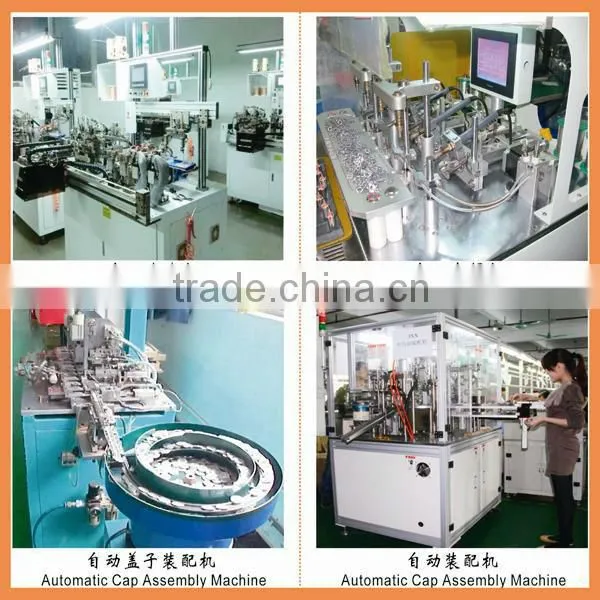

PRODUCTION FLOW:

Contact information :
Mr David Lu
Hong Kong Dong Hui Motor Industrial Co.,Ltd
Shenzhen Xindonghui Technology Co.,Ltd
Shen Zhen Xin Dong Hui Technology Co.,ltd
TEL:86-755-23318858
FAX:86-755-29541286
M B:86-15323827570
Skype:xdh120301
