Specifications

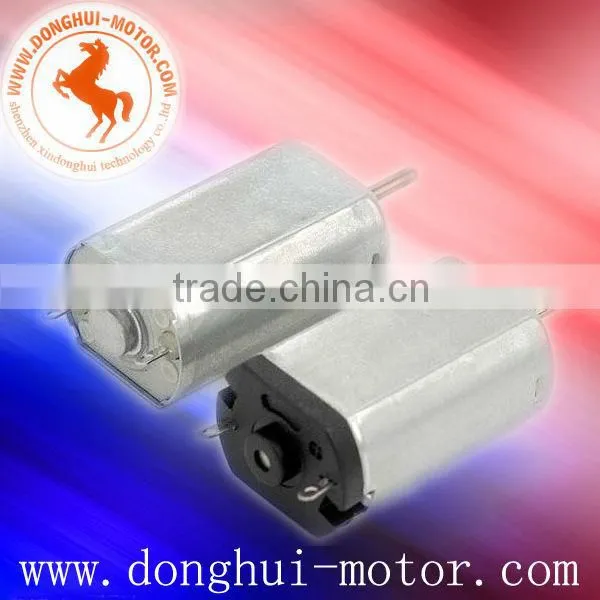

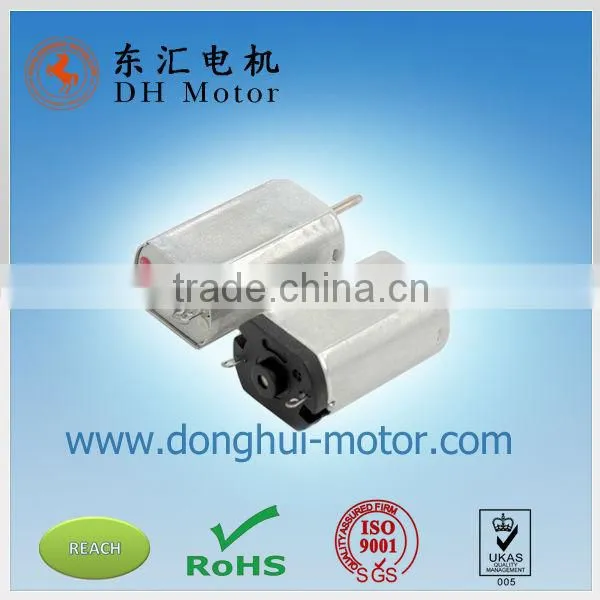

1.Dia20.4*L32.11mm housing2.Permanent magnet Motor
3.OEM, Customized offered
4.ISO 9001/RoHS Certificate
Application in: Razor,Motor Toothbrush,Aviation Aerial Models and so on.
Specification:
Note: It's only the typical technical data for reference, Other specification are also can customized.
Weclome inquiry more details.
Factory show :
1.MEASURING CONDITIONS
1.1.Rated voltage: 12 V DC
1.2.Motor Position: To be measured with motor horizontally held.
1.3.Environmental temperature:25±10°C.
1.4.Environmental humidity:65%±20%RH.
2.ELECTRICAL CHARACTERISTICS (At initial stage after 30 seconds run-in):
2.1.At No load
2.1.1.Speed: 16000 ±10% rpm
2.1.2.Current: 0.23 A(max 0.4A)
2.2.At Max Efficiency
2.2.1.Torque: 128.3 g.cm
2.2.2.Speed: 8558 ±10% rpm
2.2.3.Current: 1.37 A(max 2.7A)
2.3.At Stall
2.3.1.Torque: 890 g.cm
2.3.2.Current: 8.1 A(max 12.15A)
2.4.Direction of Rotation: CCW (Counter-Clockwise when viewing from the output shaft end
with positive voltage applied to positive terminal.
3.MECHANICAL CHARACTERISTICS
3.1.Dimension drawing: See<OUTLINE>.
3.2.End Play:0.05~0.55mm
3.3.Operating Temperature: -10°C ~ +60°C
